Simplicity 1695295 Installation Instructions

Installation
Instructions
1
2
3

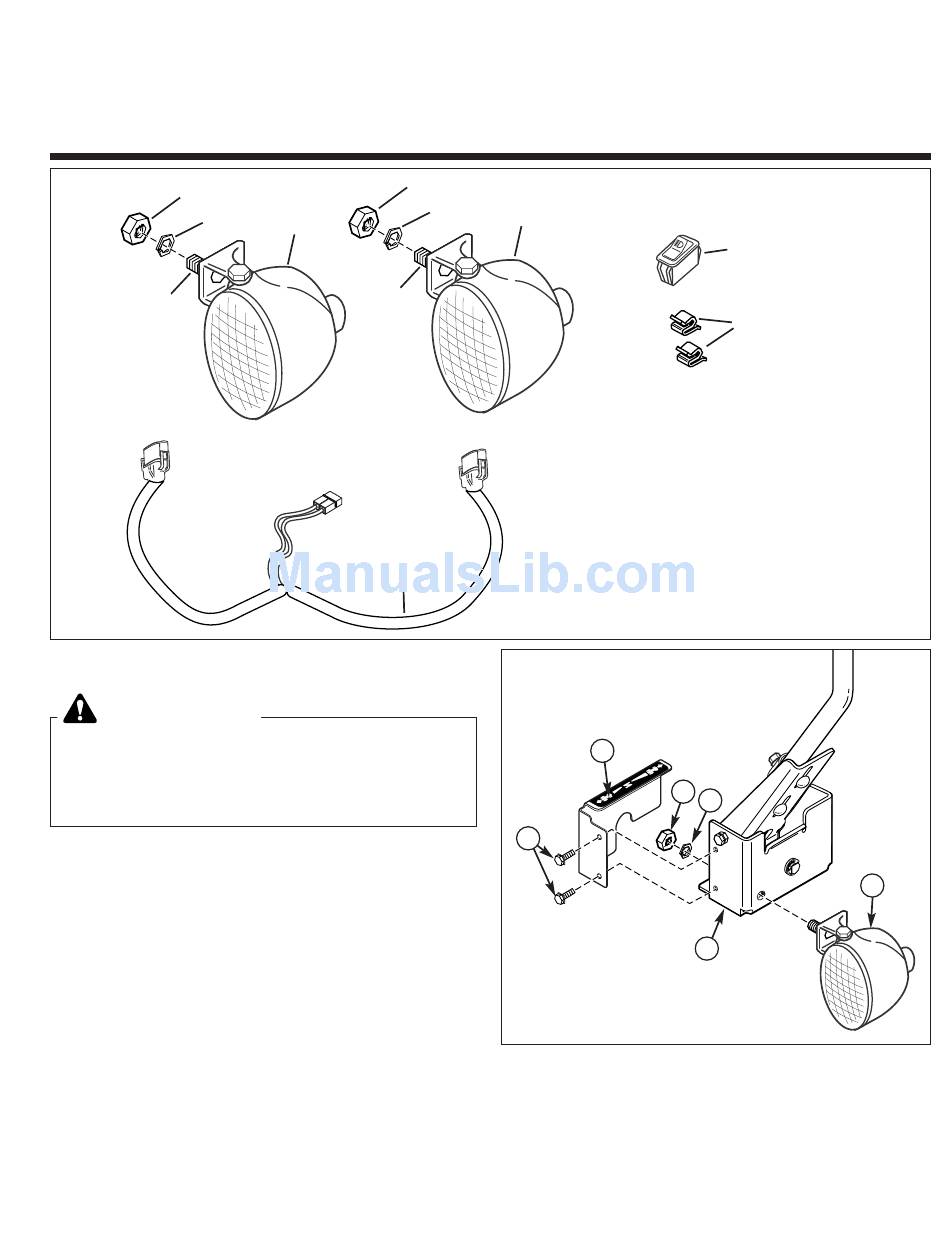

Figure 1. Contents
WARNING
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
remove the key, and disconnect the spark plug
wire(s).
INSTALLATION
1. Remove 1/4-20 x 5/8 capscrews (A, Figure 2) and
cover (B).
2. Install light assembly (F) and secure with 5/16 lock-
washer (D) and 5/16-18 nut (C).
3. Reinstall cover (B) and secure with 1/4-20 capscrews
(A).
4. Repeat steps 1 through 3 for other side of unit.
1
2
4
3
7
For Axion and 150Z Zero Turn Models
4
Kit Contents:
Ref. Part No. Qty.
1 N/A
2 N/A
3 N/A
4 1726801
5 1716951
6 2172434
7 1726796
B
A
Figure 2. Light Installation
A. Capscrews, 1/4-20 x 5/8
B. Cover
C. Nut, 5/16-18
D. Lockwasher, 5/16
E. Bracket
F. Light Assembly
1
Light Kit
Part No. 1695295
5
6
Description
2 NUT, Hex, 5/16-18
2 LOCKWASHER, 5/16
2 CARRIAGE BOLT, 5/16-18 x 1
2 HEADLIGHT ASSEMBLY,
(Includes Ref. Nos. 1, 2, & 3)
1 SWITCH, Headlight
2 CLIP, Wire
1 HARNESS, Wire
C
D
E
F
