Jabra Pro 920 Mono How Do

How do I connect my Jabra wireless headset with the Jabra
Link 14201-36 to my Alcatel desk phone so I have remote call
control using my headset?

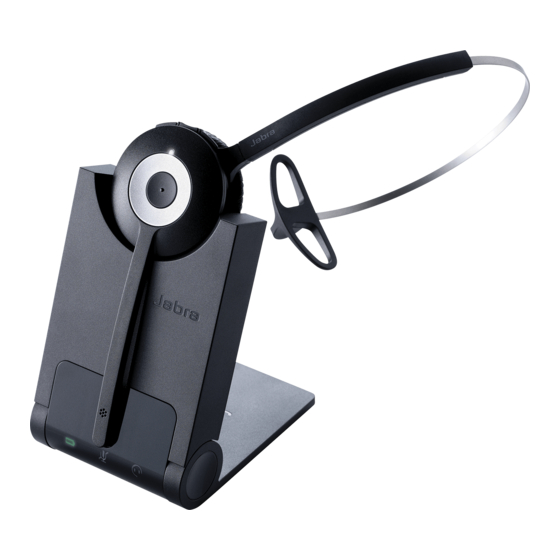

Jabra Pro 920 Mono

Connection:

1. Connect the AC adapter that is supplied with the headset to the
headset base. Connect the other end to an electrical outlet.
2. Connect the Jabra Link 14201-36 EHS double-ended cable (red band) to
the AUX interface on the headset base. Connect the modular jack plug
with the blue band to the headset base socket that is marked with a
phone icon.
3. Connect the Jabra Link 14201-36 EHS cable 3.5mm phone connector
into the headset interface on the desk phone.
4. Connect the Jabra Link 14201-36 EHS cable RJ12 connector into the
socket by the bell icon on the desk phone. The remaining socket on the
Jabra Link 14201-36 EHS cable remains empty.

Configuration:

1. Ensure the headset function on the desk phone is enabled. Refer to your
phone or IT support for assistance.
2. Follow the setup instructions for your Jabra wireless headset. If the
headset base requires manual configuration, set the Electronic Hook
