How do I connect my Jabra wireless headset with the Jabra

Link 14201-35 to my Avaya desk phone so I have remote call

control using my headset?

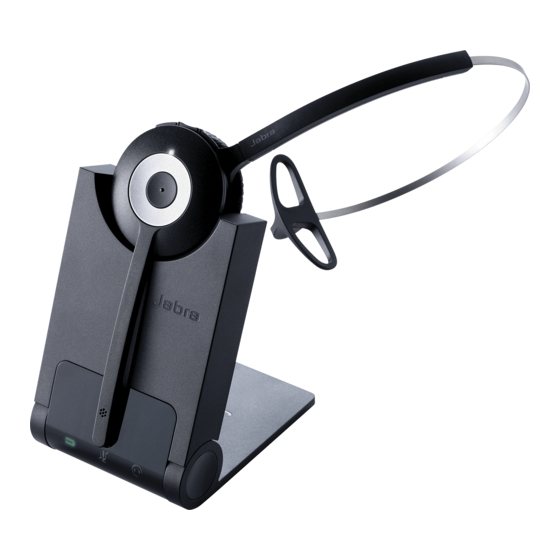

Jabra Pro 920 Mono

Connection:

1. Disconnect the network cable of the phone.

2. Connect the AC adapter that is supplied with the headset to the

headset base. Connect the other end to an electrical outlet.

3. Connect the modular plug cable that is supplied with the headset to the

Jabra Link 14201-35 EHS adapter in the socket marked with a phone

icon. Connect the cable end with the blue band to the headset base

socket that is marked with a phone icon.

4. Connect the Jabra Link 14201-35 EHS adapter cable end with the white

band to the Jabra Link 14201-35 EHS adapter port marked with a white

handset/headset icon. Connect the other end to the headset interface

on the Avaya phone.

5. Connect the Jabra Link 14201-35 EHS 2.5 mm ring sensor to the Jabra

Link 14201-35 EHS adapter in the bell socket. Position the circular ring

sensor over the speaker of the desk phone.

6. Connect the Jabra Link 14201-35 EHS cable with the red band to the

AUX interface on the headset base. Connect the other end to the AUX

interface on the Jabra Link 14201-35 EHS.

https://www.jabra.com.au/supportpages/jabra-pro-920/920-25-508-103/faq/3dd31ea1-

f6a5-4a3a-8b94-8a252b4b6e80

05/04/2021 09:29

Page 1 of 2

Table of Contents

Do you have a question about the Pro 920 Mono and is the answer not in the manual?

Page 1 Connect the other end to the headset interface on the Avaya phone. 5. Connect the Jabra Link 14201-35 EHS 2.5 mm ring sensor to the Jabra Link 14201-35 EHS adapter in the bell socket. Position the circular ring sensor over the speaker of the desk phone.
Page 2 Configuration: 1. Ensure the EHS headset function on the desk phone is enabled. 2. Follow the setup instructions for your Jabra wireless headset. If the headset base requires manual configuration, set the electronic hook switch setting to “DHSG” and set the dial tone switch to position “A”.
