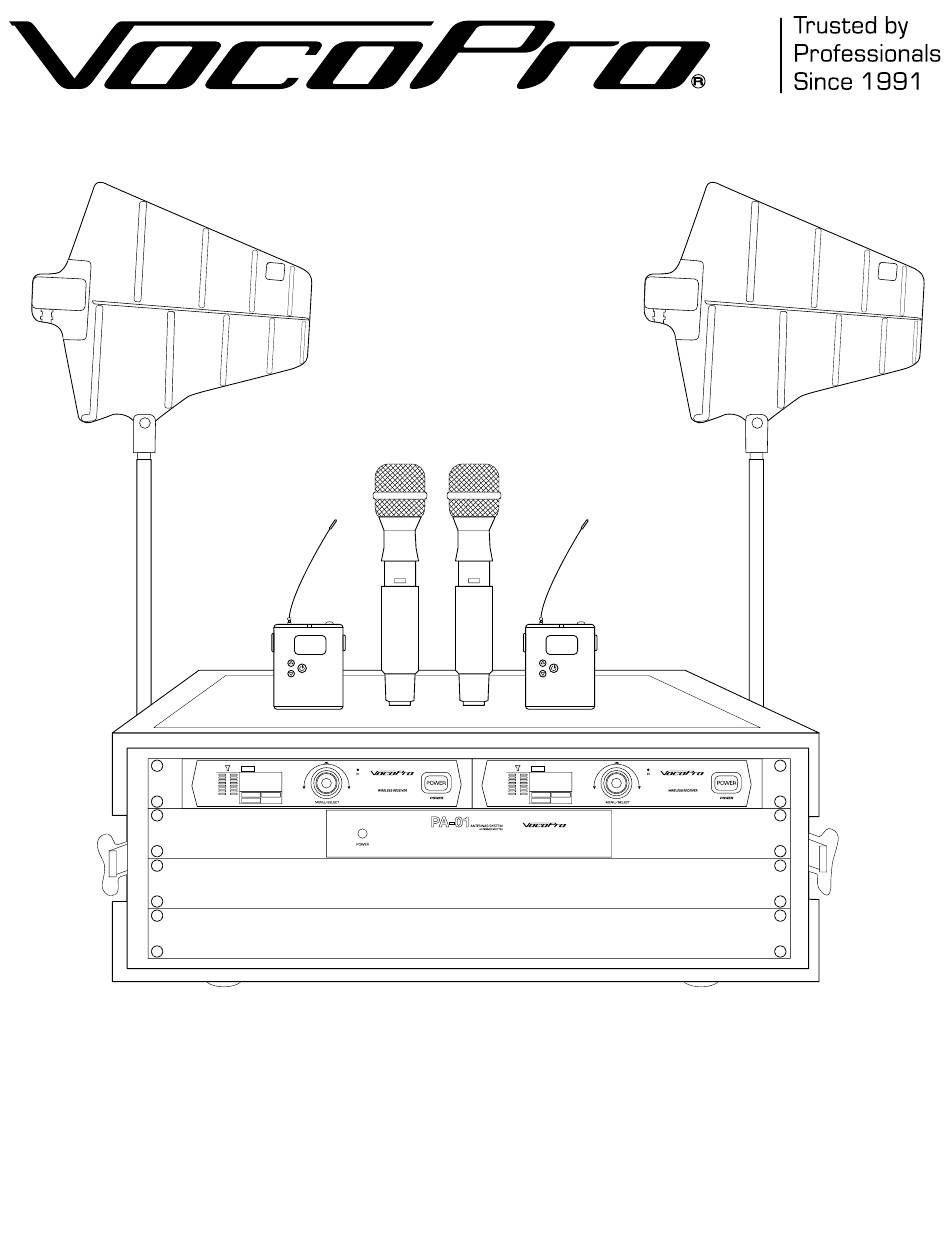

- Page 1 Benchmark Touring Grade Diverisity Wireless System with Antenna Distribution System and Active Directional Antennas OWNER’S MANUAL...
-
Page 2: Legal Disclaimer
VocoPro hereby disclaims any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product. -
Page 3: Listening For A Lifetime
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 4: Safety Instructions
Safety Instructions 10. Power Sources - The appliance should be connected to CAUTION a power supply only of the type described in the operating instructions or as marked on the appliance. RISK OF SHOCK 11. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. -
Page 5: Fcc Information
If these corrective measures do not produce satisfactory interference is observed. results, please contact your local retailer authorized to distribute Vocopro products. If you can not locate the NOTE: Please check the copyright laws in your country appropriate retailer, please contact Vocopro, before recording from records, compact discs, radio, 1728 Curtiss Court, La Verne, CA 91750. -
Page 6: What's In The Box
3. Active Directional Antenna 915.250 BenchMark-RX WIRELESS RECEIVER 4. Beltpack Transmitter POWER H P F O F F RF AF MENU/SELECT *Depends on Package (Benchmark-Dual/Quad-BP only) 5. HandheldTransmitter BenchMark-RX MUTE 100% MUTE 100% *Depends on Package (Benchmark-Dual/Quad-HH only) DIRECTIONAL ANTENNA... - Page 7 Features • Touring grade true diversity wireless microphone system. • 600ft. range (line of sight) when used with antenna distribution system and active directional antennas. • Operates in 900MHz band, away from TV, radio, and Wifi interference. • Color display shows frequency, reception, and battery status. •...
-
Page 8: Receiver Front
470-980MHz 0dB +10dB Receiver Front MUTE 100% F R E Q 915.250 BenchMark-RX WIRELESS RECEIVER POWER H P F O F F RF AF MENU/SELECT 1. Power Button- Hold button to turn the receiver on and off. Press once to exit the menu. - Page 9 915.250 Functions/Controls H P F O F F RF AF Receiver Main Screen 1. Anetnna Connection Status - Shows which antenna has a stronger connection from the transmitter. 2. Mute - Will display if the transmitter is muted. 3. Battery Indicator - Shows the current battery life of the transmitter.
-
Page 10: Receiver Menu Options
Functions/Controls BenchMark-RX POWER-IN BALANCED UNBALANCED ANTENNA B ANTENNA A Receiver Menu Options DC:15V/600mA Menu Menu Group Number Press the Menu/Select knob once to access the menu. Group Channel Squelch Turn the knob to highlight the option you want. Press the... -
Page 11: Handheld Microphone Transmitter
3. △Up - Press to move menu selection up 4. ▽Down - Press to move menu selection down 5. ● Select - Press to enter menu, to select menu BenchMark-HT option, and to confirm selection. 6. IR Sensor - Receives IR signal from the receiver during syncing. -
Page 12: Belt Pack Transmitter
WIRELESS SYSTEM WIRELESS SYSTEM WIRELESS SYSTEM 1. OLED Display - Shows mic number, mic information, and BenchMark-HT menu options. 2. △ - Press to move selection up. BenchMark-HT 3. ○ - Hold to turn the pack on and off. Press to cycle BenchMark-HT through menu options. - Page 13 MUTE 100% MUTE 100% Functions/Controls F REQ F R EQ 646.950 646.950 BenchMark-RX BenchMark-RX BenchMark-AD WIRELESS RECEIVER WIRELESS RECEIVER H P F O F F H P F O F F POWER POWER N A M E 0 0 1...
- Page 14 Low Cut LOCK / UNLOCK WIRELESS SYSTEM IR set Back BenchMark-HT Installing the Receivers and Antenna Distributor into the Flight Case MUTE / ON LOCK / UNLOCK • To install the receivers into the included flight case, you MUTE / ON LOCK / UNLOCK will first need to remove the feet from the receiver.
-
Page 15: Specifications
Specifications System Operating range: 600 ft. line of sight AF response: 20Hz – 18KHz T.H.D.: <1% (@AF1 KHz, RF46 dBu) Dynamic range >100dB S/N ratio: >90dB Pilot Frequency: 32.768KHz Receiver AF output level: Unbalanced +9dBu/ Balanced +9dBu AF output impedance: Unbalanced 810 Ohms/ Balanced 240 Ohms Sensitivity: -100dBm/ 30dB sinad Operation voltage: 12V-15V... -
Page 16: Troubleshooting/Faq
Troubleshooting/FAQ Pairing the Microphones The Antenna Distributor is not powering on. In order for the receiver to receive signal from the Check to see that the power adapter is getting power. transmitter they must be set to the exact same The blue light on the adapter will indicate it is getting frequency. - Page 17 Notes / 17...
- Page 18 Please do not return to the retailer if you are having a technical issue operating or connecting the unit. If you need additional help, have questions, or need support with your VocoPro product contact us: Toll Free: 800-678-5348 TEL: 909-593-8893...
