Note: Illustrations are for
reference only. Certain
models may differ.

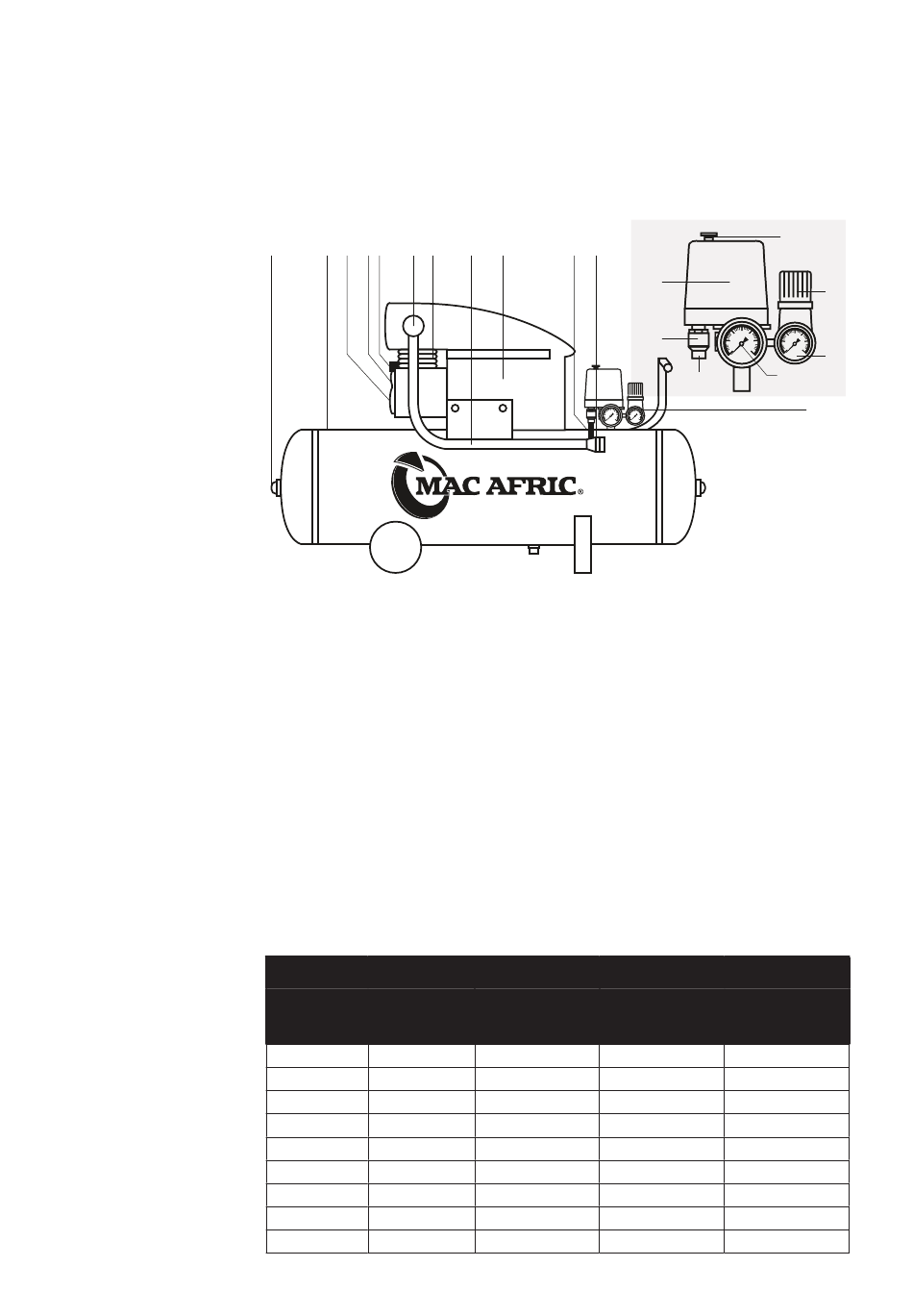

GENERAL ARRANGEMENT (DIRECT DRIVE MODEL)
1 2 3 4 5 6 7
I. Inspection Plug
2. Air Receiver
3. Oil Drain Plug
4. Oil Level Sight Glass
5. Oil Filler/Breather
6. Air Intake Filter
7. Air Compressor Pump

ELECTRICAL CONNECTIONS

See writing table on the power cable.
SUGGESTED AMP RATINGS
MOTOR SIZE
KW HP
0.75 1.0
1.1 1.5
1.5 2.0
1.8 2.5
2.2 3.0
3.0 4.0
4.0 5.5
5.5 7.5
7.5 10.0
COPYRIGHT ADENDORFF MACHINERY MART
8 9 10 11
12b
12c
Figure 5
8. Air Delivery Pipe
9. Electric Motor
10. Air Bleed Pipe
11. Non-return Valve
12. Pressure Switch
SINGLE PHASE THREE PHASE MOTOR 380-415V
MOTOR D.O.L DOL/phase
13 amp 10 amp
13/15 amp 10 amp
20 amp 10 amp
20 amp
30 amp 16 amp
40 amp 20 amp
25 amp
30 amp
35 amp
AIR COMPRESSORS
DIRECT & BELT DRIVEN MANUALS
12a
12g
12f
12e
12d
12
Illustrative purposes only
12a. On/Off Switch
12b. Pressure Switch
12c. Saftey Valve
12d Air Bleed Valve
12e. Receiver Pressure Gauge
12f. Regulator Pressure Gauge
12g. Pressure Regulator
STAR DELTA
(NOT SUPPLIED – Available
from your nearest electrical
outlet)
25 amp
