OUTLET PRESSURE ADJUSTMENTS

PORTABLE COMPRESSORS
1 Pressure adjusting knob
2. Outlet Taps
3. Pressure Gauge
4. Water Drain Valve
TO ADJUST OUTLET PRESSURE
TO INCREASE PRESSURE
Turn knob (1) clockwise.
TO DECREASE PRESSURE
Turn knob 1 (anticlockwise).
OUTLET TAPS
Slide knurled section (2) away from body
to open, push towards body to close.
NOTE: Pressure Gauge (3). ONly aPPlicablE TO
cErTaiN MODElS. Pressure shown will differ by
approximately 1 bar depending on whether the
outlets are open/closed
STATIONARY COMPRESSORS
These machines are not supplied with the facility to adjust outlet pressure.
A comprehensive range of airline accessories is available from your local
Adendorff Branch.
OVERLOAD BUTTON (SINGLE PHASE ONLY) ONly aPPlicablE TO cErTaiN MODElS.
The electric motor is fitted with an automatic overload detector which will stop the
motor if an overload is detected.
If this happens,
I. SWITCH OFF THE PRESSURE
SWITCH (Push knob down or turn
switch). Allow the compressor to
cool down for 5-10 minutes.
II. Press the reset button shown on
the right.
III. Switch on pressure switch
(lift knob or twist switch).
If the overload trips repeatedly, it may indicate a fault with the compressor, in this case you should
COPYRIGHT ADENDORFF MACHINERY MART
2

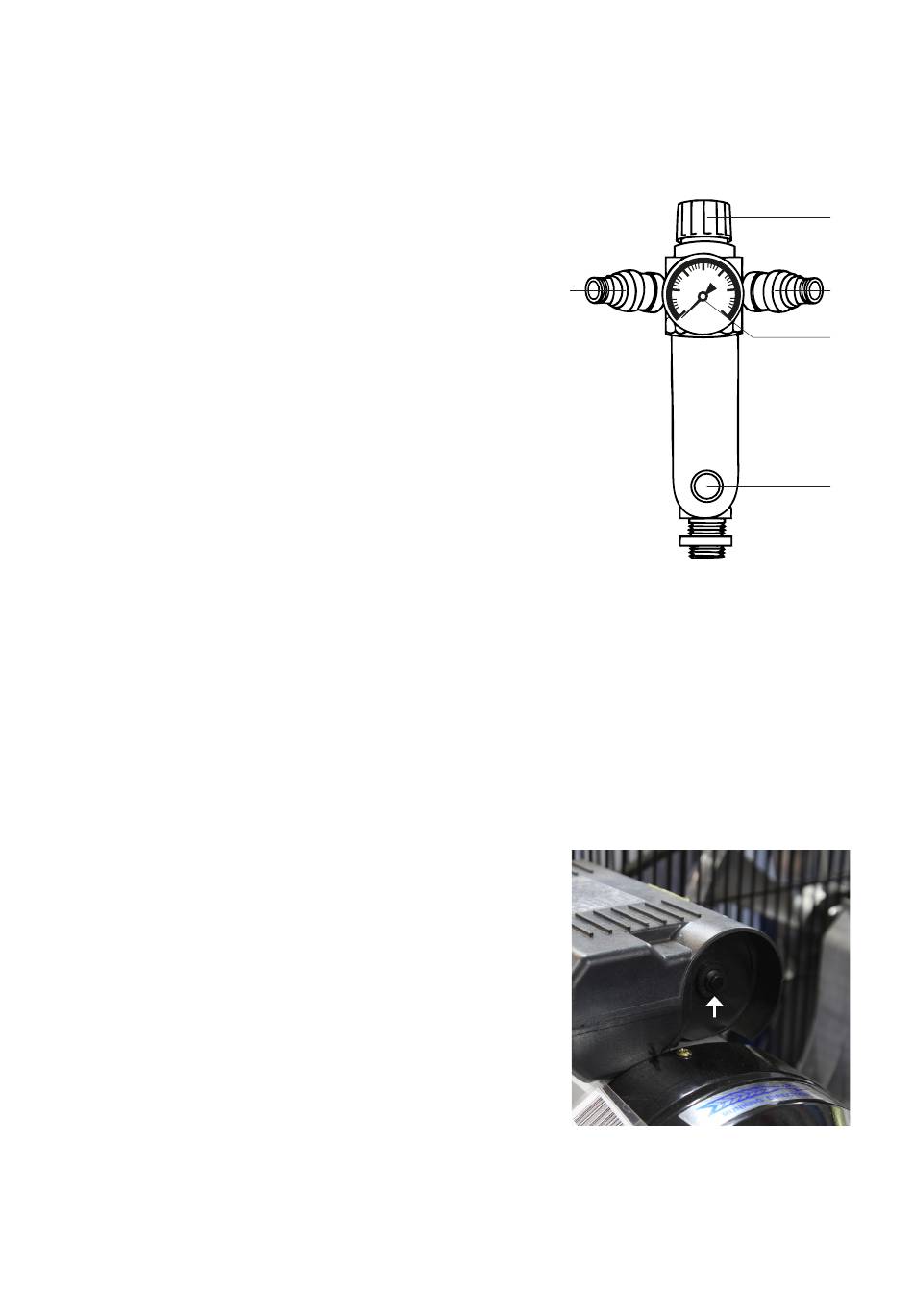

Figure 3
Water Oil Filter and Pressure regulator
only applicable to certain models.
RESET BUTTON
Figure 4
7
1
2
3
4
