ADENDORFF MAC-AFRIC COMPRE-024 Original Operating Instructions page 12

12
Illustrative purposes only

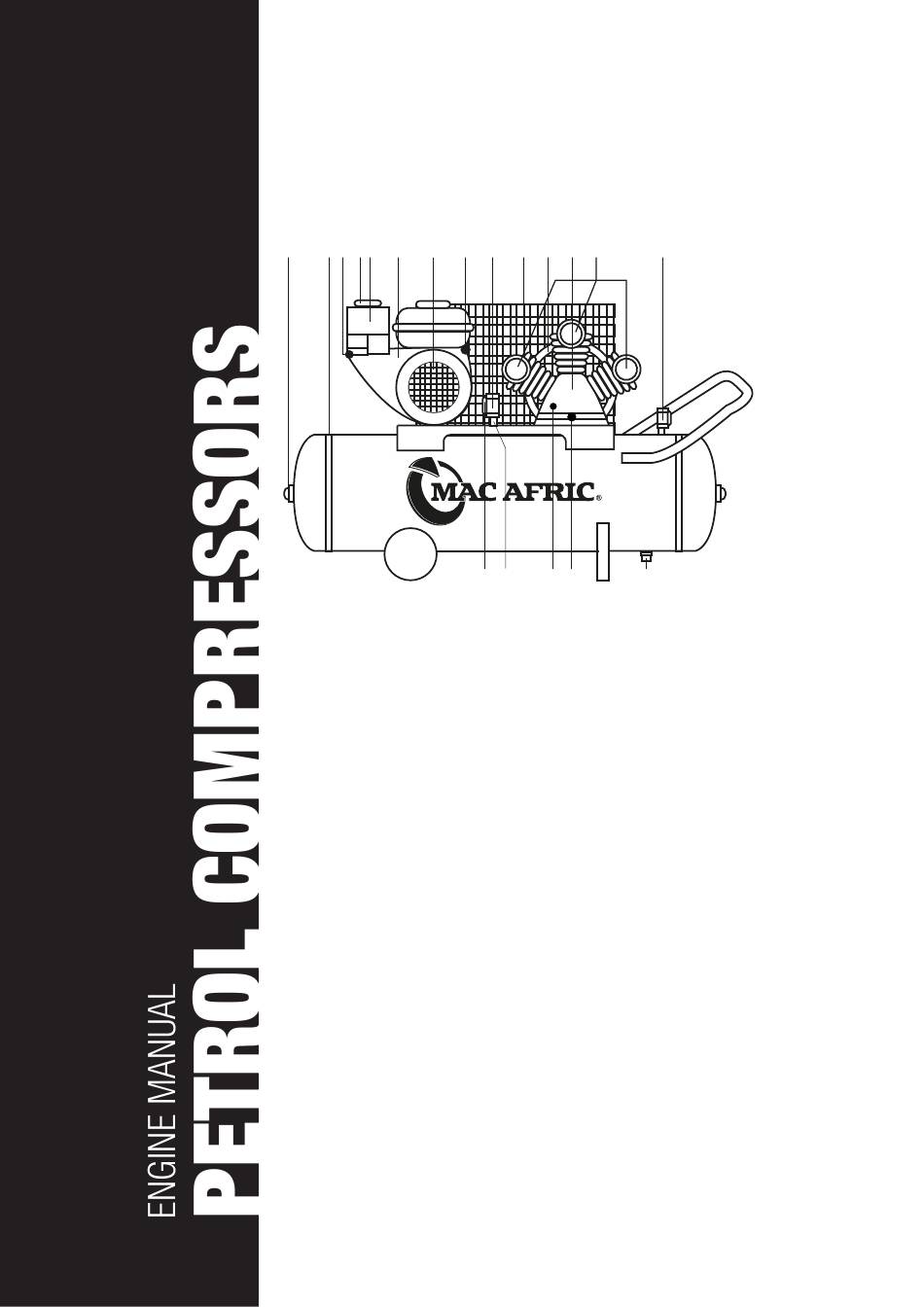

GENERAL ARRANGEMENT (PETROL MODEL)
1 2 3 4 5 6 7
I. Inspection Plug
2. Air Receiver
3. Oil Filler/Breather
4. Exhaust (Motor)
5. Air Filter (Motor)
6. Petrol Motor
7. Pull Start Recoil
Note: Illustrations are for reference only. Certain models may differ.
Periodic maintenance and adjustment is necessary to keep the compressor engine in good operating
condition. Perform the service and inspection at the intervals shown in the Maintenance Schedule on
page 13:
KEY
1. Service more frequently when used in dusty areas.
2. These items should be serviced by an authorised compressor dealer.
3. For professional use, log hours of operation to determine proper
maintenance intervals.
COPYRIGHT ADENDORFF MACHINERY MART
8 9 10 11 12 13
15 16 17 18
Figure 6
8. On/Off Switch
9. Solenoid Valve
10. Wire Guard
11. Air Delivery Pipe
12. Air Compressor Pump 17. Oil Level Sight Glass
13. Air Intake Filter
AIR COMPRESSORS
DIRECT & BELT DRIVEN MANUALS
14
Illustrative purposes only
19
14. Pressure Gauge
15. Non-return Valve
& Automatic Pressure Controller
16. Safety Valve
18. Oil Drain Plug
19. Drain Tap
