ORIGINAL OPERATING INSTRUCTIONS
ORIGINAL OPERATING INSTRUCTIONS
DANGER! Read all safety regulations and instructions.
DANGER! Read all safety regulations and instructions.
Keep all safety regulations and instructions in a safe
Keep all safety regulations and instructions in a safe
place for future use.
place for future use.
Manufacture: Zhejiang Haufeng Electric Tools Co., Ltd.
Address: Xiaoshun Town, Jinhua, Zhejiang 321035, P.R. China
E&OE Please Note that details and specifi cations contained herein, are correct at the time of
publishing. Adendorff reserve the right to change specifi cations at any time without prior notice.
2018
www.adendorff.co.za
COPYRIGHT ADENDORFF MACHINERY MART
Advertisement
Table of Contents
Troubleshooting

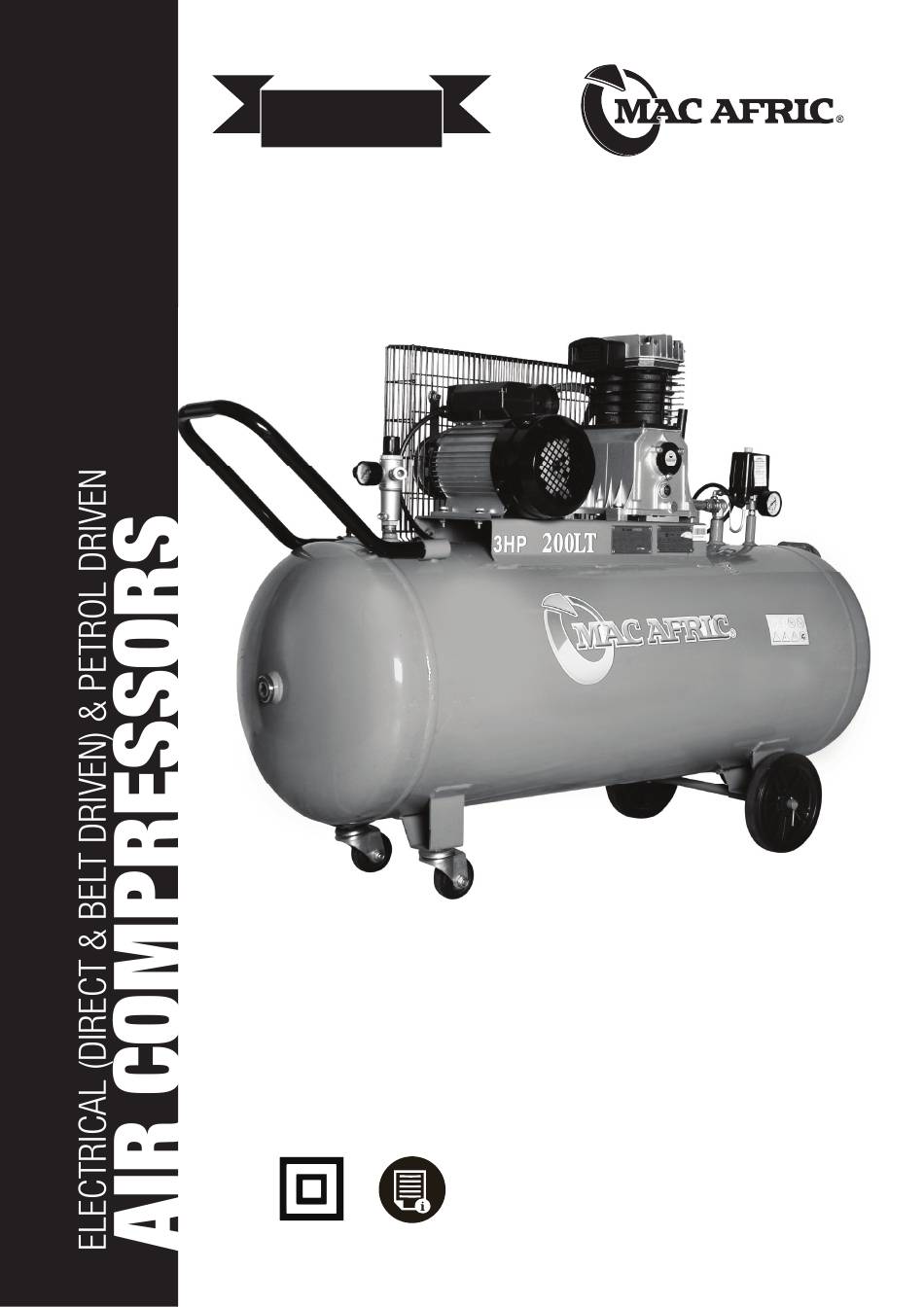

Summary of Contents for ADENDORFF MAC-AFRIC COMPRE-024
- Page 1 Address: Xiaoshun Town, Jinhua, Zhejiang 321035, P.R. China 2018 www.adendorff.co.za E&OE Please Note that details and specifi cations contained herein, are correct at the time of COPYRIGHT ADENDORFF MACHINERY MART publishing. Adendorff reserve the right to change specifi cations at any time without prior notice.
-
Page 2: Safety Precautions
Electrical or mechanical repairs should only be carried out by a qualified electrician/ (VERTICAL) engineer. If you have a problem, please contact your nearest Adendorff branch or alternatively our Head-Office service department on (011) 434 7000 or 0861 233636 Before attempting any repair ensure pressure is expelled from the air receiver and PETROL disconnected from the electricity supply. - Page 3 The product must be returned within 10 days from date of purchase Original invoice to accompany the product. Adendorff Machinery Mart reserves the right to charge a “packaging fee” for items not returned in their original packaging. Refunds, returns, exchange and cancellation policy is in accordance with C.P.A.
-
Page 4: Noise Levels
IMPORTANT TIP – rather plug the compressor at the wall plug on a separate circuit and use longer air-line hose – applicable for single phase 230 V units. Three phase installations should be installed by a qualified electrician directly at the power supply source. COPYRIGHT ADENDORFF MACHINERY MART... -
Page 5: Before Starting Compressor, Check
The valve should close after (see below), vent the system and contact the Adendorff Service Department. several seconds. Should it fail TO STOP COMPRESSOR to close, consult your local Switch off at the pressure switch (push knob down or turn switch). - Page 6 13. Air Bleed Pipe 14e. Air Bleed Pipe Air Intake Filter Drain Tap Note: Illustrations are for reference only. Certain models may differ. LUBRICATION PUMP: Use Adendorff Synthetic Compressor oil. VOLUME MODEL 250 ml COMPRE-024-515-115 300 ml COMPRV-123 450 ml...
-
Page 7: Outlet Pressure Adjustments
3-35 cfm, we offer a vast Outlet Taps range of air tools and airline Pressure Gauge equipment. Please ask your Water Drain Valve local Adendorff outlet for details of our range. TO ADJUST OUTLET PRESSURE TO INCREASE PRESSURE Turn knob (1) clockwise. TO DECREASE PRESSURE Turn knob 1 (anticlockwise). -
Page 8: Electrical Connections
0.75 13 amp 10 amp 13/15 amp 10 amp 20 amp 10 amp 20 amp 30 amp 16 amp 40 amp 20 amp 25 amp 30 amp 10.0 35 amp 25 amp COPYRIGHT ADENDORFF MACHINERY MART... -
Page 9: Maintenance Chart
AIR COMPRESSORS DIRECT & BELT DRIVEN MANUALS contact the Adendorff Service Department. MAINTENANCE TIPS FOR AIR COMPRESSORS • DRAIN THE MOISTURE FROM THE TANK DAILY! • CHECK AND CHANGE THE COMPRESSOR OIL – If you’re running a compressor that uses oil, you should be checking it on a daily basis to make sure that your machine is topped up. You should change you oil every 300-500 hours to ensure maximum functioning of your air compressor. -
Page 10: Troubleshooting Chart
Electric motor too hot: Operational voltage too low Call an electrician Maximum temperature 90°C Faults in electrical installation Contact Adendorff Machinery Cooling fins of electric motor blocked by dirt Clean cooling fins COPYRIGHT ADENDORFF MACHINERY MART... - Page 11 RPM too low because of incorrectly con- Contact Adendorff Machinery nected electric motor Valves blocked by dirt, paint, dust or clogged up Contact Adendorff Machinery Inspection cover or plug leaking Empty air receiver and change seal or contact Adendorff Machinery...
- Page 12 Perform the service and inspection at the intervals shown in the Maintenance Schedule on page 13: Service more frequently when used in dusty areas. These items should be serviced by an authorised compressor dealer. For professional use, log hours of operation to determine proper maintenance intervals. COPYRIGHT ADENDORFF MACHINERY MART...
-
Page 13: General Safety Rules
Never smoke whilst refuelling and avoid smoking or using a naked flame near the generator. Never start the engine if there is spilled fuel. Any spillage must be wiped clean and the generator allowed to dry before attempting to start the engine. COPYRIGHT ADENDORFF MACHINERY MART... -
Page 14: Checking The Engine Oil Level
If the oil level is at or below the “L”mark, on the dipstick, add oil to the crankcase. • Fill until the oil reaches the threads In the oil fill tube. • We recommend the use of SAE30 Oil in this compressor petrol engine (available from your nearest Adendorff.) Replace the oil filter cap. COMPRE-070 & COMPRE-071 Oil Volume 0.6 L UPPER LEVEL COMPRE-705 Oil Volume 1.1 L... -
Page 15: Checking The Fuel Level
Once the engine has warmed up,set the choke lever to the RUN Position WARNING: ONCE THE COMPRESSOR HAS STARTED, RELEASE THE STARTING HANDLE SLOWLY TO AVOID INJURY/DMAGE AS IT RECOILS. SHUTTING DOWN THE COMPRESSOR To stop the compressor in an emergency simply set the engine switch to OFF. COPYRIGHT ADENDORFF MACHINERY MART... -
Page 16: Changing The Engine Oil
• We recommend the use of SAE30 oil in this compressor petrol engine, • available from your Adendorff dealer. Replace the oil filler cap/dipstick. ENVIRONMENTAL PROTECTION ONE OF THE MOST DAMAGING SOURCES OF POLLUTION IS OIL. DO NOT THROW AWAY USED ENGINE OIL IN WITH YOUR DOMESTIC RUBBISH OR POUR IT DOWN DRAIN OR SINKS. -
Page 17: Checking The Air Filter
The compressor engine is The air filter is dirty Clean the air filter difficult to start The fuel filter is blocked Clean the fuel filter If this does not solve your problem, please contact Adendorff Machinery. COPYRIGHT ADENDORFF MACHINERY MART... - Page 18 4 - 8 Framing Nailer 2.5-3 Strait line Sander 4 - 7 Grease Gun Tire Changer High Speed Grinder 8-12 Tire Inflation Hoists, 1 ton Upholstery Stapler (30 psi) Hydraulic Riveter Vacuum Cleaners Hydraulic Lift, 8000lb COPYRIGHT ADENDORFF MACHINERY MART...
- Page 19 The technical documentation required to demonstrate that the product(s) meet(s) the requirement(s) of the aforementioned directive(s) has been compiled and is available for inspection by the relevant enforcement authorities. IMPORTER: Importer’s Name: Adendorff Machinery Mart RSA AIA: RSA Conformity Assessment Body: Intertek Industry Services – PER 004...
