  • Page 1 manual On/Off valve for electrical remote control stepwise working - closed without current®...

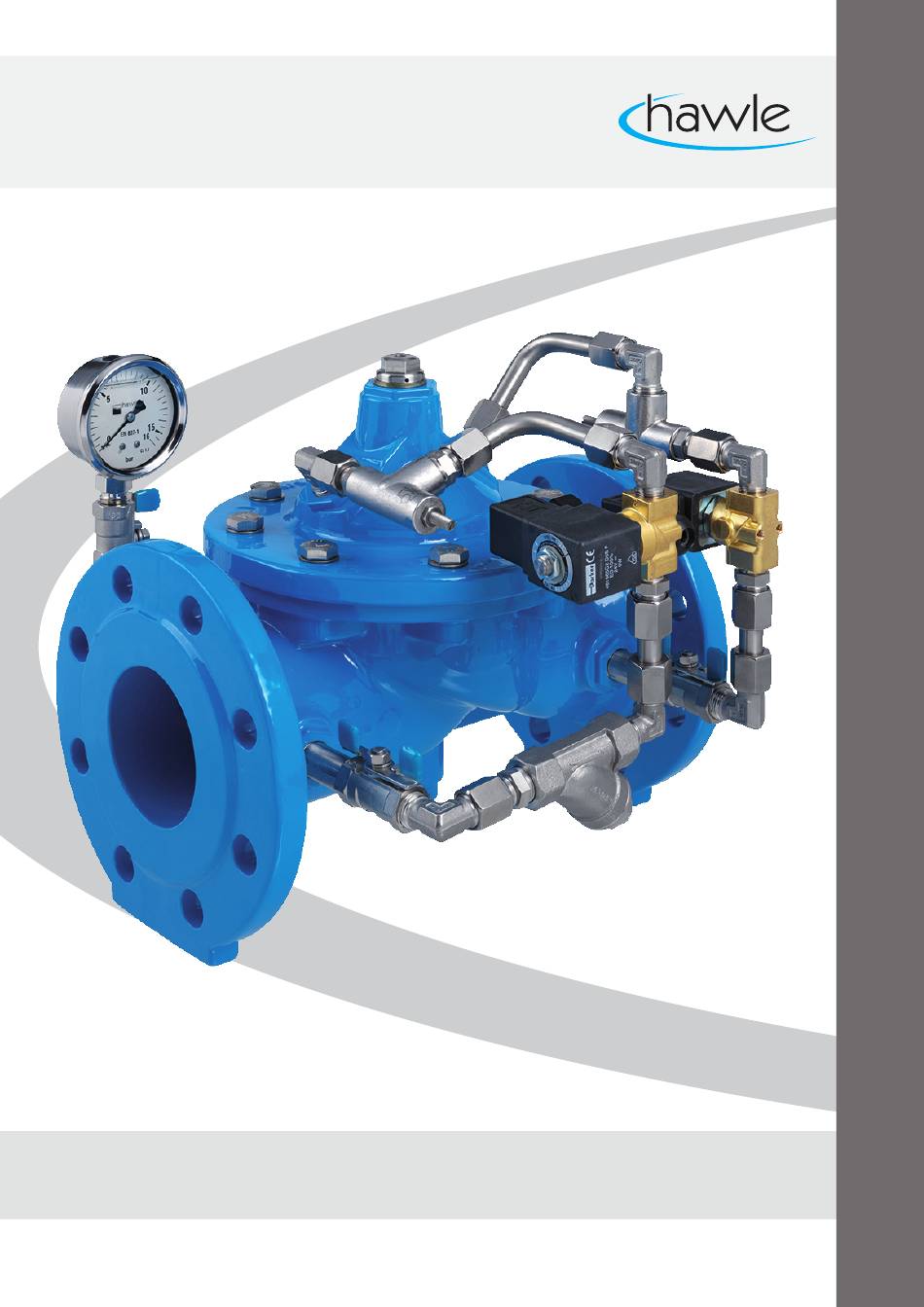

  • Page 2 HAWIDO - REGULATING VALVES Instruction for On/Off valve for electrical actuation works step–by–step – without current – hydraulically closed Type 1795 ND40 - ND200 Keep this instruction manual at the location of the valve!
  • Page 3 Example of rating plate After the commissioning, enter the following data and make use of this additional information regarding the valve type, pressure and flow ratios when consulting the manufacturer or the supplier or asking them questions: ……………… ………………….. Serial number: ...........

  • Page 4: Table Of Contents

    YEAR MAINTENANCE 3. R EPAIR KITS AND SPARE PARTS 3.1 B DN 40 DN 200 ( ASE VALVE DRAWING 3.2 M AIN VALVE ARTS LIST 3.3 C ONTROL LINE INDIVIDUAL PARTS AND ACCESSORIES ANNEX 1. T ORQUES HAWLE IN EUROPE...

  • Page 5: Description

    A. Description Function Note functional diagram on p. 4. The stepwise working on/off valve for electrical control opens or closes hydraulically, as long one of the two electric solenoid valves (5A, 5B) is energised. The HAWIDO – valve (1) remains closed when there is no voltage to the electric solenoid valves.

  • Page 6: General Safety Instructions

    Damage to property and injuries to persons could occur as a result of improper installation, commissioning, operation and maintenance. The Hawle regulating valve (HAWIDO) has been designed for use in drinking water supplies. Other application media only after consultation with the manufacturer.

  • Page 7: Commissioning

    B. Commissioning Functional diagram (1795) Components Main valve 1200 Ball valve (A, B, C) Filter One-way flow restrictor (A, B) Solenoid valve (A, B) Pressure gauge with ball valve Optical position indicator (optional)
Electrical position indicator (optional)
analogue position indicator (optional) Valve opening limiter (optional) Preparatory work Before commissioning the valve, check that the gate valves on the inlet and outlet sides of the valve are closed and that the flange connections have been correctly tightened and sealed.

  • Page 8: Venting

    If the HAWIDO does not operate quietly, or if pressure shocks occur in the supply network, this can be corrected by the corresponding adjustment of the one-way flow restrictor (4A and 4B). Strongly throttled one-way flow restrictors (4A and 4B) permit longer impulse times (contact the Hawle Company for basic settings of impulse and pause lengths).

  • Page 9: Fault Finding

    Loud noise Unfavourable operating Change pressure by approx. 0.1 conditions to 0.2 bar. Slightly open or close the one-way flow restrictor. Contact the Hawle Customer Service department. Wrong valve size Have the correct valve size calculated (contact Hawle) Erratic operation...

  • Page 10: Putting Out Of Service And Maintenance

    D. Putting out of service and maintenance Putting out of service Comment: Electrical work may only be carried out by qualified technical personnel. Power must be removed from the solenoid valves The valve closes. Then: • Slowly close the gate valves before and after the valve •...

  • Page 11: To 5-Year Maintenance

    • Checking the valve • Remove the vent plug or assembled accessories from the valve cover. • Check that the valve spindle moves easily by raising and lowering it with the threaded rod. Special attention must be paid to this test procedure, above all with valves with modified counter seats. Putting back into service •...

  • Page 12: Repair Kits And Spare Parts

    Putting back into service • see Commissioning chapter Functional check of the valve • The function of the valve can be checked by actuating the solenoid valves (according to table in section Principle of operation). Repair kits and spare parts Several replacement parts are required for the 4 or 5 - year service.

  • Page 13: Base Valve Dn 40 To Dn 200 (Drawing)

    -10- 3.1 Base valve DN 40 to DN 200 (drawing) 08.12.2011/plü...

  • Page 14: Main Valve (Parts List)

    -11- 3.2 Main valve (Parts list) Item. Description Material Article number DN 40 DN 50 DN 65 DN 80 DN 100 Body GGG 40 1004 040 000 1004 050 000 1004 065 000 1004 080 000 1004 100 000 Valve cover GGG 40 1014 050 000 1014 050 000...
  • Page 15 -12- Article number Item Description Material DN 125 DN 150 DN 200° DN 200^ Body GGG 40 1004 125 000 1004 151 000 1004 200 000 1004 200 016 Valve cover GGG 40 1014 125 000 1014 151 000 1014 200 000 1014 200 000 Spindle guide cover INOX...

  • Page 16: Control Line Individual Parts And Accessories

    -13- 3.3 Control line individual parts and accessories Master number Picture Size Art. number Designation further sizes possibly available Stainless steel/NBR 3/8" 0130 012 000 0130 Stainless steel/NBR 1/2" 0130 016 000 Compound seal Stainless steel/NBR 3/4" 0130 025 000 Steel/NBR 1"...
  • Page 17 -14- 3/8" Stainless steel 0401 012 000 0401 1/2" Stainless steel 0401 016 000 Sleeve 3/4" Stainless steel 0401 025 000 1" Stainless steel 0401 032 000 DN 6 - 1/8" Stainless steel 0411 006 004 0411 DN12 - 3/8" Stainless steel 0411 012 012 Adjuster nipple 0431...
  • Page 18 -15- Stainless steel Y-filter IG 3/8" 0545 112 002 0545 Individual parts: Stainless steel dirt filter Stainless steel dirt filter 0545 900 051 Plug, complete for Y-filter, stainless 0545 112 010 steel 0545 112 011 Large seal for Y-filter, POM 0545 112 012 Small O-ring for plug 0545 116 000...
  • Page 19 -16- AC coils with 0620 xxx xxx 0620, 0621 voltage indication Coils DC coils with 0621 xxx xxx voltage indication 0630 Appliance socket 0630 000 000 for electromagnet Appliance socket 0653 Connector modules for solenoid valves 0653 024 008 Type LBV 24 DC 8S, incl. 2m cable Connector modules Connector modules for solenoid valves 0653 230 000...
  • Page 20 -17- From serial number14252 (January 1188 2003) 1188 065 100 Rep. Set DN40 to 100 1188 125 300 Control line DN125 to 300 From approx. serial number 25915 (June 2014, 1188 000 000 Filter type B (0545 112 002) 1188 000 001 DN40 to 100 DN125 to 200 Polyamide tube OD 6 mm, ID 4 mm...

  • Page 21: Annex

    -18- E. Annex Torques When assembling the base valve and the control valves all bolts are checked with a torque spanner according to the following list. Lightly grease the bolts before assembling! Nominal size Hex bolt Strength Tightening torque class Target Max.

  • Page 22: Hawle In Europe
