Instructions myintercom Plus IP video door intercom
GB
Installation

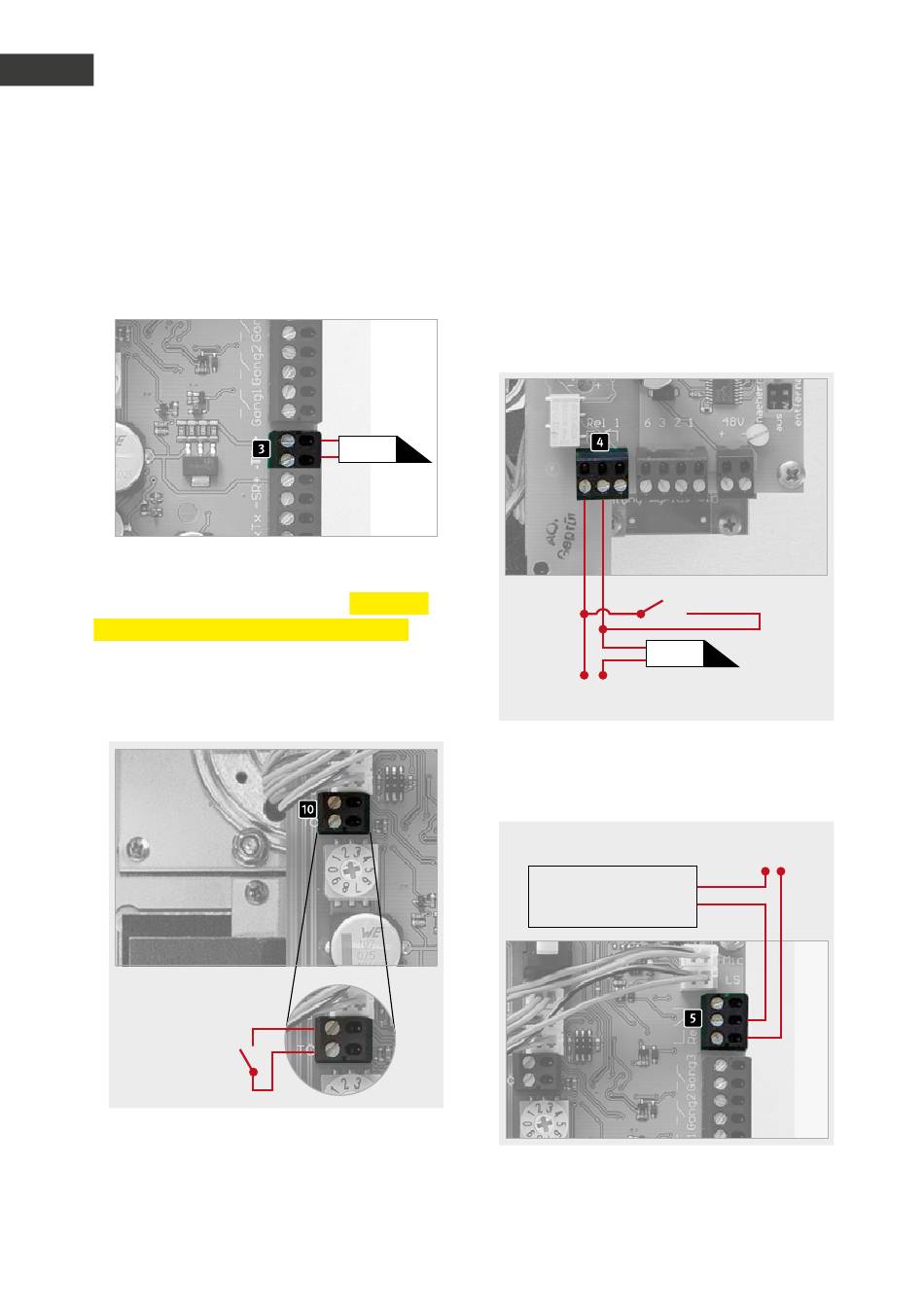

3.3. Open door/Relay/Gong

Remove the housing cover and connect the
components as follows:
Connect the door open function directly oper-
ated by the door intercom station (universal
door open function 6-12VDC/AC max. 9W) to the
terminal marked "Door". Use a cable not longer
than 50m and with 0.6mm
connection to the door intercom.
Optional external
open door function
button (supplied
on site)
63
Open door
function
cross-section for
2
In case power for the door open function is
directly supplied from the door intercom sta-
tion, you may install an external button to open
the door. Relay 1 can be used via the terminal
marked "R1" and relay 2 can be used via the
terminal marked "R2".
Open door
function
External power supply unit for the open door function
(cf. technical features)
Connection relay 1
Please note: The open door voltage and relay 1
will always be switched in parallel.
Illumination control
Garage door open function,
Barrier control
Connection relay 2
Optional external open door
function button (on site)
External power supply unit
(cf. technical features)
www.behnke-online.de
