RocketM Series Quick Start Guide
Package Contents
Power Cord
Installation Requirements
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and
destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit
Hardware Overview
https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]
RocketM Series Quick Start Guide

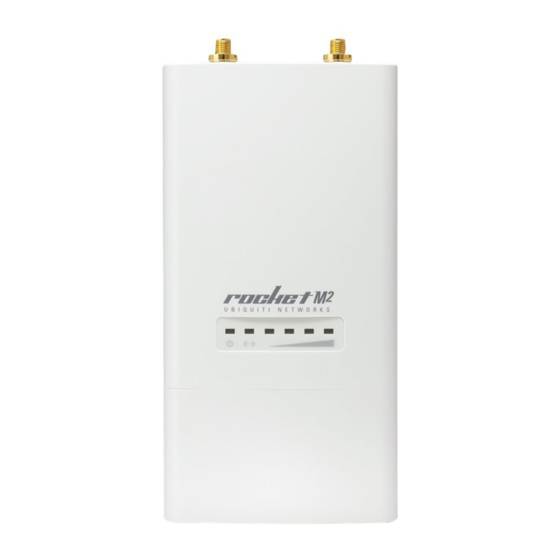

Rocket
ui.com/toughcable
Metal Strap
PoE Adapter (24V, 1A) (24V, 0.5A
RocketM2 only)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti RocketM Series
Summary of Contents for Ubiquiti RocketM Series
- Page 1 Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Hardware Overview https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
- Page 2 RocketM Series Quick Start Guide RP-SMA Antenna Connectors Used to attach RF cables (not included). Power LED The Power LED will light green when the device is connected to a power source. https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
-
Page 3: Hardware Installation
To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on. Hardware Installation The Rocket is designed to mount directly onto a Ubiquiti airMAX RocketDish™ antenna for Point-to-Point use or an airMAX Sector antenna for Point-to-MultiPoint use. https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]... - Page 4 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
- Page 5 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
- Page 6 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
- Page 7 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
- Page 8 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
-
Page 9: Pole Mounting
RocketM Series Quick Start Guide Pole-Mounting https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]... - Page 10 RocketM Series Quick Start Guide https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
-
Page 11: Connecting Power
RocketM Series Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the device. -
Page 12: Installer Compliance Responsibility
The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For details, refer to the User Guide available at ui.com/download/airmax You can also manage your device using the Ubiquiti® Network Management System. Setup using the UNMS™ app requires the U-Installer, sold separately. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to... - Page 13 RocketM Series Quick Start Guide Antenna Select your antenna from the list. If Calculate EIRP Limit is enabled, transmit output power is automatically adjusted to comply with the regulations of the applicable country. Note the requirements and antenna types listed below.
-
Page 14: Specifications
RocketM Series Quick Start Guide 5 GHz 30 dBi 900 MHz 16 dBi Specifications RocketM Dimensions 160 x 80 x 30 mm (6.30 x 3.15 x 1.18") Weight 500 g (1.1 lb) Port (1) 10/100 Ethernet Port RF Connectors (2) RP-SMA (Waterproof) -
Page 15: Safety Notices
RocketM Series Quick Start Guide U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 5470 - 5600, 5650 - 5725, 5725 - 5850 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. - Page 16 RocketM Series Quick Start Guide Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
- Page 17 RocketM Series Quick Start Guide This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 50 cm (RocketM2, RocketM9) or 252 cm (RocketM5) between the radiator and your body.
-
Page 18: Declaration Of Conformity
Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/RocketM-Series/RocketM-Series_EN.html[1/3/2020 10:46:37 AM]...
