ED - 1 SIGNALLING BELL
DESCRIPTION
The ED-1 electromechanical bell may be
used in various systems, where acoustic
signalling is needed (e.g. phase decay
signalling). The bell is designed for
mounting on TH35 rail.
FEATURES
‫ ی‬Electromechanical bell,
‫ ی‬Brass bell gong in a plastic casing,
‫ ی‬Designed for acoustic signalling at
home and industrial systems,
‫ ی‬Either surface-mounted or TH35 rail
mounted,
‫ ی‬Double-module casing,
‫ ی‬Sound level: approximately 68 dB.
The device should be
connected to a single-
phase system accordin-
gly to current standards.
The device connections
CAUTION
will be described in this
manual. Only qualified electricians are
allowed to mount, connect and adjust
the bell. It is necessary to read this ma-
nual before the device mounting. Do not
disassembly the timer casing or you will
lose any warranty rights and expose
yourself to the electric shock hazard.
Before mounting operation make sure
of disconnecting the connection wires
from the electric network. Use a cross-
head screwdriver of 3.5 mm diameter
to mount the device. The bell should
be carried, stored and used in an ap-
propriate way. Do not mount the bell in
case of any device parts lack, damage
or deformation. In case of malfunction
please notify the manufacturer.
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Power terminals: L, N
Rated voltage: 230 V~
Rated voltage tolerance: -15 ÷ +10 %
Rated frequency: 50 / 60 Hz
Rated current: 4,5 VA
Switch-ON control: electromechanical bell
Connection terminals quantity: 2
Connection wire section: 0,2 ÷ 2,50 mm
Operating temperature: 0 ÷ +35
Operating position: optional
Casing fastening: TH 35 rail (accordingly to PN-EN 60715)
Protection class: II
Overvoltage category: II
Pollution level: 2
Standard conformity: PN-EN 60669-1; PN-EN 60669-2-1

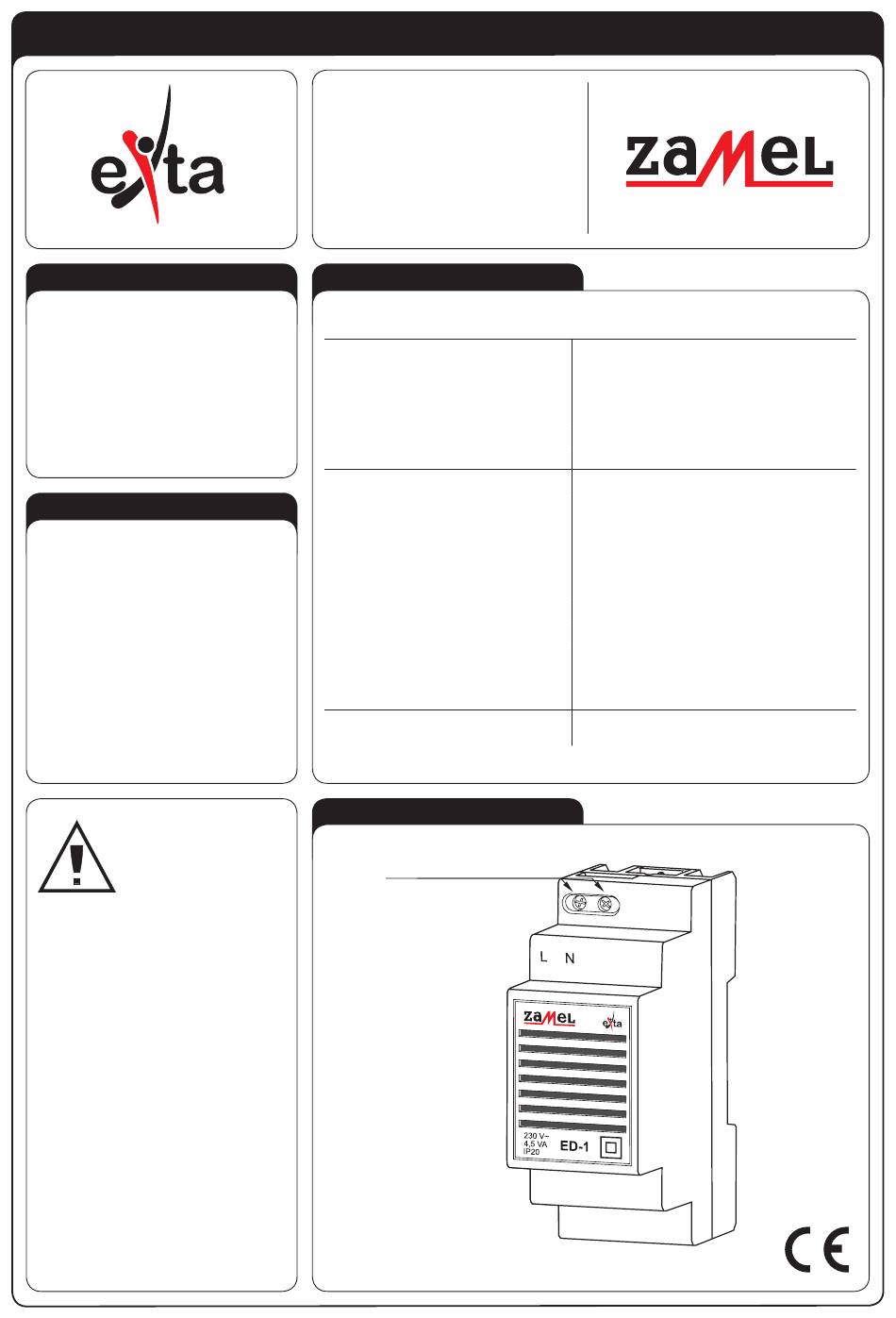

APPERANCE
Power terminals (L, N)
INSTRUCTION MANUAL
ED - 1
C
o
Casing IP: IP20 (PN-EN 60529)
Dimensions: double-module (35 mm) 90 x 35 x 66 mm
Weight: 92 g
PN-EN 61000-4-2,3,4,5,6,11
2
