Ambient Weather TX-3102 7-Channel Soil Moisture and

Table of Contents

1.
Introduction ..................................................................................................................................... 1
2.
Getting Started ................................................................................................................................ 1
2.1
Parts List ................................................................................................................................. 1
2.2
Product Overview ................................................................................................................... 1
2.3
Getting Started ........................................................................................................................ 2
2.4
Temperature Reading ............................................................................................................. 3
2.5
Moisture Reading ................................................................................................................... 3
3.
Synchronizing with your Display Console...................................................................................... 4
4.
Sensor Placement ............................................................................................................................ 5
5.
Specifications .................................................................................................................................. 5
5.1
Measurement Specifications ................................................................................................... 6
5.2
Power Consumption ............................................................................................................... 6
6.
Troubleshooting Guide .................................................................................................................... 6
7.
Liability Disclaimer ........................................................................................................................ 8
8.
FCC Statement ................................................................................................................................ 8
9.
Warranty Information ...................................................................................................................... 9

1. Introduction

Thank you for your purchase of the Ambient Weather TX-3102 Soil Moisture and Thermometer User
Manual. This is an accessory or replacement for your exiting Display Console or Weather Station.
This is not a standalone device.
The following user guide provides step by step instructions for installation, operation and
troubleshooting. To download the latest full sized manual and additional troubleshooting tips, please
visit:

2. Getting Started

2.1

Parts List

QTY
1

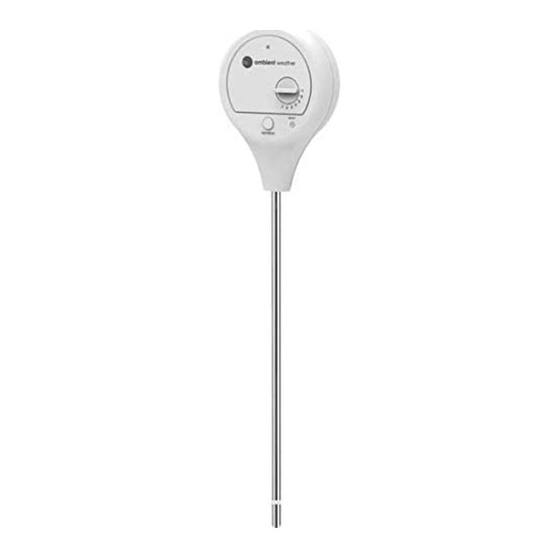

Soil Moisture and Thermometer
Dimensions (L x W x H): 65 x 257.5 x 23.5 mm (2.56 x 10.14 x 0.93")
1
User Manual
2.2

Product Overview

Version 1.0
©Copyright 2018, Ambient LLC. All Rights Reserved.
Thermometer User Manual
AmbientWeather.net/help
Item
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-3102 and is the answer not in the manual?

Questions and answers

Related Manuals for Ambient Weather TX-3102

Summary of Contents for Ambient Weather TX-3102

  • Page 1: Table Of Contents

    Warranty Information ........................9 1. Introduction Thank you for your purchase of the Ambient Weather TX-3102 Soil Moisture and Thermometer User Manual. This is an accessory or replacement for your exiting Display Console or Weather Station. This is not a standalone device.

  • Page 2: Getting Started

    LED indicator. Blinks once during Battery compartment. transmission. Accommodates 2 x CR2032 button cells. REFRESH button. Automatically forces Battery door screw transmission. CHANNEL switch Sensor metal probes Assign each sensor to a different channel 1, 2, 3, 4, 5, 6 or 7. Press RESET after selecting the channel.

  • Page 3: Temperature Reading

    Select the sensor channel by using CHANNEL rotatory selection switch. For example: Channel 1 is selected. Turn the battery door screw counter clockwise to open the battery door. Insert 2 x CR2032 button cells into the battery compartment. Make sure the polarity is correct.

  • Page 4: Synchronizing With Your Display Console

    Figure 3 Note: The measurement accuracy of the sensor can be affected by the soil condition. For example, loose soil may measure a lower moisture level than dense soil. 3. Synchronizing with your Display Console Refer to the User Manual for your display console to locate specific buttons. After installing the batteries in the wireless thermometer, place the sensor about 10 feet from the display console, and press the SENSOR button on the console to manually receive the sensor signal.

  • Page 5: Sensor Placement

    4. Sensor Placement 1. Place the sensor within 100 feet of the display console. 2. Insert the probe at least 4” into the soil. 3. Avoid transmitting through solid earth or ground (Figure 4) 4. Place the console at least three feet away from computers, TVs and wireless phones. 5.

  • Page 6: Measurement Specifications

    Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution Temperature -4 to 140 °F 32 to 104°F: ± 1.8°F 0.1 °F/°C (0 to 40°C: ± 1°C) < 32 °F: ± 3.6°F (<0°C: ± 2°C) >...
  • Page 7 Problem Solution generating devices, such as computers, TVs and other wireless transmitters or receivers. Version 1.0 ©Copyright 2018, Ambient LLC. All Rights Reserved. Page 7...

  • Page 8: Liability Disclaimer

    Liability Disclaimer Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment. Reading the “User manual”...

  • Page 9: Warranty Information

    Phone : 1-(480)346-3380 Warranty Information Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures.
