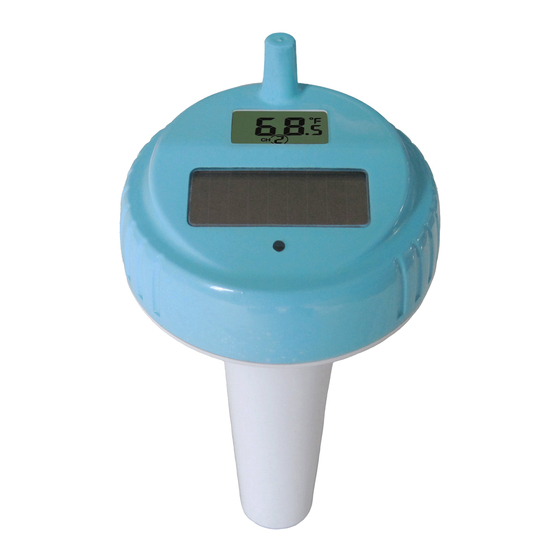

Ambient Weather F007PF 8-Channel Wireless
Floating Pool and Spa Thermometer User Manual
Table of Contents
1
Introduction ..................................................................................................................................... 2
2
Warnings ......................................................................................................................................... 2
3
Getting Started ................................................................................................................................ 2
2.1 Parts List ....................................................................................................................................... 2
2.2 Floating Pool and Spa Thermometer Sensor Set Up ..................................................................... 2
2.3 Sensor Placement .......................................................................................................................... 9
4
Maintenance .................................................................................................................................... 9
5
Glossary of Terms ......................................................................................................................... 10
6
Specifications ................................................................................................................................ 10
4.1 Wireless Specifications ............................................................................................................... 10
4.2 Measurement Specifications ....................................................................................................... 10
4.3 Power Consumption .................................................................................................................... 10
7
Troubleshooting Guide .................................................................................................................. 10
8
Accessories ................................................................................................................................... 11
9
Liability Disclaimer ...................................................................................................................... 12
10
FCC Statement .......................................................................................................................... 12
11
Warranty Information ............................................................................................................... 13
Version 1.5
©Copyright 2017, Ambient LLC. All Rights Reserved.
Page 1
Advertisement
Table of Contents
Related Manuals for Ambient Weather F007PF
Summary of Contents for Ambient Weather F007PF
-
Page 1: Table Of Contents
Ambient Weather F007PF 8-Channel Wireless Floating Pool and Spa Thermometer User Manual Table of Contents Introduction ............................. 2 Warnings ............................2 Getting Started ..........................2 2.1 Parts List ............................2 2.2 Floating Pool and Spa Thermometer Sensor Set Up ..............2 2.3 Sensor Placement .......................... -
Page 2: Introduction
1 Introduction Thank you for your purchase of the Ambient Weather F007PF 8-Channel Wireless Floating Pool and Spa Thermometer. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit the FAQ website: http://ambientweather.wikispaces.com/f007pf... - Page 3 Figure 1 1. To insert the batteries,, (1) Twist the KEY lid to unlock, (2) remove the key, and (3) twist the main body of the sensor by removing the lid, as shown in Figure 2 . IMPORTANT NOTE: Turn the lid counter clockwise to open, like the lid of a jar. Turning the lid clockwise may overtighten the lid.
- Page 4 Figure 3 2. The floating thermometer includes dip switches for assigning channel numbers. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter. Figure 5 displays all four switches in the OFF position (factory default setting). NOTE: The second generation pool float includes a reset button.
- Page 5 Figure 5 Channel Number: The F007PF supports up to eight transmitters. To set each channel number (the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C),...
- Page 6 3. Reference Figure 6. Install 4 x AAA batteries. Figure 6 (1) Open the battery compartment and (2) insert 4 x AAA batteries into the battery compartment, observing the correct battery polarity. 4. After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and then flash once per 60 seconds thereafter.
- Page 7 (2) temperature units (°F vs. °C) (3) channel number 6. Close the battery door. Make sure both red colored gaskets are properly seated in their traces prior to closing the battery door, as shown in Figure 8. Failure to properly seal the floating thermometer will result in water leakage and damage.
- Page 8 Figure 10 Place the sensor in the water and make sure that it is within the effective transmission range from the display console. Version 1.5 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 8...
-
Page 9: Sensor Placement
3. Avoid transmitting through solid metal barriers. Figure 11 NOTE: The F007PF is designed to float. If the F007PF is used under a cover and the sensor is constantly submerged, the additional pressure will lead to premature gasket failure. Moisture will enter the sensor compartment and cause sensor failure. -
Page 10: Glossary Of Terms
seals: http://en.wikipedia.org/wiki/Silicone_grease Silicone grease is available at most hardware and pool stores. 5 Glossary of Terms Term Definition Accuracy Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured. Range Range is defined as the amount or extent a value can be measured. 6 Specifications 4.1 Wireless Specifications ... -
Page 11: Accessories
F007TP Wireless temperature probe. Consoles support up to 8 channels. WS-07-C Ambient Weather WS-07 Big Digit 8-Channel Wireless Thermo-Hygrometer Console. Add as many consoles as you like. WS-08-C Ambient Weather WS-08 Wireless Indoor/Outdoor 8-Channel Thermo-Hygrometer with Daily Min/Max Display Console. Add as many consoles as you like. -
Page 12: Liability Disclaimer
9 Liability Disclaimer Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment. Reading the “User manual”... -
Page 13: Warranty Information
11 Warranty Information Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures.
