Section 7 Exploded Views; Cabinet (Upper) Section - Sony ICF-C160 Service Manual

NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian IT
SP : Singapore AUS : Australian

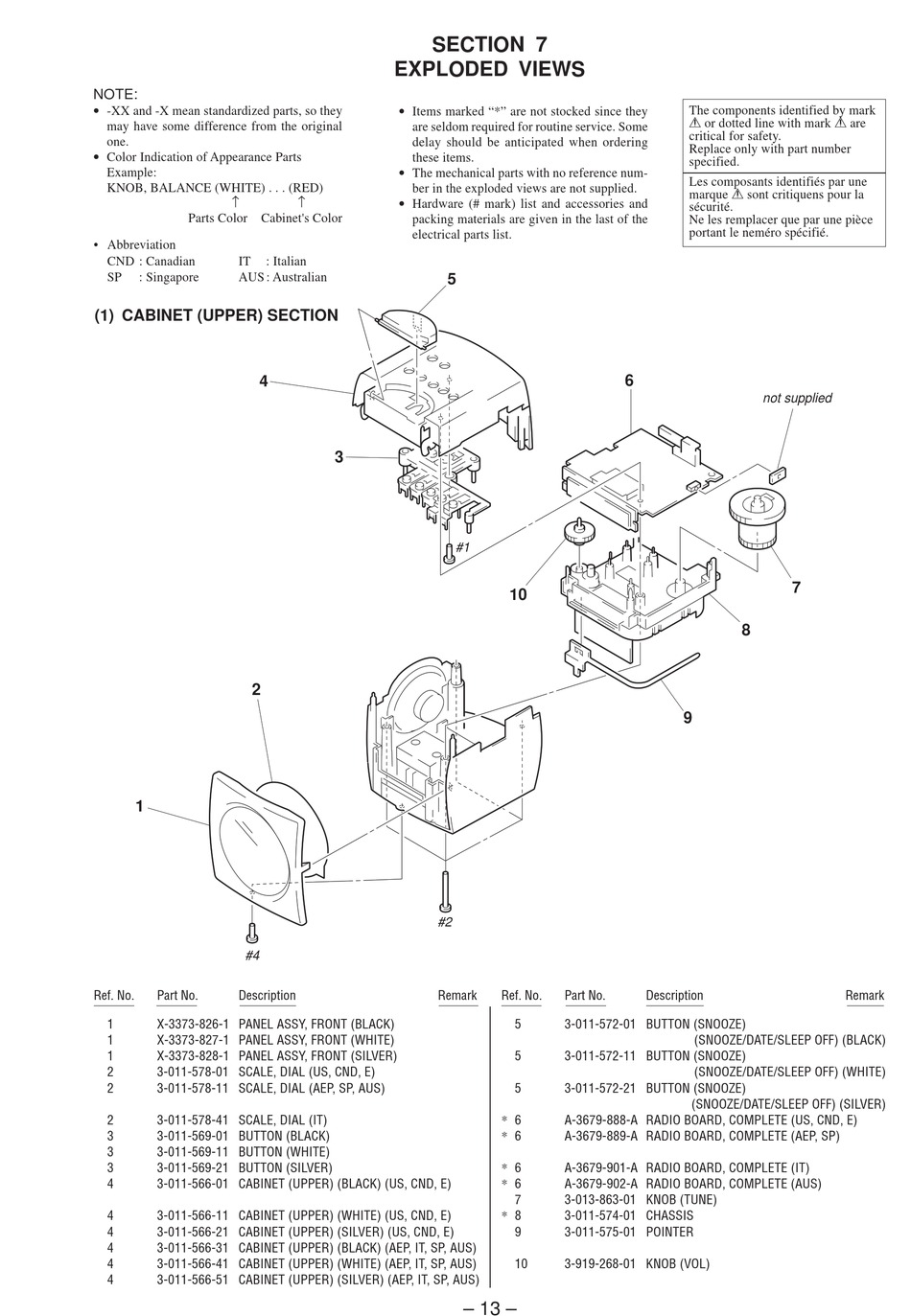

(1) CABINET (UPPER) SECTION

4
2
1
#4
Ref. No. Part No. Description
1 X-3373-826-1 PANEL ASSY, FRONT (BLACK)
1 X-3373-827-1 PANEL ASSY, FRONT (WHITE)
1 X-3373-828-1 PANEL ASSY, FRONT (SILVER)
2 3-011-578-01 SCALE, DIAL (US, CND, E)
2 3-011-578-11 SCALE, DIAL (AEP, SP, AUS)
2 3-011-578-41 SCALE, DIAL (IT)
3 3-011-569-01 BUTTON (BLACK)
3 3-011-569-11 BUTTON (WHITE)
3 3-011-569-21 BUTTON (SILVER)
4 3-011-566-01 CABINET (UPPER) (BLACK) (US, CND, E)
4 3-011-566-11 CABINET (UPPER) (WHITE) (US, CND, E)
4 3-011-566-21 CABINET (UPPER) (SILVER) (US, CND, E)
4 3-011-566-31 CABINET (UPPER) (BLACK) (AEP, IT, SP, AUS)
4 3-011-566-41 CABINET (UPPER) (WHITE) (AEP, IT, SP, AUS)
4 3-011-566-51 CABINET (UPPER) (SILVER) (AEP, IT, SP, AUS)
SECTION 7
EXPLODED VIEWS
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
↑
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
: Italian
3
#2
Remark
5
#1
10
Ref. No. Part No.
5 3-011-572-01 BUTTON (SNOOZE)
5 3-011-572-11 BUTTON (SNOOZE)
5 3-011-572-21 BUTTON (SNOOZE)
* 6 A-3679-888-A RADIO BOARD, COMPLETE (US, CND, E)
* 6 A-3679-889-A RADIO BOARD, COMPLETE (AEP, SP)
* 6 A-3679-901-A RADIO BOARD, COMPLETE (IT)
* 6 A-3679-902-A RADIO BOARD, COMPLETE (AUS)
7 3-013-863-01 KNOB (TUNE)
* 8 3-011-574-01 CHASSIS
9 3-011-575-01 POINTER
10 3-919-268-01 KNOB (VOL)
– 13 –
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
6
not supplied
7
8
9
Description
(SNOOZE/DATE/SLEEP OFF) (BLACK)
(SNOOZE/DATE/SLEEP OFF) (WHITE)
(SNOOZE/DATE/SLEEP OFF) (SILVER)
Remark
