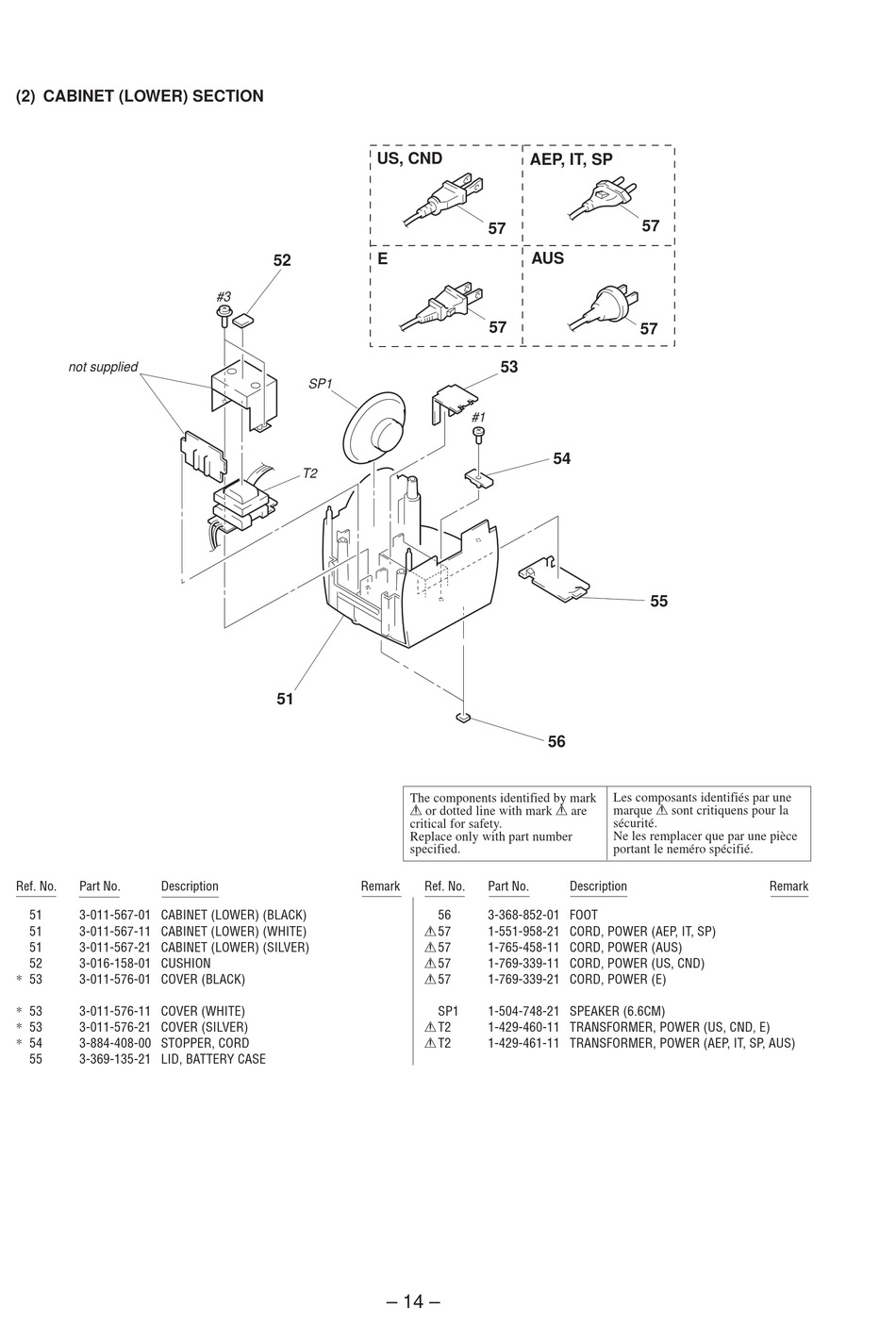

(2) CABINET (LOWER) SECTION
not supplied
Ref. No.
Part No.
Description
51
3-011-567-01 CABINET (LOWER) (BLACK)
51
3-011-567-11 CABINET (LOWER) (WHITE)
51
3-011-567-21 CABINET (LOWER) (SILVER)
52
3-016-158-01 CUSHION
* 53
3-011-576-01 COVER (BLACK)
* 53
3-011-576-11 COVER (WHITE)
* 53
3-011-576-21 COVER (SILVER)
* 54
3-884-408-00 STOPPER, CORD
55
3-369-135-21 LID, BATTERY CASE
US, CND
E
52
#3
SP1
T2
51
Remark
AEP, IT, SP
57
AUS
57
53
#1
54
56
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Ref. No.
Part No.
56
3-368-852-01 FOOT
! 57
1-551-958-21 CORD, POWER (AEP, IT, SP)
! 57
1-765-458-11 CORD, POWER (AUS)
! 57
1-769-339-11 CORD, POWER (US, CND)
! 57
1-769-339-21 CORD, POWER (E)
SP1
1-504-748-21 SPEAKER (6.6CM)
! T2
1-429-460-11 TRANSFORMER, POWER (US, CND, E)
! T2
1-429-461-11 TRANSFORMER, POWER (AEP, IT, SP, AUS)
– 14 –
57
57
55
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Description
