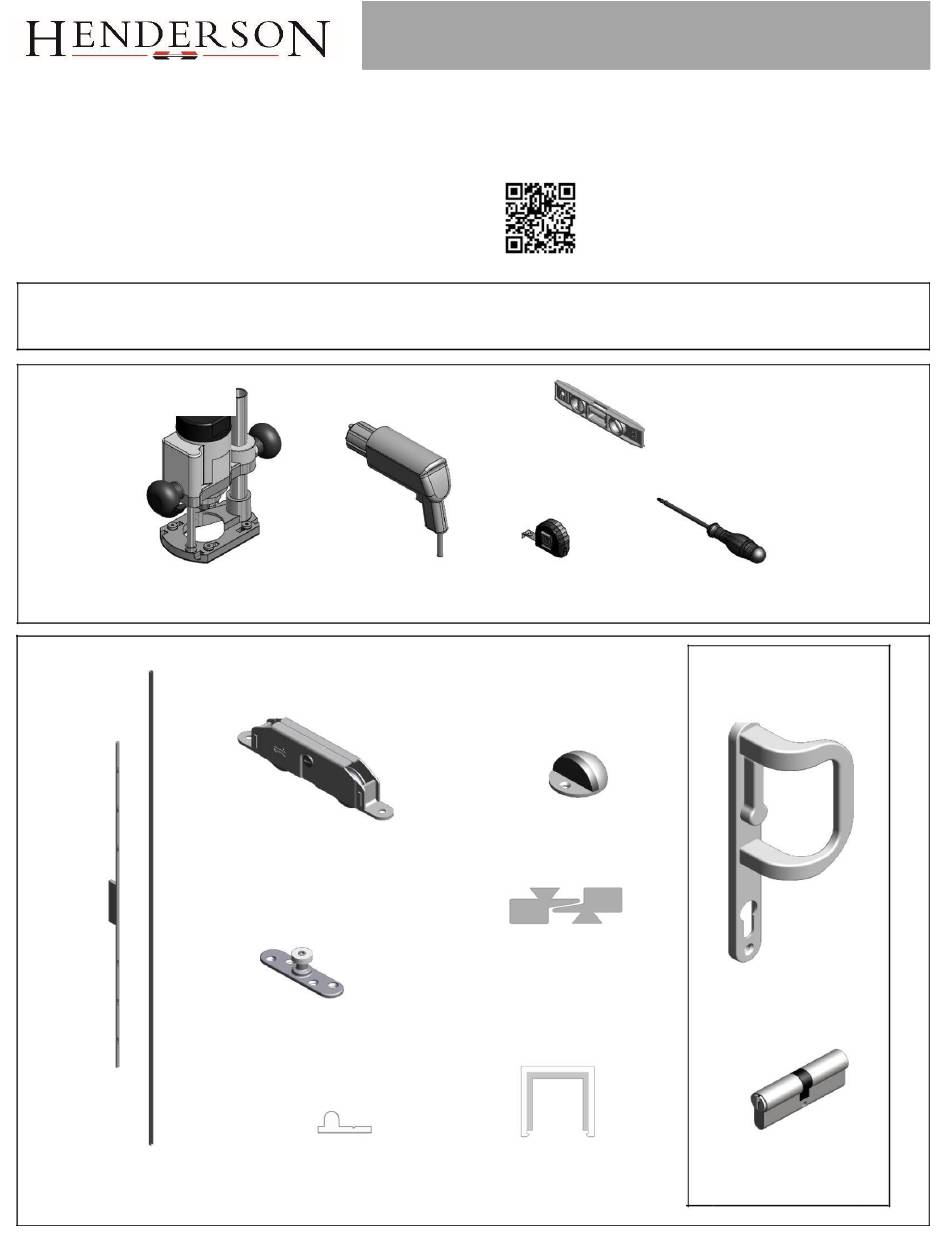

FITTING INSTRUCTIONS – NOTICE DE POSE – MONTAGE HANDLEIDING –
MONTAGEANLEITUNG ISTRUZIONI DI MONTAGGIO – INSTUCCIONES DE MONTAJE
Warranty. This product is covered by a 10 year manufacturer's warranty. Please see the P C Henderson website for terms and conditions
WATCH THE INSTALLATION VIDEO
Visit: www.pchenderson.com/imperial-installation
Or scan the QR code using your phone
Specification
Maximum Door Height = 2400mm
Tools Required
Router
Kit Contents
1 x Lock Kit
1 x Keep Plate
(Not included in Slave Door Kit)
IMPERIAL PATIO KIT
Maximum Door Weight = 200kg
Power
Drill
2 x Imperial 200kg
Bottom roller
2 x 106SS/94
Guide
1 x 915B Bronze
Rail
Maximum Door Thickness = 56mm
Tape Measure
2 x Floor
Stop
2 x Interlocker
2.4 Mtr
1 x 94P Polypropylene
Channel
Spirit Level
Posi
Screwdriver
Optional
Accessories
Locking and Non
Locking D Handle
Locking
Cylinder
Advertisement
Related Manuals for Henderson IMPERIAL PATIO KIT
Summary of Contents for Henderson IMPERIAL PATIO KIT
- Page 1 FITTING INSTRUCTIONS – NOTICE DE POSE – MONTAGE HANDLEIDING – MONTAGEANLEITUNG ISTRUZIONI DI MONTAGGIO – INSTUCCIONES DE MONTAJE Warranty. This product is covered by a 10 year manufacturer’s warranty. Please see the P C Henderson website for terms and conditions WATCH THE INSTALLATION VIDEO Visit: www.pchenderson.com/imperial-installation...
- Page 2 Calculating Door and Opening Heights One Fixed and One Sliding Panel One Fixed and Two Sliding Panels Central Meeting Panels Seal * Seal * Seal * Seal * DH = Door Height OH = Opening Height GC = Ground Clearance TC = Top Clearance *= Not included in kit PCH recommend a minimum door stile of 150mm...
-
Page 3: Doors Open
One Fixed & One Sliding Panel Overview Interlocker Door Stop DOORS CLOSED PCH Recommended Overhang = 130mm DOORS OPEN Keep Multi point lock with D handle One Fixed & Two Sliding Panel Overview Door Stop Interlocker DOORS CLOSED PCH Recommended Overhang = 130mm DOORS OPEN Keep Multi point locks with D Handle... - Page 4 Component Overview Central Meeting Panels Component Overview Sliding Panels to One Side...
- Page 5 1. Routing detail for top guide NOTE: Routing detail for all steps must be followed to the exact measurements provided. Failure to so may effect the overall functionality and longevity of the product. Min 170 2. Attach Top Guides 4. Attach 3.
- Page 6 5. Locking bar routing detail (full height) 6. Locking bar routing detail Section A- A...
- Page 7 7. Locking bar & handle installation Screws NOT PCH 8. Keep location routing detail (full height) Door Or Jamb Door Insert...
- Page 8 9. Keep position & installation (on central Screws NOT PCH meeting doors), for fixed panel installation attach keep to timber jamb 11. Insert Panels into Frame 10. For track and channel installation detail see Imperial 200SS Bottom Roller fitting instructions. 10a.
- Page 9 12. Plan view of interlocker position 12a. Install overview between panels Fixed panel Direction of travel Sliding Panel Ensure correct Orientation 13. Door stop position overview Door Sliding Panel Fixed panel stops Direction of travel...
- Page 10 UK Registered Address: P C Henderson Ltd, Durham Road, Bowburn, Co. Durham, DH6 5NG Republic of Ireland Registered Address: P C Henderson Ltd, Westlink Industrial Estate, Kylemore Road, Dublin 10, Ireland Holland Registered Address: Henderson Nederland BV, Rootven 14, 5531 MB, Bladel...
