SHUTTER SLIDE
Single Panel or Sim Action - Manual Operation
Fitting Instructions
Type of
No. of Panels
System
1 or 2*
Manual
*For 2 door applications (1+1) please use these instructions in conjunction with the Shutter Slide SIM Action Fitting Instructions
120 Track (x1)
HH4/AN Track
Stop (x2)
GSS/RH Offset Angle
Plate Right (x1)
GSS/SBK10 Guide (x1)
GSS/MK40 Fixing Plate (x1)
Phillips Screwdriver
Tape Measure
PANEL SPECIFICATION
Min. Panel
Width
400mm
SYSTEM COMPONENTS
WP50F Fascia (x1)
GSS/LH Offset Angle
OR
Plate Left (x1)
OR
GSS/SSK10 Guide (x1)
OR
GSS/MK60 Fixing Plate (x1)
TOOLS REQUIRED
Hammer
13mm Spanner
Panel Thickness
Max. Panel Height
3000mm
WP50/EC End
WP50T Wall Fixing
Cap (x2)
Profile (x1)
GSSUR
Channel (x1)
OR
GSS/SL Guide (x1)
OR
Components vary depending on specification
Drill
Chisel
Page 1
Max. Panel
Range
Weight
35-48mm
51/120/SS Hanger (x2) or
56/120/SS Hanger (x2)
GSSULR Channel
OR
(x1)
GSS/MK100 Fixing Plate (x1)
2, 3, 4 & 5mm
Allen Keys
120kg
Advertisement
Related Manuals for Henderson SHUTTER SLIDE
Summary of Contents for Henderson SHUTTER SLIDE

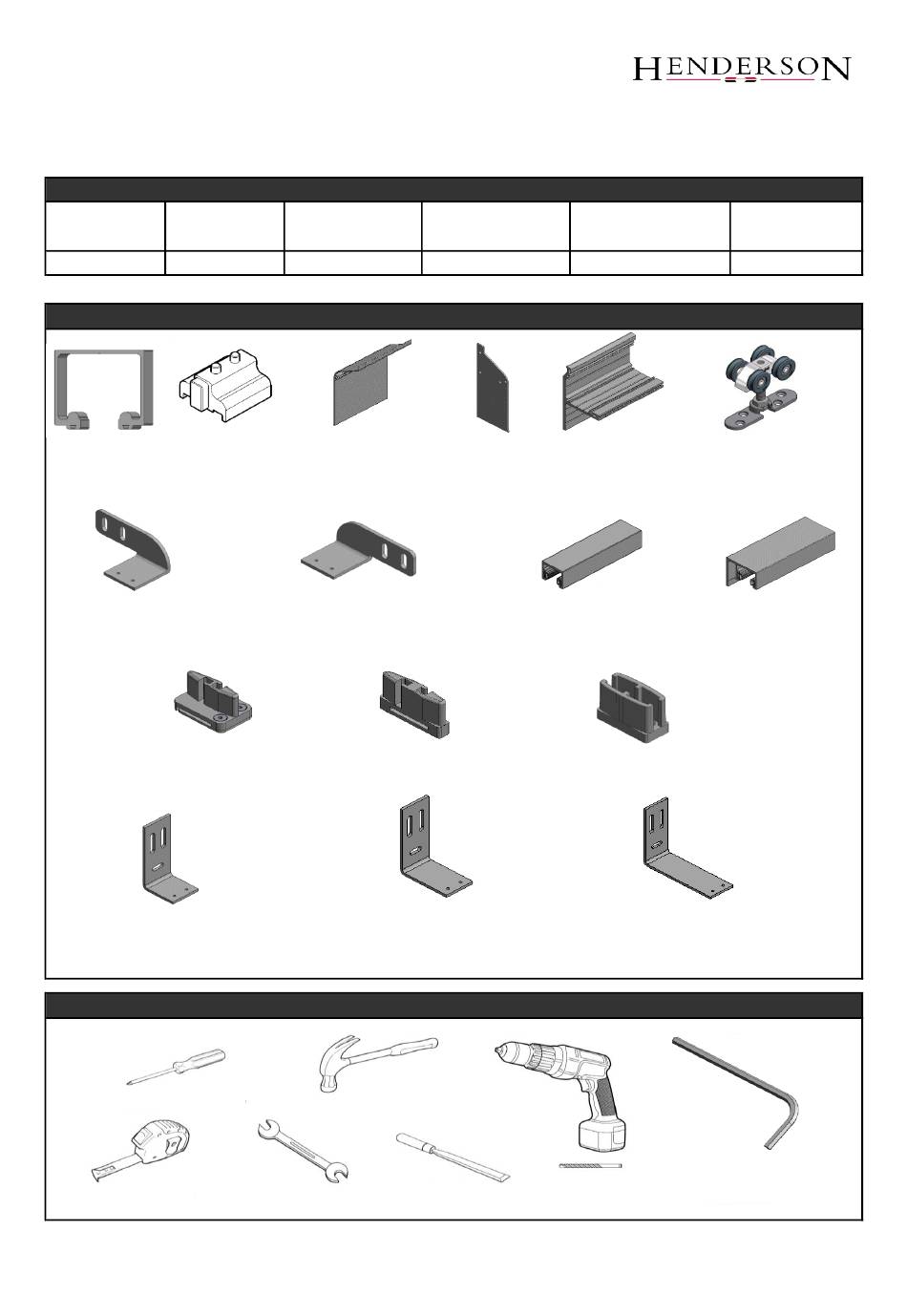

- Page 1 1 or 2* Manual 400mm 3000mm 35-48mm 120kg *For 2 door applications (1+1) please use these instructions in conjunction with the Shutter Slide SIM Action Fitting Instructions SYSTEM COMPONENTS WP50/EC End WP50T Wall Fixing 51/120/SS Hanger (x2) or WP50F Fascia (x1)
- Page 2 TRACK, WALL FIXING PROFILE AND FASCIA OVERVIEW Fascia Wall Fixing Profile Track SUGGESTED SHUTTER HEIGHT Centre Line 49mm Midpoint of Track = Top of Shutter + 49mm Page 2...
- Page 3 STEP BY STEP INSTRUCTIONS STEP 1: Position apron plates a minimum of 32mm away from the edge of the door. Ensure apron plates are equal distance from either edge of the door. Once positioned correctly, screw into place. Min 32mm STEP 2: Install the U-profile channel onto the base of the shutter, fixing at 200mm intervals along the centre line...
- Page 4 STEP 3: Cut track, track profile and fascia to the required length. Drill holes in the track (50mm from each of the track and then equal distances inbetween). Use "V" to ensure holes are central (hole size depends on fixing method). Finally, fix the profile to the wall and fix the track to the underside of the profile. NOTE: It is the installer’s responsibility to ensure that the correct fixing/wall insert is used and is suitable - depending on the...
- Page 5 STEP 5: Hang the shutter onto the track, set the height and tighten into position. i. Set shutter height by rotating strap bolt on flats ii. Once the required position is set – tighten the thin nut against the apron plate.
- Page 6 STEP 8: Using appropriate fixings, fit the L plate fixing guide to the edge of the opening. Next, attach the guide using an allen key to tighten into place. Lead Follower Door Door 29mm STEP 9: Position and secure track stop at both ends of the track using an allen key. Page 6...
- Page 7 Clip on fascia and screw on end caps. Fascia STEP 11: If you are installing two bi-parting doors, please now follow the Shutter Slide SIM Action fitting instructions P C Henderson Ltd, Durham Road, Bowburn, Co. Durham, DH6 5NG, UK...
- Page 8 nger (x2) or Page 8...
