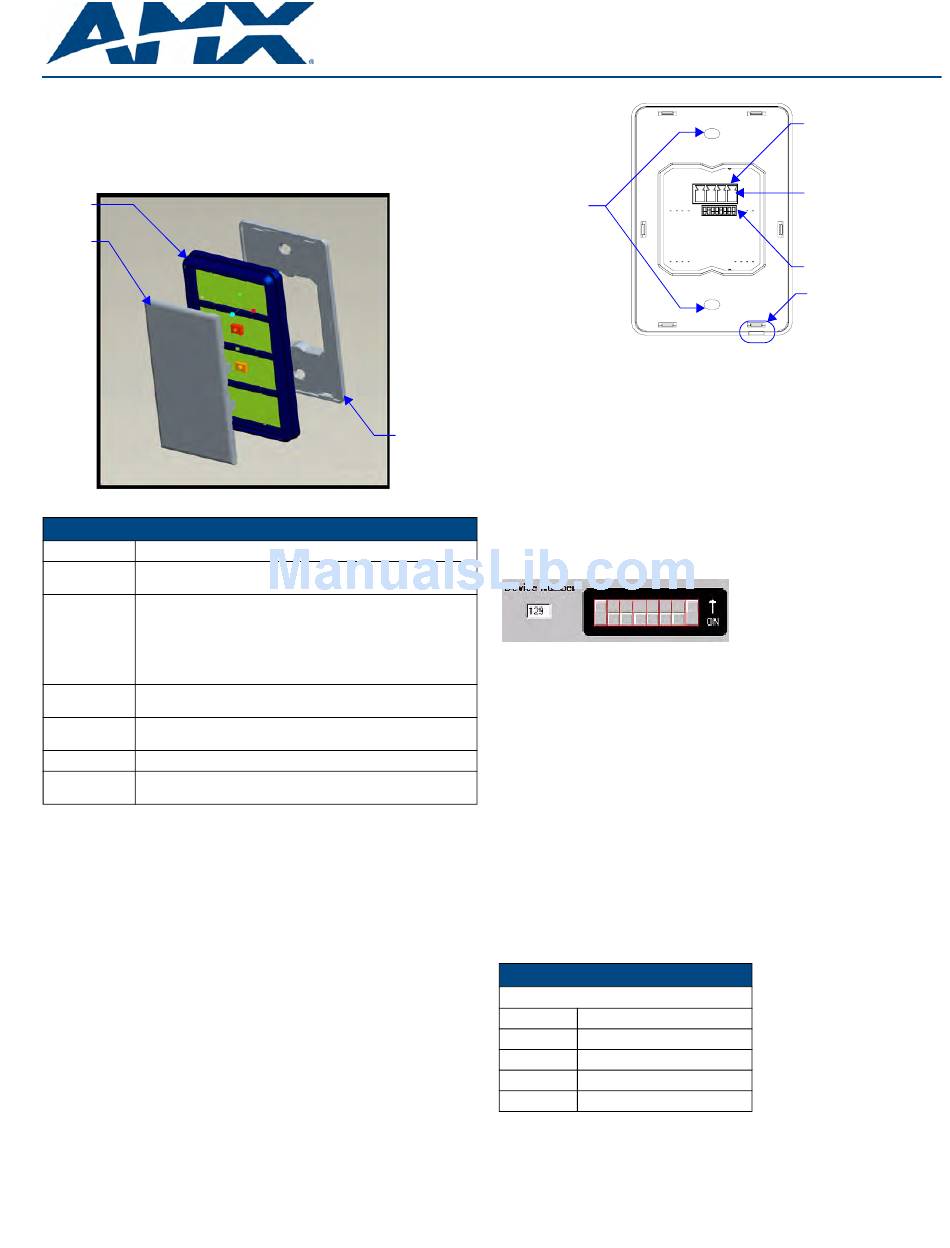

AMX Mio Moderno MIO-IRRX Quick Start Manual

Overview
The Mio Modero IR (FG5797-01xx; xx indicates color selection) is a remote IR
receiver for use with NetLinx Central Controllers and operates via the AXlink bus to
remotely control devices. The Mio Modero IR is in a wall panel that fits into the US-
style single-gang enclosure and most International single-gang enclosures. The Mio
Modero IR works with AMX 38 kHz and 455 kHz IR transmitters.
Faceplate
IR Cover
FIG. 1
Mio Modero IR receiver
Mio Modero IR Specifications
Power: 12 vDC, 15 mA
Receive 38 and 455 kHz
Frequencies:
Range 38KHz:
• transmitter at 38Hz and at 50° horizontal angle from center
• transmitter at 38Hz and at 30° vertical angle from center
455KHz:
• transmitter at 455Hz and at 45° horizontal angle from center
• transmitter at 455Hz and at 45° vertical angle from center
Mounting: Mounts into US-style single-gang enclosures and most International
single-gang enclosures.
Dimensions 4.46" x 2.71" x .57" (113.28 mm x 68.83 mm x 14.48 mm)
(HWD):
Weight: .15 lbs (.07 kg)
Included Phoenix Connector (41-5045)
Accessories:
Available Color Schemes
The Mio Modero device family is available in a range of colors. The IR supports these
color schemes, Black (BL), White (WH), and Beige (BG).
Wiring and Installation
Note: Before touching the device, discharge the static electricity from your body by
touching a grounded metal object.

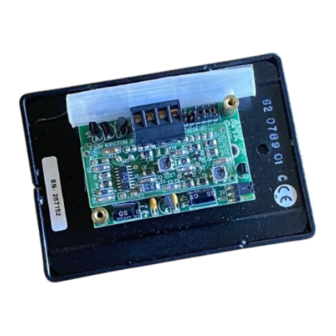

Set the receive AXlink device number before installing the Mio Modero IR. FIG. 2
illustrates the location of key components on the Mio Modero IR circuit board.
Screw
holes
FIG. 2
Location of key components on the Mio Modero IR circuit board
Setting the AXlink Device Number
1. If connected, disconnect the power supply.
2. Locate the 8-position Device DIP switch (FIG. 2).
Mounting Frame
3. Set the DIP switch according to the DIP switch values shown below.
Switch
Value
The device number is set by the total value of DIP switch positions that are
ON (up).
As an example, the DIP switch in FIG. 3 defines device number 129
(1+128=129).
FIG. 3
Example Device DIP Switch set to 129
If you later change the device number, remove and reconnect the AXlink power
connector to enter the new device number into memory.
Preparing captive wires
You will need a wire stripper, and flat-blade screwdriver to prepare and connect the
captive wires.
1. Strip 0.25 inch (6.35 mm) of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the
wiring diagrams and connector types described in this section.
3. Turn the flat-head screws clockwise to secure the wires in the connector.
Note: Do not over-torque the screws; doing so can bend the seating pins and damage
the connector.
Wiring Guidelines
The Mio Modero IR requires 12 VDC power to operate properly. The power is supplied
by the AMX system's AXlink cable. The maximum wiring distance between the Central
Controller and the receiver is determined by power consumption, supplied voltage,
and the wire gauge used for the cable. The following table lists wire sizes and the
maximum lengths allowable between the receiver and the Central Controller. The
maximum wiring lengths are based on a minimum of 13.5 volts available at the Central
Controller's power supply. If the distance is greater than what is listed in the table,
consult the Mio Modero Device Family Instruction Manual for wiring with external
power sources.
Wiring Specifications @ 35 mA
Maximum Wiring Length
Wire Size
18 AWG
20 AWG
22 AWG
24 AWG
Quick Start Guide
Mio Modero
(Rear Single)
1 2 3 4 5 6 7
1 2 4 8 16 32 64
Distance
3000 feet (914.40 m)
2121.64 feet (646.68 m)
1,322.75 feet (403.17 m)
833.80 feet (254.14 m)
®
IR Receiver
AXlink
3.5 mini Phoenix
connector
PWR+
8 position mini
DIP switch
Notch to pry
faceplate free
8
128
