Nx56/64 BONDING
ATLAS 800 Series Module
Product Specifications
Protocols
BONDing mode 1
Capacity
Up to 32 128 kbps sessions
Total bandwidth of 4.096 Mbps available
Agency Approvals
FCC Part 15, Class A, UL, Canadian UL (CUL)
Physical Dimensions
Size: 9.7" L, 6.0" W, 0.8" H
Weight: 1.1 lb
Power
6.6 Watts
Environmental
Operating Temperature:
0°C to 45°C, 32°F to 113°F
Storage Temperature:
-20°C to 70°C, -4°F to 158°F
Relative Humidity:
Up to 95%, non-condensing
Product Includes
User manual
4 BRIs
Ethernet LAN
Specifications subject to change without notice. ATLAS and ISU 512 are trademarks of ADTRAN, Inc.
ADTRAN and ISU 128 are registered trademarks of ADTRAN, Inc. All registered trademarks and
trademarks mentioned in this publication are the property of their respective owners.

Ordering Information

Equipment
Nx56/64 BONDING Module
Capacity

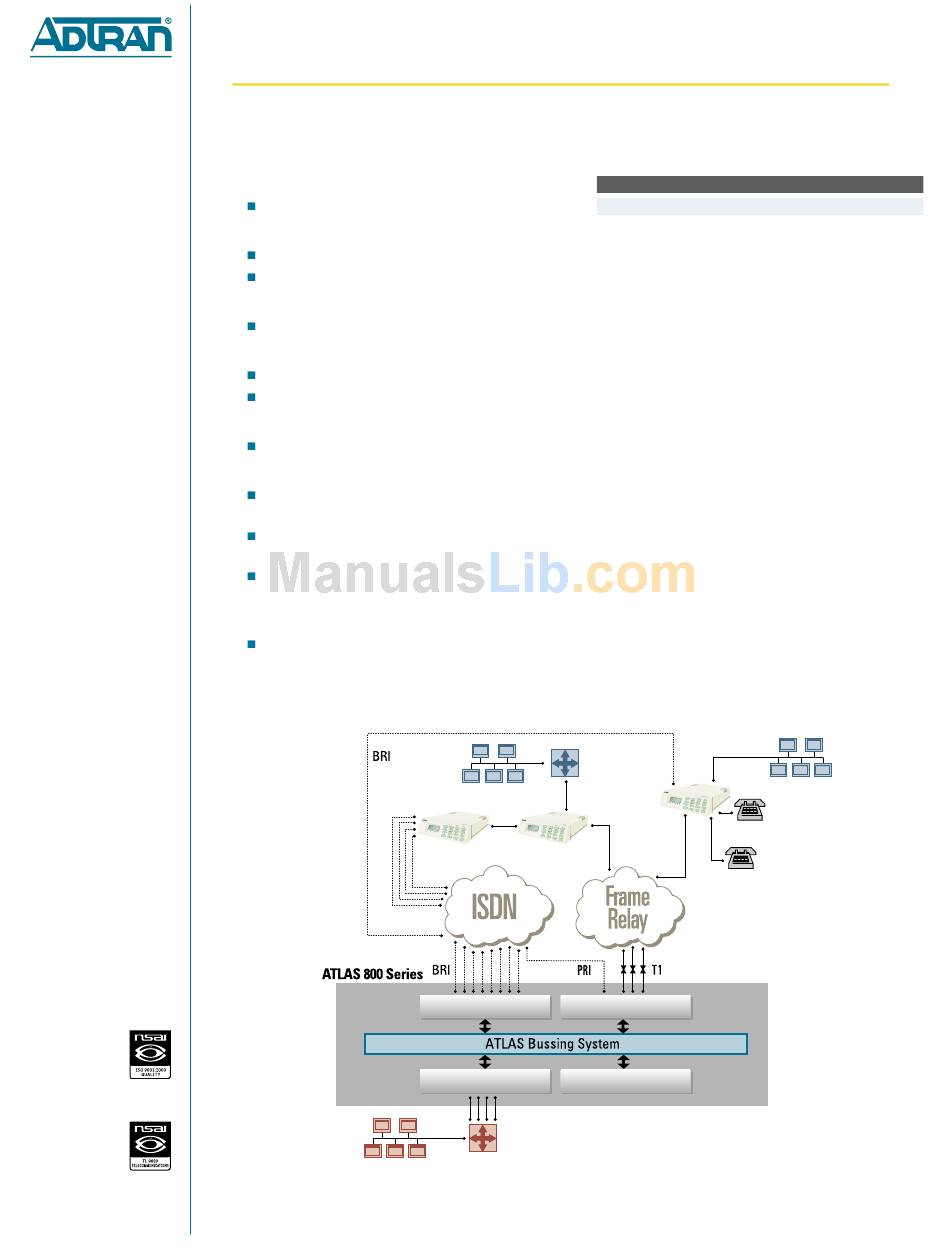

As an example, a single Nx56/64 BONDING
Module is capable of:
Session Type
In addition to the specific configurations
described in the above table, it is possible to
configure ATLAS for a combination of IMUX
speeds, e.g., six 512 kbps sessions and eight
128 kbps sessions. Multiple Nx56/64 BONDING
Modules can be installed in an ATLAS system to
increase capacity.
Ethernet LAN
ISU 512 TSU IQ
Octal BRI Quad T1/PRI
Quad Nx56/64 IMUX-56/64
Router
Maximum
128k 32
384k 10
512k 8
1536k 2
2048k 2
Ethernet LAN
Express
Phone
5210
Phone
Part #
1200262L1
