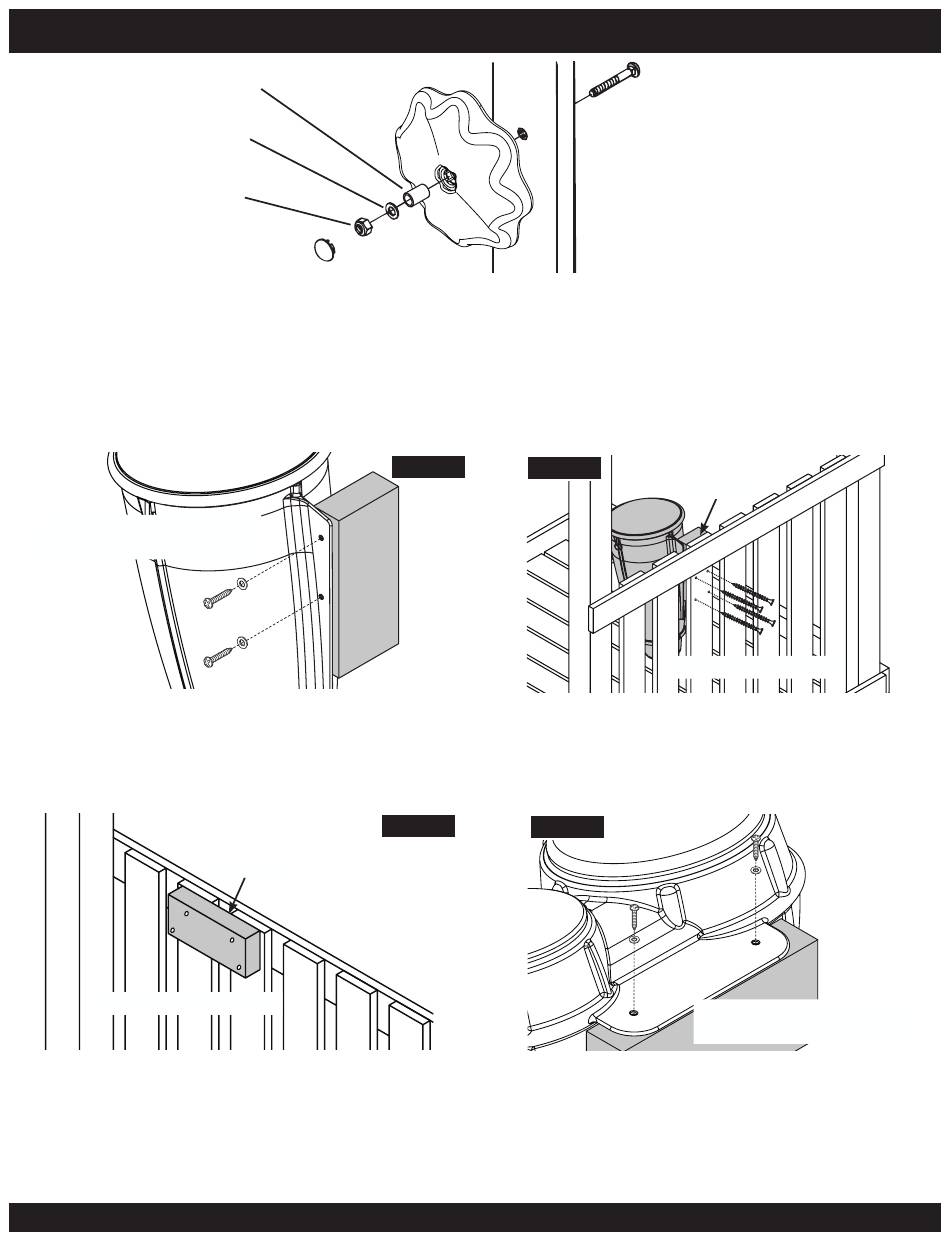

Playcore Rain Wheel Mounting Instructions

Flat washer
Loc nut
Rain Wheel Cap
1. Choose a desired location for the Rain Wheel and drill a 5/16" diameter hole through the lumber.
NOTE: If lumber is greater than 2" in depth, you will need to counterbore the hole appropriately.
2. Tap Carriage Bolt into wood to allow threads to start easily.
3. Mount Rain Wheel to climbing unit. Note: Do not overtighten Bolt. Wheel should spin.
4. Snap Rain Wheel cap into place.
(2) 1/4'' Washers
(2) 1'' Truss Head Screws
1. Mount the Babaloo to the 2'' x 4'' x 8-1/4'' support board as shown in (Fig. 1).
2. Choose a desired location for the Babaloo Drum, at least 9'' from any barrier opening.
3. Mount Babaloo and the 2'' x 4'' x 8'' to unit barrier as shown in (Fig. 2).
(4) 2-1/2'' Deck Screws
1. Choose a desired location for the Bongo Drums, at least 9'' from any barrier opening.
2. Attach 2'' x 4'' x 8-1/4'' as shown in (Fig. 3). Make certain 2'' x 4'' is flush with top of barrier.
3. Mount the Bongo Drums to the 2'' x 4'' x 8-1/4'' support board as shown in (Fig. 4).
Note: Barrier removed in image for clarity.
To Purchase Additional Accessory Kits, Please Visit www.swing-n-slide.com
© PlayCore Inc. 2009
Mounting Instructions
Spacer

RAIN WHEEL:

BABALOO DRUM:

FLUSH

BONGO DRUMS:

(Fig. 1)
(Fig. 2)
(Fig. 3)
(Fig.4)
Printed In USA
Carriage Bolt
FLUSH
(4) 2'' Deck Screws
(2) 1/4'' Washers
(2) 1'' Truss Head Screws
LA 6045
