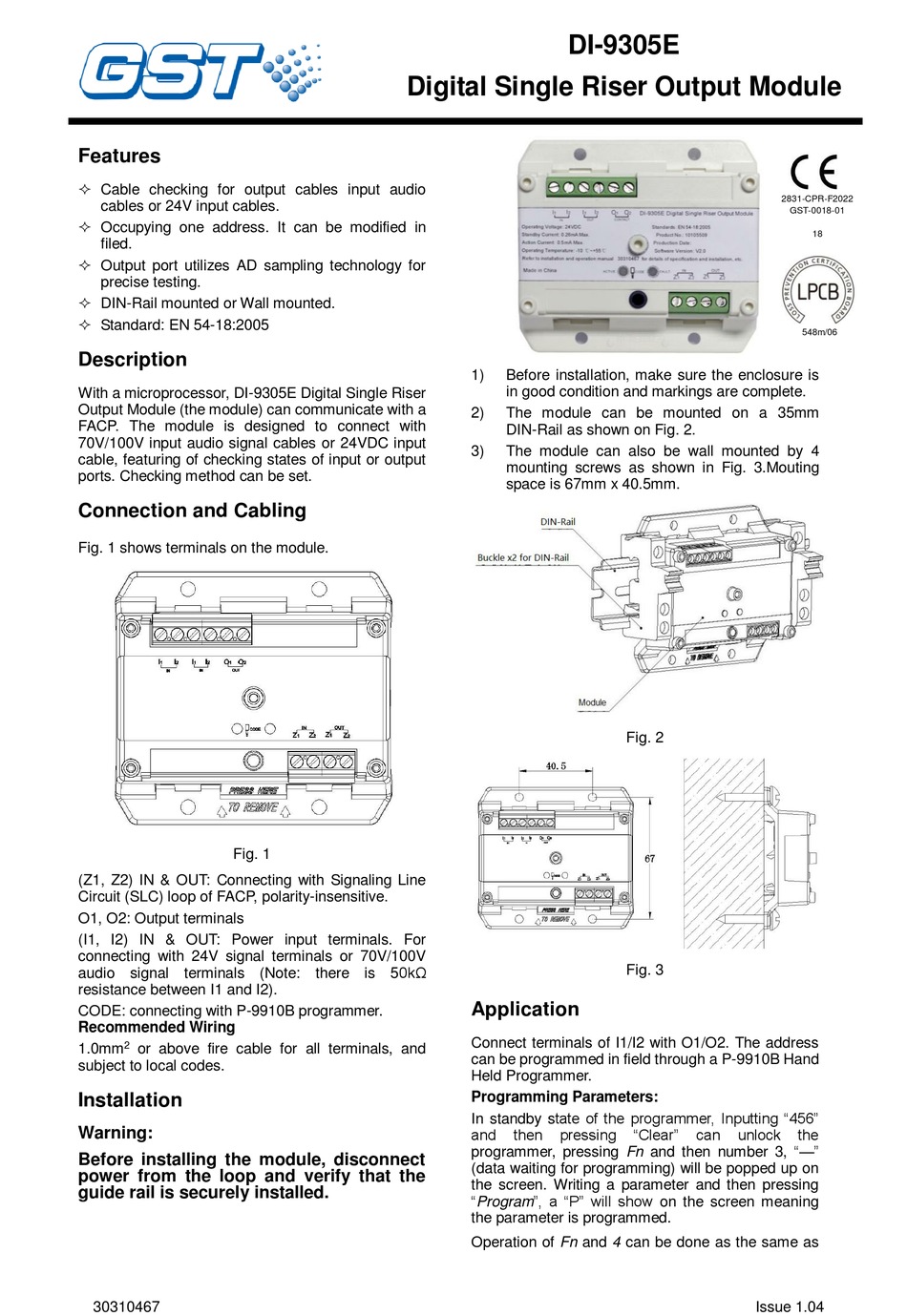

GST DI-9305E Quick Start Manual

Features
 Cable checking for output cables input audio
cables or 24V input cables.
 Occupying one address. It can be modified in
filed.
 Output port utilizes AD sampling technology for
precise testing.
 DIN-Rail mounted or Wall mounted.
 Standard: EN 54-18:2005
Description

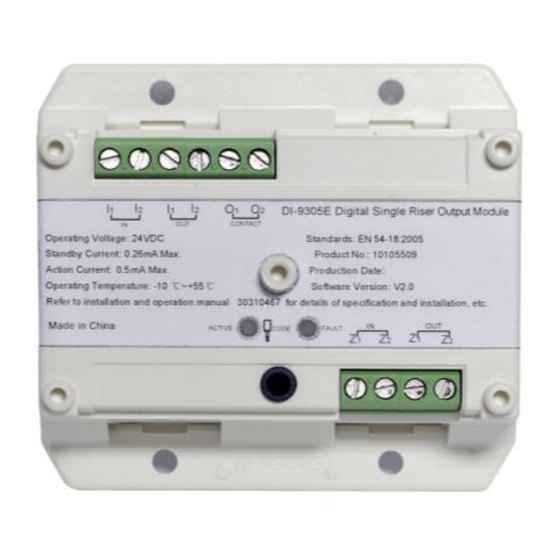

With a microprocessor, DI-9305E Digital Single Riser
Output Module (the module) can communicate with a
FACP. The module is designed to connect with
70V/100V input audio signal cables or 24VDC input
cable, featuring of checking states of input or output
ports. Checking method can be set.
Connection and Cabling
Fig. 1 shows terminals on the module.
Fig. 1
(Z1, Z2) IN & OUT: Connecting with Signaling Line
Circuit (SLC) loop of FACP, polarity-insensitive.
O1, O2: Output terminals
(I1, I2) IN & OUT: Power input terminals. For
connecting with 24V signal terminals or 70V/100V
audio signal terminals (Note: there is 50kΩ
resistance between I1 and I2).
CODE: connecting with P-9910B programmer.
Recommended Wiring
2
1.0mm or above fire cable for all terminals, and
subject to local codes.
Installation
Warning:
Before installing the module, disconnect
power from the loop and verify that the
guide rail is securely installed.
30310467
DI-9305E
Digital Single Riser Output Module
1) Before installation, make sure the enclosure is
in good condition and markings are complete.
2) The module can be mounted on a 35mm
DIN-Rail as shown on Fig. 2.
3) The module can also be wall mounted by 4
mounting screws as shown in Fig. 3.Mouting
space is 67mm x 40.5mm.
Application
Connect terminals of I1/I2 with O1/O2. The address
can be programmed in field through a P-9910B Hand
Held Programmer.
Programming Parameters:
In standby state of the programmer, Inputting "456"
and then pressing
programmer, pressing Fn and then number 3, "—"
(data waiting for programming) will be popped up on
the screen. Writing a parameter and then pressing
"Program", a "P" will show on the screen meaning
the parameter is programmed.
Operation of Fn and 4 can be done as the same as
2831-CPR-F2022
GST-0018-01
Fig. 2
Fig. 3
"Clear" can unlock
Issue 1.04
18
548m/06
the
