Megmeet MTCW Series Quick Start Manual

MTCW series thermostat quick start
Thank you for using MTCW series thermostat of Megmeet . Before using
the product, please carefully read this booklet so as to better understand
it, fully use it, and ensure safety.
This user manual is to offer you a quick guide to the design, installation,
connection and maintenance of MTCW series thermostat, convenient for
on-site reference. Briefly introduced in this booklet are the hardware
specs, features, and usage of MTCW series thermostat, plus the
optional parts and FAQ for your reference.
For more information, see the MTCW series thermostat user manual.
This manual is suitable for the following members of the MTCW series:
MTCW-16-NN
MTCW-12-NT
MTCW-08-NT1
MTCW-08-NV
MTCW-08-CT
Vesion：1.2
Data：2017-10-26
BOM：R33010365

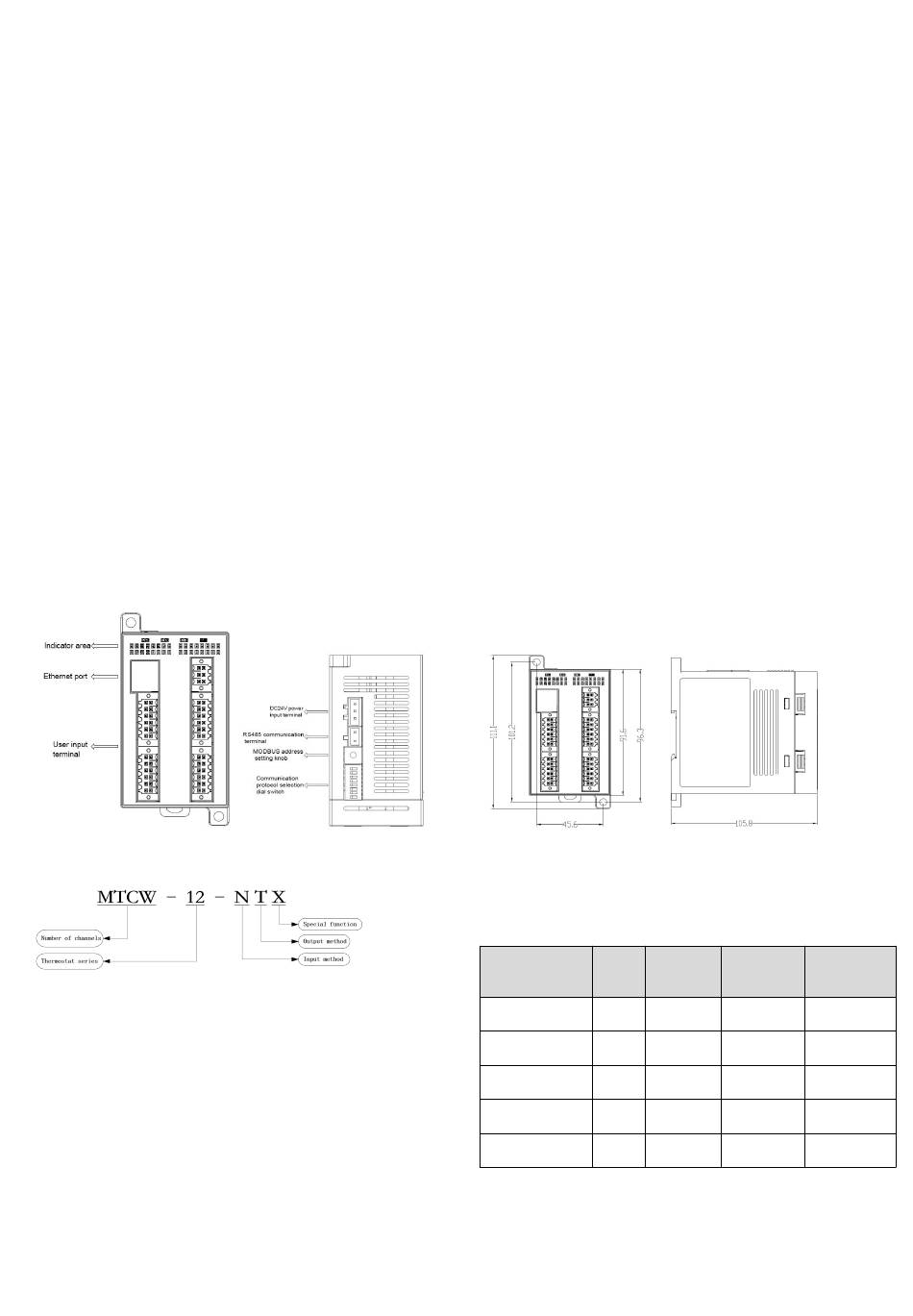

1. Appearance and part name
2. Introduction
Input method： N:No current detection input
C:Current detection input
Output method： R:Relay output
T:Transistor output
V:Voltage output
M:Mixed output
N:No output
Special function ： Depending on the function, use 1, 2, 3...... To
distinguish.
3. Installation
3.1 Environment temperature
Ambient temperature range: -5℃ ~ 55℃. When the ambient
temperature exceeds 55℃ for a long time, it is best to choose a place
with good ventilation.
3.2 Installation occasion
◆ No corrosion, flammable and explosive gas and liquid places.
◆ Secure vibration-free areas.
This product is designed for installation of environmental II
◆
standard, pollution level 2 applications.
3.3 Installation method
The product shall be installed horizontally on the back panel of the
electric cabinet, and the distance between the product and the
equipment or cabinet wall above and below shall be no less than 20cm.
Installation in other directions is not conducive to the product itself heat,
and the product under the heat must not have equipment.
Install and fix with DIN slot
DIN slot of 35mm width can be used for installation under low vibration
environment. Open the DIN clasp at the bottom of the module and clip
the bottom of the module on the DIN guide rail; The rotating module is
close to the DIN guide rail and close the DIN clasp. Carefully check
whether the DIN clasp on the module is tightly fixed with the DIN guide
rail.
Install and fix with screws
In case of large vibration, screws must be used to fix the module. M3
can be used to fix the module on the back plate.
The overall size and mounting hole size of this module are shown in
the following. Figure.
3.4 Cable connection and specification
When wiring products, it is recommended to use multiple copper wires
and prefabricate insulated terminals to ensure the quality of wiring. The
recommended cross sectional area and type of wire are shown in the
following table.
Cable Position
Communication
Side
terminal（3PIN）
Communication
Side
terminal(2PIN)
Ethernet（RJ45） Top
User input
Top
terminal （12PIN）
Communication
Top
terminal（6PIN）
For security (to prevent electric shock and fire accident), and reduce
the noise, the module of grounding terminal shall be in strict
accordance with the national electrical code requirements, grounding
resistance should be less than 100 Ω. When more than one module
is grounded, single point grounding should be adopted. The ground
Allowed Recommended installation
cable stripping
number length
Screw
12～30AWG 6.5mm
mounting
Screw
12～30AWG 6.5mm
mounting
Ethernet In-line
/
cable installation
In-line
16～26AWG 10～15mm
installation
In-line
16～26AWG 10～15mm
installation
1
