MTC-04-NTR Thermostat User Manual
Thank you for using Megmeet MTC-04-NTR module. Before using the
PLC product, please carefully read this booklet so as to better
understand it, fully use it, and ensure safety.This user manual is to offer
you a quick guide to the design, installation, connection and
maintenance of MTC-04-NTR module, convenient for on-site reference.
Briefly introduced in this booklet are the hardware specs, features, and
usage of MTC-04-NTR module, plus the optional parts and FAQ for
your reference.
This manual MTC-04-NTR module for the following members:
MTC-04-NTR Thermostat User Manual
Version 1.0
Revision date July 16, 2012
BOM

1.Introduction

Model description as 1-1.
M TC 04
N TR
-
-
Table 1-1 Module Description

2.Wiring Instructions

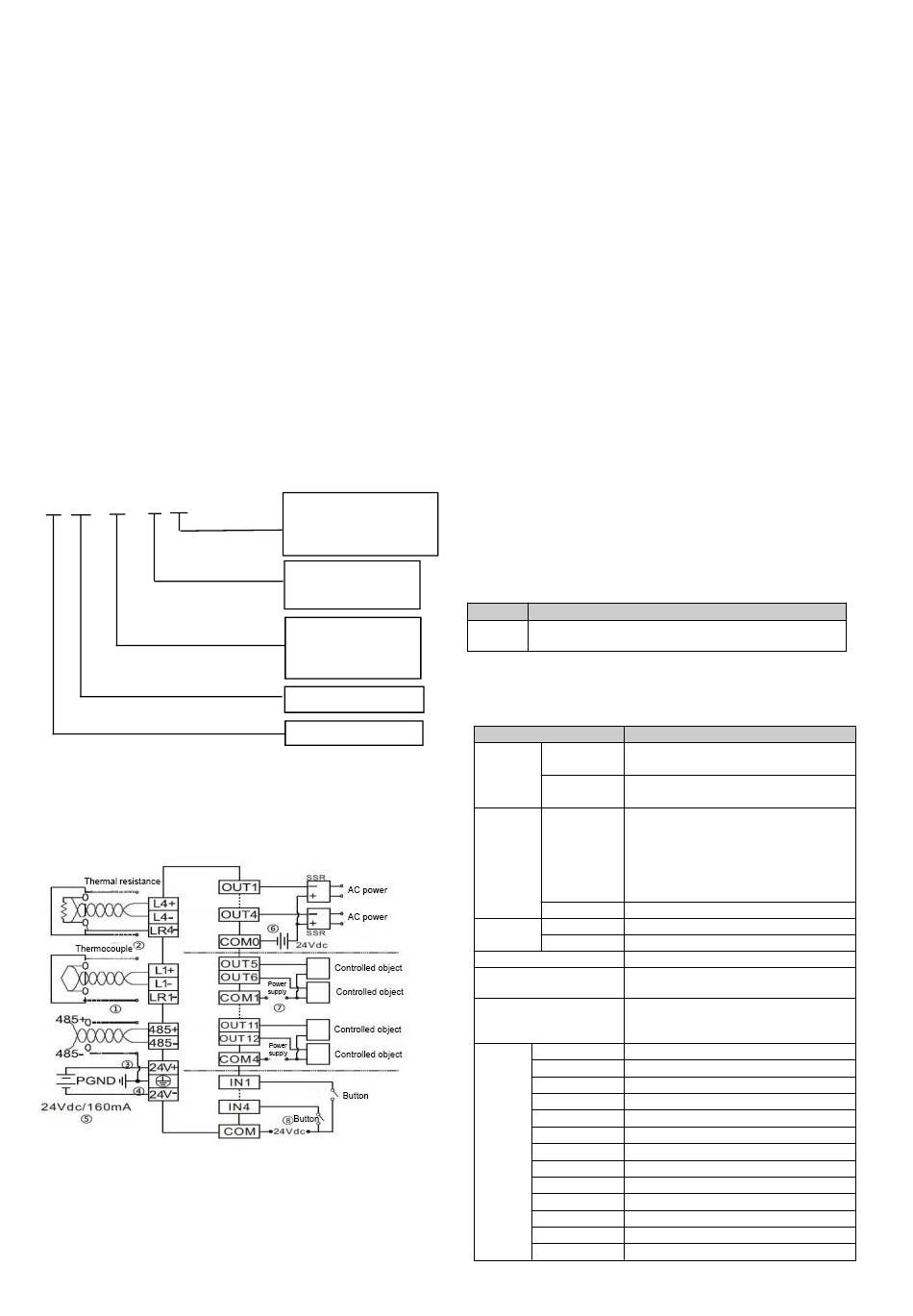

User input wiring terminals shown in figure 2-1.
Table 2-1 MTC-04-NTR enter the user terminal wiring diagram
Figure ① ~ ⑦ wiring must be noted that seven aspects:
①The thermocouple (thermal resistance) signal is recommended to be
accessed via a shielded cable (connection cable). Cables should be
kept away from power lines or other wires that may cause
electromagnetic interference. It is recommended to use cables less
TR: transistor and relay
temperature control, 8 relay
alarm, 4 I/O input mode.
Input method
N: No CT (Current test)
Input
The same input and
output channels of
channel number and
module number
Thermostat
Megmeet
than 100 meters in length (connecting cables). There is impedance in
the cable (connecting cable), which will introduce measurement error.
Characteristic adjustment can solve this problem. For specific operation,
please refer to "MTC-04-NTR
②Thermal resistance (type Pt100, JPt100, Cu100, Cu50)
required the three-wire connection.
③ If there is too much electrical interference, the shield wire
(thermocouple compensationcable shielding terminal, thermal
resistance of the connecting cable shielding terminal 485 linescreen)
should be connected to ground terminal PG.
④The thermostat grounding PG should be good grounding.
⑤24V power supply can use the main output of 24Vdc auxiliary power
supply module, you can also use the other to meet the
requirements of power.
⑥ 3.2 user basis having the output performance indicators to select
the appropriate power supply and solid state relays
⑦ Relay output control, power supply ≤DC30V or ≤AC250V, current
≤2A.
⑧ 4 external input support source input and sink input, input voltage
range DC18V ~ DC28V.
Note: please do not connect the 220VAC to OUT1 ~ OUT4 output
by mistake to avoid burning out the module!

3.Instructions

3.1 Power indicator

The power indicator of MTC-04-NTR is shown in figure 3-1.
Table 3-1 Power indicator
Project
24Vdc (-15% ～ 20%), the maximum allowable ripple
Power
voltage 5%, maximum power consumption 160mA.

3.2 Performance indicators

Table 3-2 Performance indicators
Project
K、J、E、N、T、R、S、B（Applicable
Thermocouple
type
to each channel）
Input signal
Pt100、Cu100、JPt100、Cu50、Ni120
Thermal
resistant type
（Applicable to each channel）
Power supply voltage circuit： 5V～24V；
The biggest power supply voltage
The output
circuit： 30V； Loop current： 0.3A/24Vdc；
gate open
Output
leakage current when open：＜
transistor
method
0.1mA/30Vdc；Minimum load：5mA
（5Vdc～24Vdc）
Delay output ≤DC30V or ≤AC250V; Current≤2A
Input method Support source input and sink input
Input port
Voltage range DC18V~DC28V
Sampling period 100 milliseconds or 1 second (optional)
0.1~2seconds or 1～100
Control cycle
default value for 0.2s or 2s
ON/OFF control，Hand control，PID
Control method
control.Heating and cooling PID
control①
Type K
－100℃～1200℃（－148℉～2192℉）
Type J
－100℃～600℃（－148℉～1112℉）
Type E
－100℃～850℃（－148℉～1562℉）
Type N
－100℃～1200℃（－148℉～2192℉）
Nominal
Type T
－200℃～300℃（－328℉～572℉）
Type R 0℃～1600℃（32℉～2912℉）
Temperat
Type S 0℃～1600℃（32℉～2912℉）
ure Rang
Type B
400℃～1800℃（752℉～3272℉）
Pt100
－150℃～600℃（－238℉～1112℉）
e
JPt100
－150℃～500℃（－238℉～932℉）
Cu100
－30℃～120℃（－22℉～248℉）
Cu50
－30℃～120℃（－22℉～248℉）
Ni120
－80.0℃～280.0℃ （－112.0℉～536.0℉）
thermostat user manual".
Instruction
Indicators
seconds，The
