SpeedDome
Optima LT Indoor
Camera Dome
RASEL Series
Installation and Service Guide

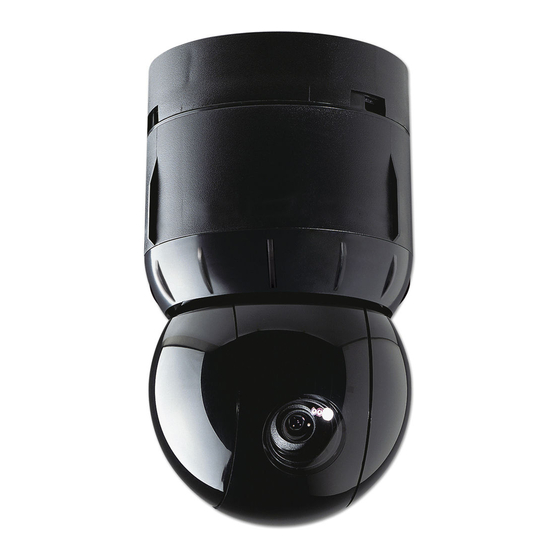

The SpeedDome Optima LT indoor camera dome
mounts either to a hard ceiling or to a 2x2 tile
ceiling using a mounting plate (instructions for the
plate are supplied separately).
CAUTION: Save the box and packing
materials. These materials are required
should you need to ship the dome to a
repair center.
Note: The dome accepts either cable or conduit. If
running cable through a plenum ceiling, either
plenum-rated cable or flexible conduit is required.
© 2006 Sensormatic Electronics Corp.
SPEEDDOME OPTIMA LT INDOOR CAMERA DOME
INSTALLATION AND SERVICE GUIDE
®
Contents
Warnings................................................................2
Before You Begin...................................................3
Installation..............................................................6
Troubleshooting .....................................................9
Parts List for Authorized Users ............................10
Specifications.......................................................12
Declarations .........................................................14
1 of 14
8200-0181-01, REV. E
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for American Dynamics SpeedDome Optima LT
Summary of Contents for American Dynamics SpeedDome Optima LT
-
Page 1: Table Of Contents
Optima LT Indoor Camera Dome RASEL Series Installation and Service Guide The SpeedDome Optima LT indoor camera dome mounts either to a hard ceiling or to a 2x2 tile ceiling using a mounting plate (instructions for the plate are supplied separately). -
Page 2: Warnings
This installation should be made by a qualified service person and should conform to all local codes. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE EU power requirements: This product runs on 24Vac. In the EU, it is intended to be powered from a Limited Power Source. -
Page 3: Before You Begin
SensorNet, RS-422 and Manchester networks. For more information about communication protocols and cable networks, see Communication Protocols and Cable Networks, 8000-2573-19. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE Data cable requirements SensorNet Cable type 1 unshielded,... -
Page 4: Twisted Pair Adapter
American Dynamics Dome Or Fixed Camera Cat 2-6 UTP Cable Video Switcher/ Controller SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE Table 1. Maximum cable length and worst-case low line voltages AC Power Source 1-position SensorNet RJ1SNUD, RS856UD... - Page 5 0 (black dot), and SW1 to 7. Compatibility with the VM96 Controller If using a VM96 controller, the controller must be Version 5.2 or higher. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE Power-Up Routine After power is connected to the dome, the dome performs a homing routine.
-
Page 6: Parts Required
2. For ease of installation, adjust the two “swing out” mounting clips for ceiling thickness. Mounting Clip SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE 3. To expose connectors and settings at the top of the dome, remove the cover plate by removing one screw and loosening the other. - Page 7 Otherwise, the dome will operate during installation. 14. Reattach the cover plate to the dome housing. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE 15. Using safety wire, attach the dome to a strong structural ceiling member as follows: a.
-
Page 8: Troubleshooting
See “Troubleshooting” for an explanation of the LED patterns. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE 19. Once the homing routine completes, affix the bubble to the dome as follows: a. -
Page 9: Troubleshooting
Green flickers* connected. *Fix wiring. 2. Reset the dome to the desired address. SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE No video. 1. Check the video cable and its connection to the dome. If not OK, fix or replace the cable. -
Page 10: Parts List For Authorized Users
The following parts can only be ordered by authorized users. To become authorized, contact your sales representative. 1, 2 5, 6 SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE General Chassis Assembly, NTSC Chassis Assembly, PAL Housing Assembly... - Page 11 Tilt Assy. 0400-1207-01/-02 Base Assy. 0404-0008-01 SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE 11 of 14 10, 11 8200-0181-01, REV. E...
-
Page 12: Specifications
Minimum illumination... 1.0 lux (20 IRE) Gain control ... Automatic (AGC) White balance... Through the Lens (TTL) White Balance (ATW) SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE NTSC version Pickup device... 768 (H) x 494 (V) pixels Scanning ... -
Page 13: Mechanical Specifications
Wire configuration ...Single unshielded twisted pair UTP 22AWG non-polarized Connector... Plug-in Euro-style terminal block 5.08mm Terminating resistor ... 120 ohms, switch selectable SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE EIA-422 Communications Network Distance... 1km Maximum Loads... 10/node Cable topologies ... -
Page 14: Declarations
SPEEDDOME OPTIMA LT INDOOR CAMERA DOME INSTALLATION AND SERVICE GUIDE Other Declarations Thank you for using American Dynamics products. We support our products through an extensive and worldwide network of dealers. The dealer, through whom you originally purchased this product, is your point of contact if you have a need for service or support.
