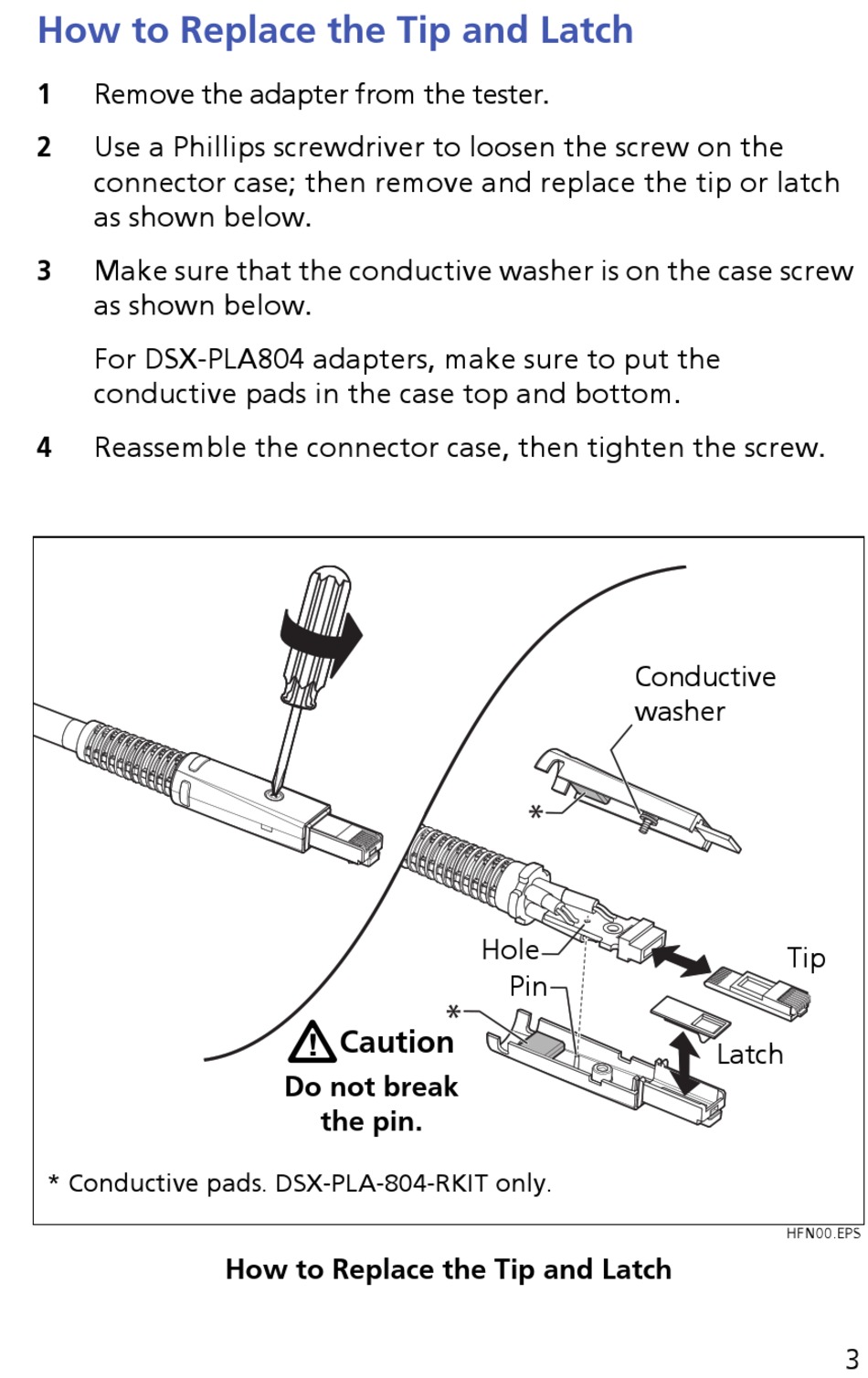

How to Replace the Tip and Latch

Remove the adapter from the tester.
1
Use a Phillips screwdriver to loosen the screw on the
2
connector case; then remove and replace the tip or latch
as shown below.
Make sure that the conductive washer is on the case screw
3
as shown below.
For DSX-PLA804 adapters, make sure to put the
conductive pads in the case top and bottom.
Reassemble the connector case, then tighten the screw.
4
* Conductive pads. DSX-PLA-804-RKIT only.
W
Caution
Do not break
the pin.
How to Replace the Tip and Latch
Conductive
washer
Hole
Pin
Tip
Latch
HFN00.EPS
3
