Fluke DSX-CHA003S User Manual

Coaxial cable adapters
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

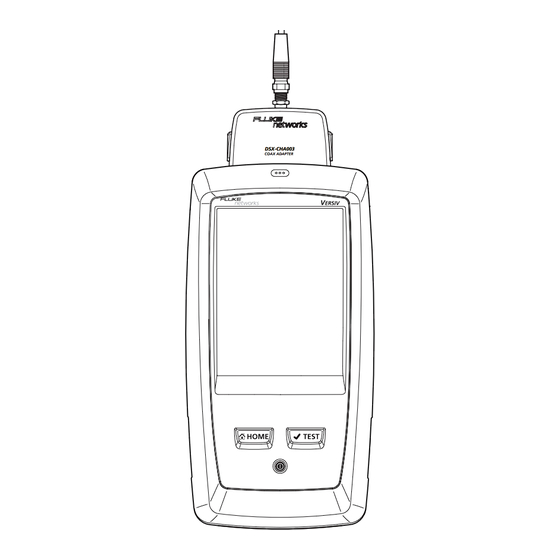

The DSX-CHA003 coaxial adapters let you use the DSX CableAnalyzer
coaxial cabling for network and video applications.
The coaxial cabling kit has these items:
Two DSX-CHA003 adapters
Two female to female F-connector adapters
Two F-connector female to BNC female adapters
One 12 inch (30 cm) 75 coaxial patch cord with male F-connectors
Safety Information
To prevent possible fire, electric shock, or personal injury, read the
safety information in the documentation supplied with the modules
and the Versiv
To prevent damage to the tester, adapters, and cables under test, to
prevent data loss, and to make sure your test results are as accurate
as possible, set the reference for coaxial cable before you use the
coaxial adapters for the first time, and approximately every thirty
days after that.
PN 4579835 November 2014, Rev. 1 8/2015
2014-2015 Fluke Corporation
All product names are trademarks of their respective companies.
Warning
units before you use the tester.
™
Caution
Visit us at www.TestEquipmentDepot.com
DSX-CHA003S
Coaxial Cable Adapters
Users Guide
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
to certify
™

Advertisement

loading

Related Manuals for Fluke DSX-CHA003S

Summary of Contents for Fluke DSX-CHA003S

  • Page 1: Safety Information

    99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com PN 4579835 November 2014, Rev. 1 8/2015 2014-2015 Fluke Corporation All product names are trademarks of their respective companies.
  • Page 2 Set the Reference for Coaxial Tests The reference procedure for coaxial tests sets the baseline for insertion loss and resistance measurements. Set the reference at these times:  When you want to use the tester with a different module. The tester can save reference values for eight different pairs of modules.
  • Page 3 End not found for the length measurement. For More Information For more information on coaxial tests and results, see the documentation supplied with your tester and available on the Fluke Networks website.
  • Page 4 Data network Disconnect all drop cables DSX-CHA003 DSX-CHA003 COAX ADAPTER COAX ADAPTER IP cameras Surveillance network Router Coaxial segment MoCA MoCA DSX-CHA003 DSX-CHA003 adapter adapter COAX ADAPTER COAX ADAPTER Cable TV Note: Do not connect the testers to splitters. DSX-CHA003 DSX-CHA003 COAX ADAPTER COAX ADAPTER...

  • Page 5: Specifications

    If an adapter does not operate correctly, look for damage to the adapter’s connectors. Make sure that the adapter is latched tightly to the tester. For service on the adapters, speak to a Fluke Networks representative for information on service centers.
  • Page 6 LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase, unless stated otherwise herein. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated.
