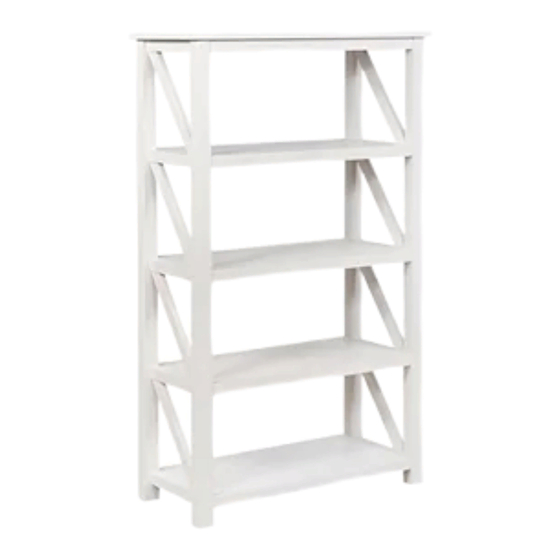

SONOMA CAMERON 4 TIER BOOKCASE ASSEMBLY INSTRUCTIONS
PART LIST
A
B
C
D
E
F
G
H
FOR MISSING OR INCORRECT PARTS/HARDWARE, CONTACT THE MANUFACTURER'S CUSTOMER SERVICE DIRECTLY AT
SAVE THESE INSTRUCTIONS
ASSEMBLE ON A FLAT, PROTECTED SURFACE
FIGURE
1-847-608-5202 OR CUSTOMERSERVICE@HOMECIAO.COM
QUANTITY
1 PC
4 PCS
1 PC
1 PC
20 PCS + 1 PC
20 PCS + 1 PC
10 PCS + 1 PC
1 PC
DESCRIPTION
TOP
SHELF
RIGHT SIDE FRAME
LEFT SIDE FRAME
BOLT
FLAT WASHER
WOOD DOWEL
ALLEN WRENCH
1
Advertisement
Table of Contents
Related Manuals for Sonoma CAMERON
Summary of Contents for Sonoma CAMERON
- Page 1 SAVE THESE INSTRUCTIONS SONOMA CAMERON 4 TIER BOOKCASE ASSEMBLY INSTRUCTIONS ASSEMBLE ON A FLAT, PROTECTED SURFACE FIGURE DESCRIPTION PART LIST QUANTITY 1 PC 4 PCS SHELF 1 PC RIGHT SIDE FRAME 1 PC LEFT SIDE FRAME 20 PCS + 1 PC...
- Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) STEP 1 A. PLACE TOP (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. INSERT WOOD DOWELS (G) INTO THE DOWEL HOLES ON TOP FRAME (A) AS SHOWN. STEP 2 A. INSERT WOOD DOWEL (G) INTO THE DOWEL HOLES ON SHELVES (B) AS SHOWN.
- Page 3 ASSEMBLY INSTRUCTIONS (CONTINUED) STEP 4 A. ATTACH LEFT SIDE FRAME (D) TO ASSEMBLED UNIT FROM STEP 3 WITH BOLTS (E), FLAT WASHERS (F) AND LOOSELY TIGHTEN USING ALLEN WRENCH (H). STEP 5 A. ROTATE THE BOOKCASE UPSIDE DOWN ON A FLAT, PROTECTED SURFACE.
- Page 4 SAVE THESE INSTRUCTIONS ANTI-TIP HARDWARE MOUNTING INSTRUCTIONS FOR DRYWALL PHILIPS HEAD SCREW DRIVER, DRILL, 7/32" DRILL BIT NEEDED FOR ASSEMBLY; NOT INCLUDED. FOR SAFETY REASONS, WE RECOMMEND THAT YOU INSTALL THE INCLUDED ANTI-TIP HARDWARE TO HELP PREVENT THE BOOKCASE FROM UNEXPECTEDLY TIPPING OR SHIFTING. THE INCLUDED MATERIALS ARE DESIGNED TO MOUNT THE ANTI-TIP HARDWARE TO DRYWALL.
- Page 5 SAVE THESE INSTRUCTIONS ANTI-TIP HARDWARE MOUNTING INSTRUCTIONS FOR DRYWALL STEP 2 A. USE SHORT SCREWS (J) TO ATTACH THE OTHER END OF MOUNTING BRACKET (K) TO THE CENTER OF SHELF FRAME OF THE FIRST TIER OF THE BOOKCASE. B. TIGHTEN SHORT SCREWS (J) BY USING PHILLIPS HEAD SCREWDRIVER (NOT INCLUDED).
