Aquadart venturi 8 Installation Instructions Manual

Side panel
Hide thumbs Also See for venturi 8:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Side Panel

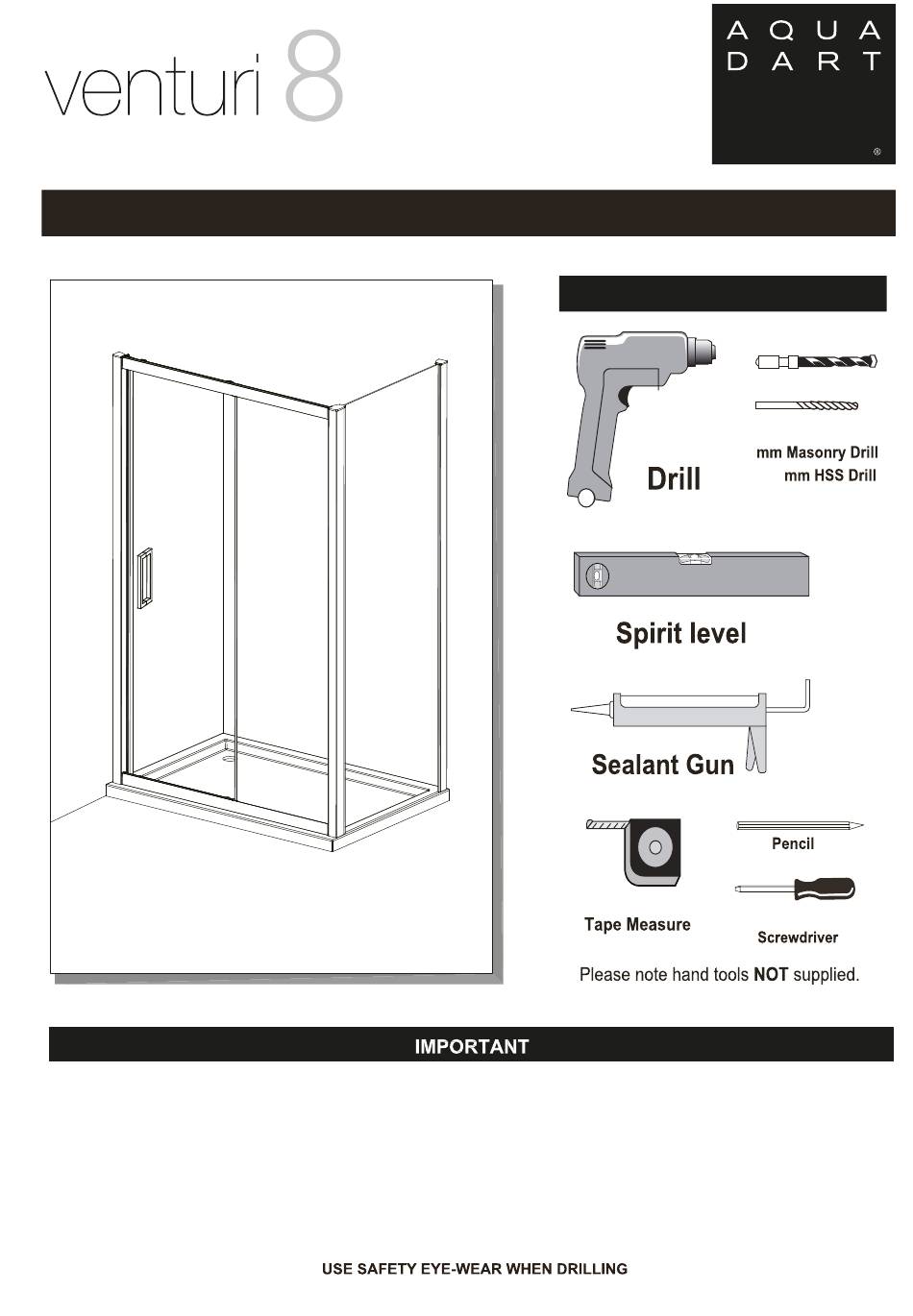

INSTALLATION INSTRUCTIONS
Note:
Instruction shows fitting of a Side panel with a Sliding
door as an example only.
This Side panel can fit with the Sliding door, Hinge door,
Pivot door, Bi-fold door and Inline panel etc.
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.
www.aquadart.co.uk
Tools Required
6
2.75
PH2 TYPE

Advertisement

loading
Need help?

Need help?

Do you have a question about the venturi 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquadart venturi 8

Summary of Contents for Aquadart venturi 8

  • Page 1 Side Panel INSTALLATION INSTRUCTIONS www.aquadart.co.uk Tools Required 2.75 Note: Instruction shows fitting of a Side panel with a Sliding door as an example only. PH2 TYPE This Side panel can fit with the Sliding door, Hinge door, Pivot door, Bi-fold door and Inline panel etc.

  • Page 2: Box Contents

    COMPONENTS AND BOX CONTENTS Box Contents Image Cover Strip Profile Cover Strip Clip Corner Post Top Cap(L/R) Screws ST 4X12 Note: Further part details for fixing kit available on page 2...
  • Page 3 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit www.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Step 1 Step 1 Step 2.2 Step 1. Drop the silicone into the groove of the raill profiles along with the pre-fitted seal,then push the top and bottom profiles into the fixed glass panels make sure the fixed glass panels are pushed into the gaskets fully as shown(A). Step 2 Step 1 Step 2.
  • Page 5 Step 3.1 Step 3.1 Step 3.1 Step 3.1 Step 3.2 Step 3.2 Step 3.1 & 3.2 Step 3. 3.1 Push the wall profiles ( packed with the door ) to the assembled frame and side panel. 3.2 Push the side panel to the assembled frame. Step 4.2 Step 4.4 Step 4...
  • Page 6 Step 5.1 Step 5.2 Step 5. Step 5.1 5.1 Insert the frame into the wall profile. 5.2 Fix the other wall profile using screws ST4× 30. Step 6. Adjust the frame and side panel to ensure that they are central between the wall profiles and corner post and level against the shower tray at the base.
  • Page 7 Step 8.1 Step 8.1 Step 8.2 Step 8. 8.1 Fix the frame to the wall profiles using the screws ST4 × 12 (4 per wall profile). 8.2 Fix the frame to side panel using the screws ST4 × 12. Step 9 Step 9 Ste 9.
  • Page 8 Applying Silicone Sealant 24 HRS Sealing Inside DO NOT USE THE Seal from the top of the wall profile to the bottom on the INSIDE between the wall profile and the wall. ENCLOSURE FOR IMPORTANT: Do not apply sealant on inside of the tray. 24 HOURS AFTER Sealing Outside Seal from the top of the wall profile to the bottom between the...
  • Page 9 Riverside Business Park,Royd Ings Avenue,Keighley, West Yorkshire,BD21 4AF 01535 613830 Technical:01535 613830 Fax: 01535 613831...
