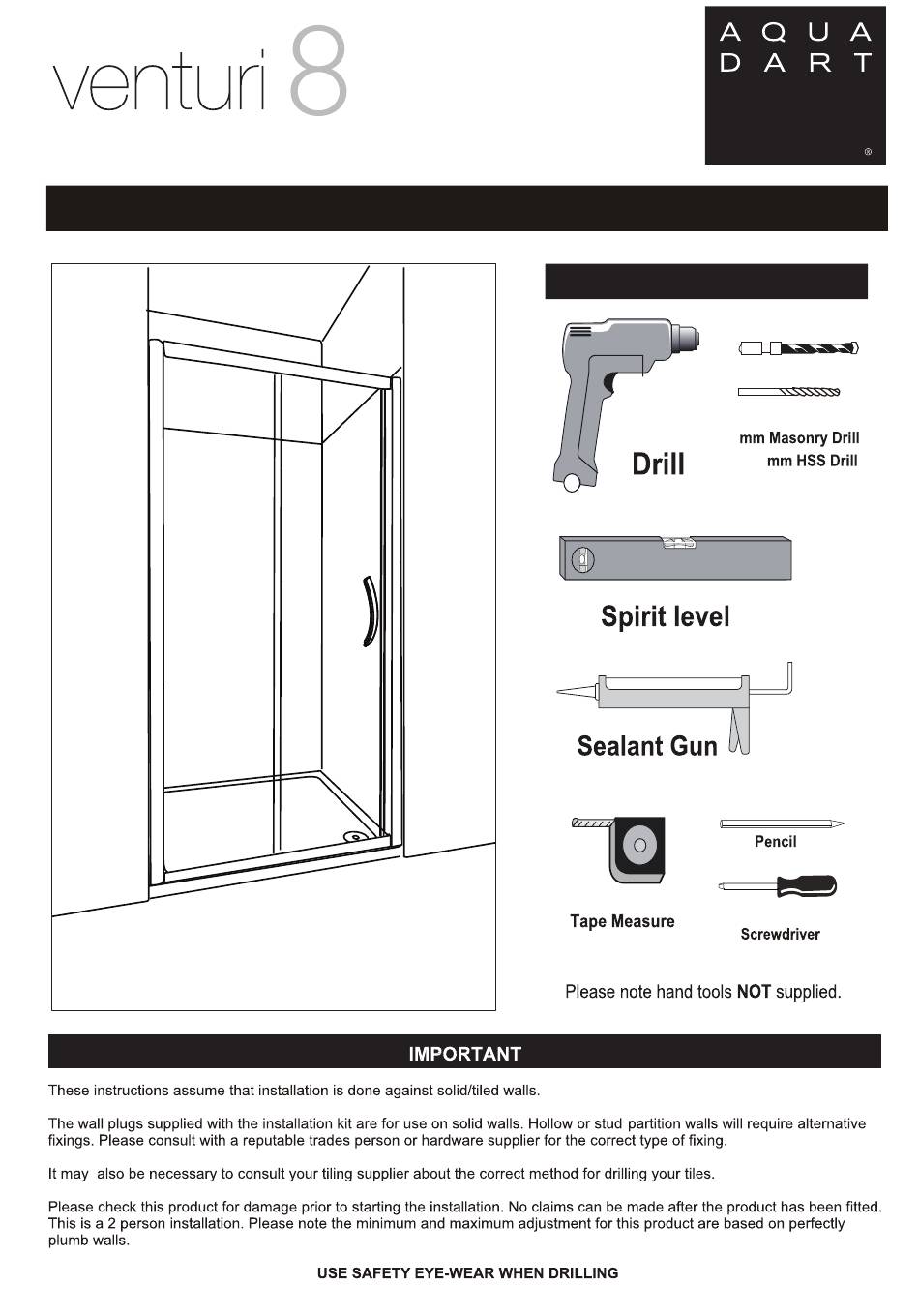

- Page 1 Slider INSTALLATION INSTRUCTIONS www.aquadart.co.uk Tools Required 2.75 PH2 TYPE...
-
Page 2: Box Contents
COMPONENTS AND BOX CONTENTS Box Contents Description Description Horizontal Profile Cap-R Wall Profile 1 SET Glass Clip Cover Profile Upright Profile Soft Closing Buffer 1 SET Closing Profile Profile Clip Horizontal Profile Top Roller U Shape Seal Bottom Roller Handle Seal Door Seal Wall Plug... - Page 3 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit ww w.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
-
Page 4: Installation Instructions
Slider INSTALLATION INSTRUCTIONS 1 - Install the shower tray following the tray installation guide. 2a - Drop the silicone into the groove of the raill profile along with the pre-fitted seal,then push 1x horizontal rail onto the bottom of the fixed panel. 2b –... - Page 5 Slider INSTALLATION INSTRUCTIONS 3 - Push the wall channels onto the edges the assembly as illustrated and then position the assembly onto the shower tray as shown (roughly 10mm from the front of the tray). Level the wall channels using a spirit level and mark the 3 pre-drilled screw points through each of the wall channels onto the wall.
- Page 6 Slider INSTALLATION INSTRUCTIONS 5 - Reposition the assembly and fix the wall channels to the wall using 6 x ST4x45 long screws (3 per channel). 6 - Whilst using the available play to ensure wall that the assembly is central between the channels and held against the shower tray at the bottom fix the assembly to the wall chan- nels by drilling through the pre drilled holes...
- Page 7 Slider INSTALLATION INSTRUCTIONS 7 - Push the shorter of the 2 water seals onto the exposed glass edges of the fixed panels, the flap should face into the shower as illustrated. NOTE: If both water seals are the same size then some trimming may be required.
- Page 8 Slider INSTALLATION INSTRUCTIONS 9 - Once the door is ready it needs to be hung in the enclosure , start by lifting the door up and guiding the top support wheels into the top horizontal profile , then using the quick release mechanism on the bottom wheels guide them into the bottom horizontal profile as shown.
-
Page 9: Cleaning Instructions
AFTERCARE Cleaning Instructions It is important to clean your Aquadart shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
