Aquadart Venturi 8 Installation Instructions Manual

Single door quadrant

Advertisement

Quick Links

Single Door Quadrant
INSTALLATION INSTRUCTIONS
www.aquadart.co.uk
Tools Required
8
2.75
PH2 TYPE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Venturi 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquadart Venturi 8

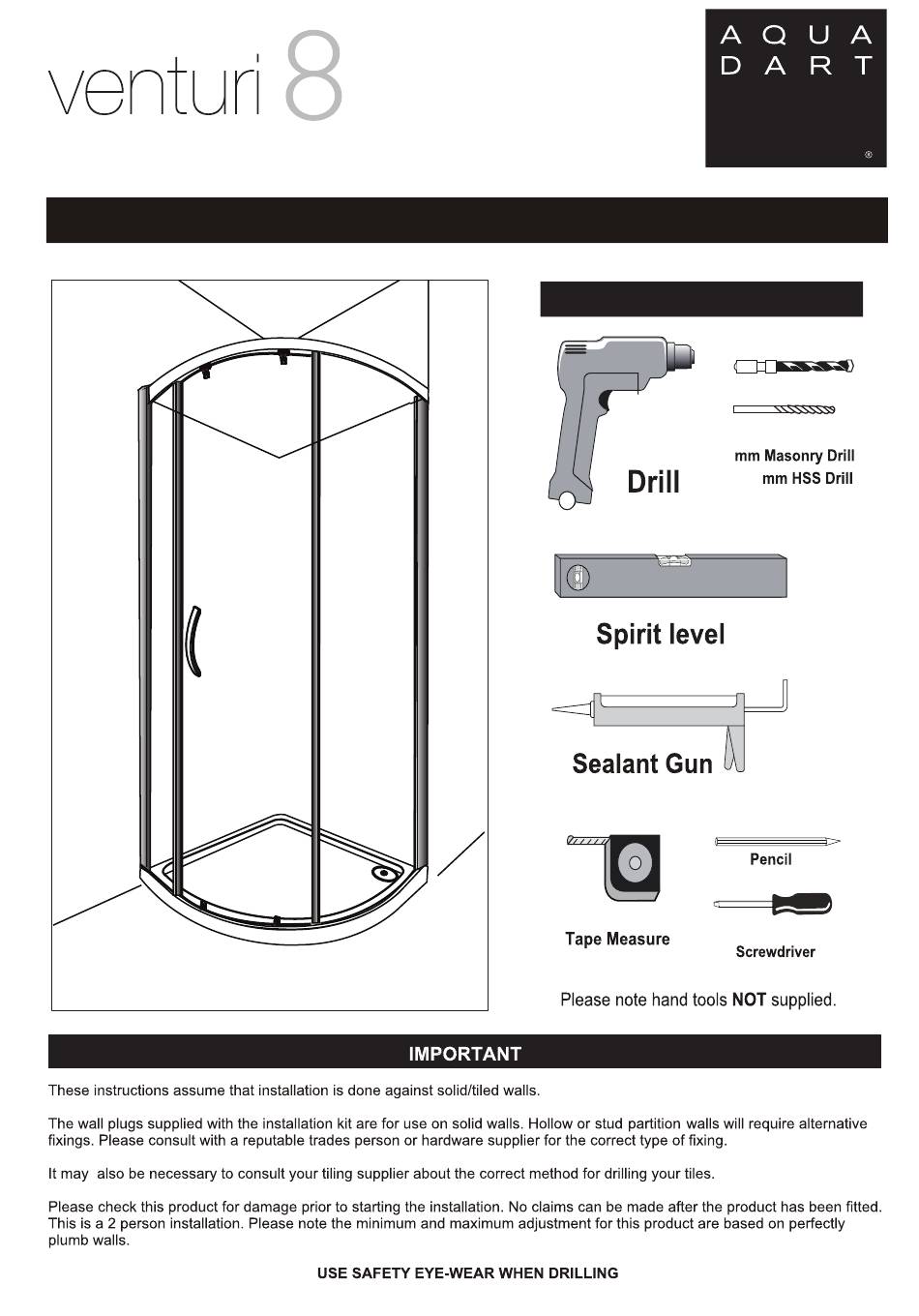

  • Page 1 Single Door Quadrant INSTALLATION INSTRUCTIONS www.aquadart.co.uk Tools Required 2.75 PH2 TYPE...
  • Page 2 COMPONENTS AND BOX CONTENTS Box Contents Description Description Stopper Wall Profile Cover Cap Cover Profile Upright Profile Buffer Soft Closing Buffer 1 SET Horizontal Profile Profile Clip U Shape Seal - A Top Roller U Shape Seal - B Bottom Roller Seal Handle Upright Seal-6-14.5mm...
  • Page 3 IMPORTANT - Missing Components Please check this product for missing components prior to installation. For spare parts visit ww w.aquadart.co.uk IMPORTANT - Installation site 1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
  • Page 4: Installation Instructions

    Single Door Quadrant INSTALLATION INSTRUCTIONS 1 - Install the shower tray following the tray installation guide.
  • Page 5 Single Door Quadrant INSTALLATION INSTRUCTIONS 3a - Drop the silicone into the groove of the raill profile along with the pre-fitted seal,then push 1x horizontal rail onto the bottom of 1x fixed panel. 3b - Insert the horizontal profile cap(left and right) then fix the pieces together using 2 x ST 3.5 x 45 fixing screws through the metal profile of the fixed panels and into the end of the horizontal rail,then attach the other fixed panel to the horizontal profile in the same way.
  • Page 6 Single Door Quadrant INSTALLATION INSTRUCTIONS 5 - Remove the assembly and drill the marked points using an 8 mm masonry drill bit, once this is done insert 6 x wall plugs into the holes. 6 - Reposition the assembly and fix the wall channels to the wall using 6 x ST4x45 long screws (3 per channel)
  • Page 7 Single Door Quadrant INSTALLATION INSTRUCTIONS 7 - Whilst ensuring that the bottom of the assembly is held snug to the shower tray that all parts are level and upright, fix the assembly to the wall channels by drilling through the pre drilled holes in the wall channels into the profiles of the fixed panels using a 2.75 mm metal drill bit.
  • Page 8 Single Door Quadrant INSTALLATION INSTRUCTIONS 9-Attach the handle making sure that the rubber washers that come with the handle are placed Inside enclosure between the handles and the galss. The next step is to push seal No.10 the longer water seal onto the back edge of the door,(the flipper seal should be facing the fixed panel) Outside enclosure Fit the rollers to the door.
  • Page 9 TION INSTRUCTI O Single Door Quadrant INSTALLATION INSTRUCTIONS 11 - Once you are happy that the installation is correct and that the doors are running smoothly, push the cover caps onto the top of the wall channels as shown, (smaller top cap first followed by the larger wall channel top cap).
  • Page 10 AFTERCARE Cleaning Instructions It is important to clean your Aquadart shower enclosure after every use. Please wipe down all glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
