QUICK REFERENCE GUIDE – CLEANING AND DISINFECTION

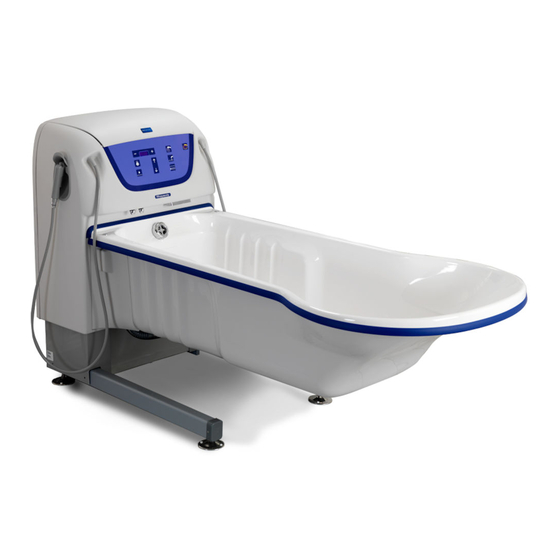

System 2000

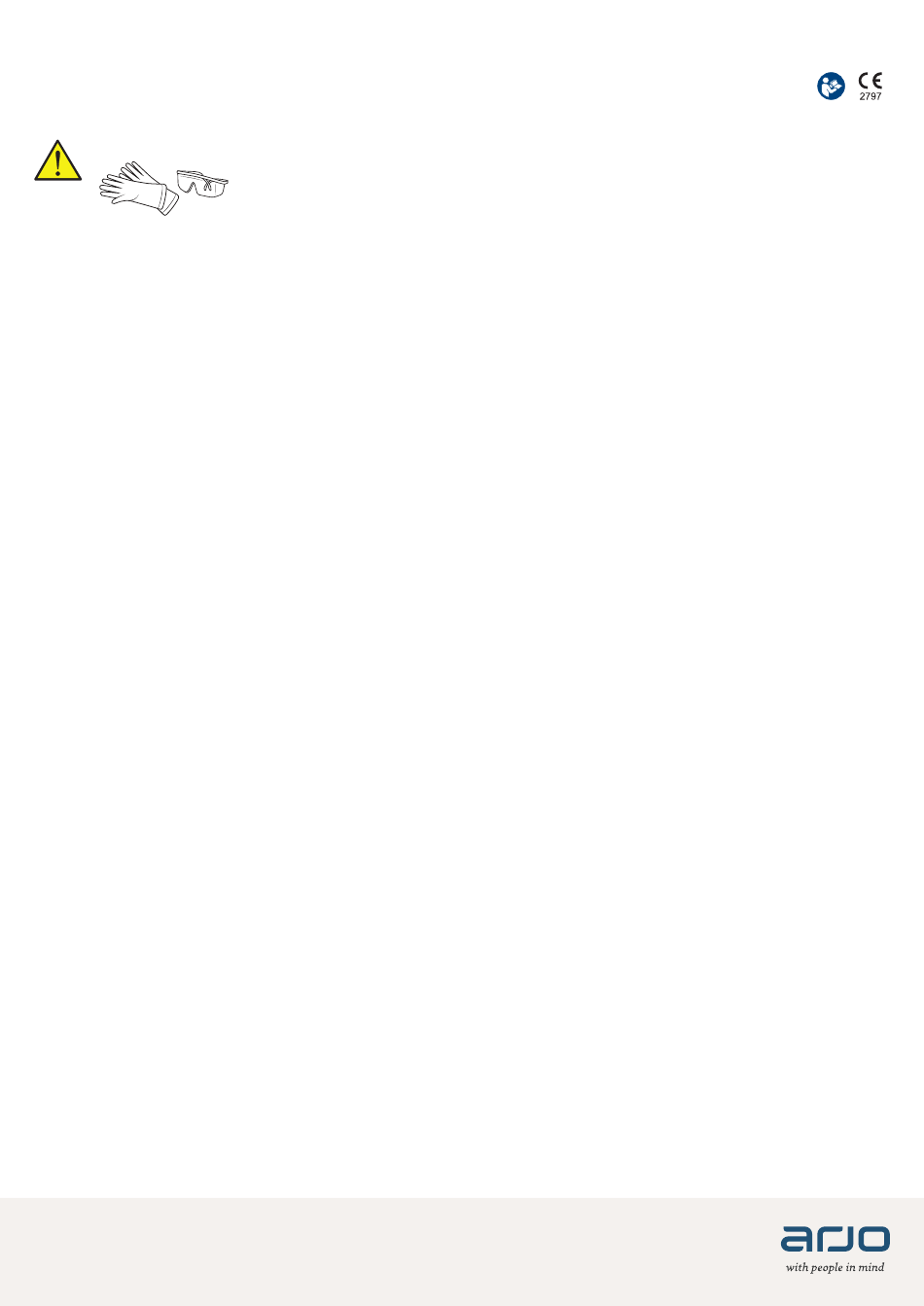

WARNING
To avoid eye and skin damage, always use protective glasses and gloves. If contact occurs rinse with plenty of water.
If eyes or skin becomes irritated, contact a physician. Always read the material safety data sheet of the disinfectant.
To prevent cross-contamination, always follow the disinfection instructions in the Instructions For Use.
To avoid eye or skin irritation, never disinfect in the presence of a patient.
Caregiver obligations
Between patients
Clean and disinfect System 2000 bath before every use.
Clean and disinfect with disinfection unit (Still Bath and Hydrosound System)
NOTE
For disinfection of the Hydromassage system start on page 2.
Remove visual residue
1. Raise the bathtub to convenient working position.
2. Make sure all functions are turned off.
3. Open the drain.
4. Detach and place all accessories at the bottom of the bathtub.
5. Shower and rinse the bathtub and the accessories with water to remove
visible residue. Turn the accessories and rinse again.
Clean
6. Put on protective gloves and eye wear.
7. Lift out the disinfection spray handle.
8. Press the disinfection button.
9. Spray disinfectant into the bathtub until the flow meter shows correct mixing
value according to the Instructions For Use. Adjust if needed.
10. Spray disinfectant in the drain. Scrub the drain with a brush.
11. Close the drain.
12. Spray disinfectant on all internal bathtub surfaces and on all sides of the
accessories.
13. Spray into the surface overflow outlet.
14. Press the disinfection button to turn it off.
15. Scrub the surfaces of the bathtub, loose parts and accessories thoroughly
with a soft bristle brush.
16. Open the drain.
17. Rinse all parts clean with plenty of water with a temperature of
25 °C (77 °F).
18. Soak a cloth in disinfectant and wipe all other contact areas:
the outside of the bathtub, metal sensory knobs and hand control.
19. Wet a new cloth with water and remove the disinfectant.
Occasionally rinse the cloth in running water.
Rhapsody, Primo, Harmonie
Disinfect
20. Spray disinfectant in the drain.
21. Close the drain.
22. Spray disinfectant on all internal bathtub surfaces and on all sides of the
23. Allow appropriate contact time according to the instructions of the
24. Push the disinfection button to end the disinfection cycle.
25. Put back the disinfection spray handle.
26. Open the drain.
27. Push the button for shower.
28. Rinse all parts clean with water having a temperature of 25 °C (77 °F).
29. Soak a cloth in disinfectant and wipe all other contact areas:
30. Allow appropriate contact time according to the instructions of the
31. Wet a new cloth with water and remove the disinfectant.
32. Leave to air dry.
08.AR.09_1EN • 10/2020 • Page 1/2
accessories.
disinfectant.
Automatic Disinfection only:
If the preset disinfection time has not elapsed other functions are disabled
for at least 2 minutes.
the outside of the bathtub, metal sensory knobs and hand control.
disinfectant.
Occasionally rinse the cloth in running water.
