Summary of Contents for Arjo MIRANTI CEB 8X0X

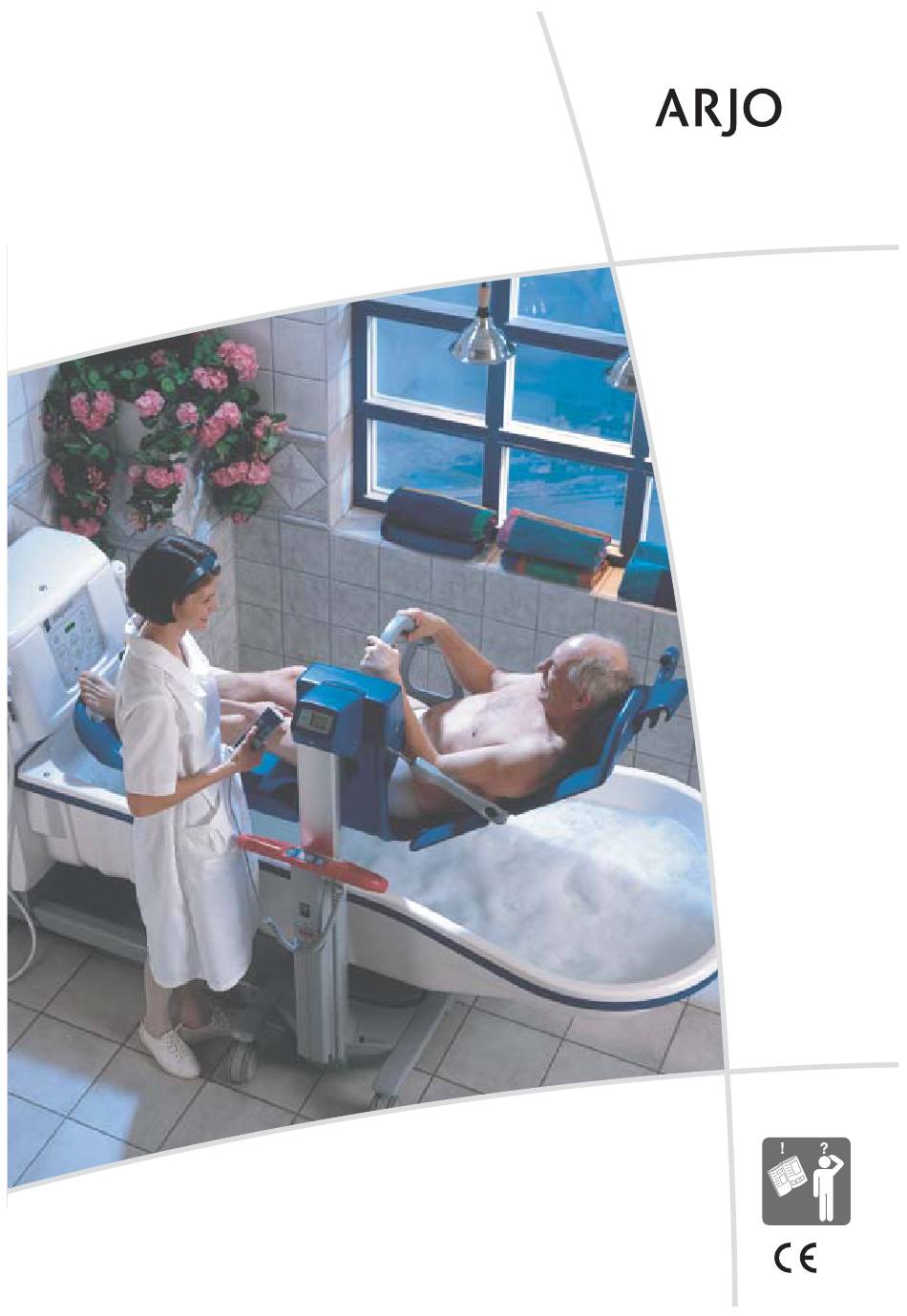

- Page 1 MIRANTI Operating and Product Care Instructions 04.CE.02/8GB May 2008 0086...
- Page 2 Our policy is one of continous development, and we therefore reserve the right to make technical alterations without notice. The content of this publication may not be copied either whole or in part without the consent of ARJO Hospital Equipment AB...
-
Page 3: Table Of Contents
Contents Foreword .....................4 Safety Instructions ................5 Part designations ................7 Product description/function ..............8 Lifting ...................8 Central brakes ................8 Control panel ................8 Handset ..................8 Positioning handle ................8 Electrical function ................8 Sideguard and patient security grip ..........10 Powered backrest ................10 .Emergency Stop ................12 Emergency High/Low ..............12 Battery charger ................14 Scale (optional) ................14... -
Page 4: Foreword
ARJO designed parts, which are designed for the purpose, should be NOTE used on equipment and other appliances supplied by ARJO, to avoid injuries attributable to the use of ina- dequate parts. Unauthorized modifications on any ARJO equipment Means: may affect its safety. -
Page 5: Safety Instructions
NOTE Modifications made to the equipment with- out expressed written consent of ARJO will invalidate the supplier's product liability. NOTE All materials used in the Miranti lift bath... - Page 6 To avoid the possibility of injury Battery charger safety practices: always ensure that: • The charger is designed for dry areas only and for • the equipment is used by trained staff. normal air humidity conditions. • the Miranti is moved with care, especially in nar- •...
-
Page 7: Part Designations
Part designations 15 Chassis Stretcher 16 Wheel Headrest 17 Power drive (optional) Thigh-support cushion 18 Power drive handle (optional) Transport handle 19 Scale (optional) Positioning handle Safety belt/belts (see page 15) Battery Handset Sideguard Patient security grip 10 Pillar 11 Emergency High/Low 12 Powered backrest 13 Central brakes 14 Control panel... -
Page 8: Product Description/Function
Product description/function Lifting The lifting/lowering movement is performed by an actuator driven by an electric motor. Central brakes The brakes are two cylinders, placed under the chassis, oper- ated from the control panel or the handset. The brake action is achieved when the cylinders descend and make contact with the floor. -
Page 10: Sideguard And Patient Security Grip
Sideguard and patient security grip The sideguard, which prevents the resident falling to the side and the patient security grip, which the resident can hold, are integrated in a hinged bar. • Lift the bar upwards (1) . • Hold the sideguard with one hand and the security grip with the other (2) . -
Page 12: Emergency Stop
If, for any reason, Miranti does not respond to the control buttons, you can quickly stop lift movement by pressing the button on the battery and disconnect it (1 ) . Contact your local ARJO representative before re-using Miranti. Emergency High/Low... -
Page 14: Battery Charger
Battery charger Attach the battery charger (1) to a suitable wall and connect it to a wall socket. CAUTION The battery charger is designed for use in a dry location and should not be installed in bathrooms, etc. See separate instruction. Scale (optional) The scale (2) is integrated and located on the lift pillar. - Page 16 Power drive (optional) An electric motor and a fifth wheel (A) are the powered drive (1). The wheel is maneuvered via a button on the right side of the transport handle from either end (B). The Miranti can only move forwards. The wheel is spring-mounted so it can handle different floor levels e.g.
-
Page 18: Transferring The Resident
Transferring the resident WARNING Always pay close attendance to the resident during transferring,transporting and bathing. From bed Undress the resident in bed and dress him/her in a bathrobe, preferably one with buttons up the back. If possible, approach the resident from the right side for transfer to the bath. -
Page 20: Bathing
Bathing Read the separate instructions for your bathing equipment. • Raise the stretcher to clear the edge of the bath (1). Acti- vate the powerdrive and move the resident along the side of the bathtub and finally push transversely to it (2). Watch out for bathtub legs. -
Page 22: Scale (Optional)
• standard approval certificate no. Lock symbol • Article number • If shown, contact Arjo Service Department. • W1=Range scale 1: 2 - 120 kg (± 100g) 0-symbol W1=Range scale 1: 4 - 264.6 lbs (± 0.2 lbs) • On, when the scale is in zero range. - Page 23 2 kg 120 kg 182 kg SEAL 100 g 200 g D97-09-015 ArtNo CFA 2100-T Made for Arjo Eslöv Sweden Seal mark (under the cover) CE mark Year of the 1st verification Authorized body’s verification mark Example of Data label...
-
Page 24: Daily Use; Scale
Daily use; scale Method B. The resident is already lying/sitting on the NOTE stretcher when the scale is activated (3-4): Make sure that the lift is in a horizontal posi- tion, because the display on a verified scale will show "TILT" if the lift isn’t horizontal. NOTE To get the net weight of the resident, all accessories must remain on the stretcher. -
Page 26: Battery And Battery Charger
In case of a malfunction don’t attempt to open the storage areas for lifters corresponding to the charger-cover. requirement above. • All repairs must be carried out by ARJO qualified personnel. Charging batteries • The charger converts mains voltage to low DC Storage of batteries voltage. -
Page 28: Cleaning Instructions
Safety belt • Most ARJO baths are equipped with a spray han- The safety belt can be cleaned/disinfected together with Miranti as described above or be washed in dle for disinfecting purposes. Read the bathing 80ºC/176ºF water. -
Page 30: Care And Preventive Maintenance
Care and Preventive Maintenance Miranti is subject to wear and tear, and the following actions must be performed when specified to ensure that the product remains within its original manufacturing specification WARNING The points on this checklist are the minimum the manufacturer recommends. In some cases due to heavy use of the product and exposure to aggressive environment, more frequent inspections should be carried out. - Page 31 WARNING The following actions must be carried out by qualified personnel, using correct tools and knowledge of procedures. Failure to meet these requirements could result in personal injuries and/or unsafe product. Every Every Every Every QUALIFIED PERSONNEL Action/Check 2:nd WEEK YEAR YEAR Replace brake pads...
-
Page 32: Trouble Shooting
If the product does not work as intended, immediately contact your local ARJO representative for support. Every day Miranti has to be cleaned immediately after every use. ARJO cleaning agents and shampoos should be used in rec- ommended concentrations. See further disinfecting/cleaning instructions on page 28. Every week •... -
Page 34: Technical Specifications
Technical specifications Miranti lift bath trolley model CEB 8X0X Lifting capacity. 160 kg (350 lb) Weight 95 kg (209 lb) Weight with powerdrive and scale 103 kg (227 lb) Measures with lift in lowest position Max height 1225 mm (48 1/4”) Max length 930 mm (36 5/8”) Seat height... - Page 35 Miranti lift bath trolley model CEB 8X0X Colour grey/ bordeaux-red/blue Medical equipment type Usage temperature (water) +20 °C - +45 °C (+68 °F - +113 °F) Sound level < 46 dBA Mode of operation ED max 10%; Max 2 min ON, Min 18 min OFF Operating forces of controls 2.7 N Charger model...
- Page 36 Transport and storage Ambient temperature range –10 °C to +50 °C (+14 °F to +122 °F) 10 % to 80 % at 20 °C (68 °F) including con- Relative humidity range densation Atmospheric pressure range 500 hPa to 1060 hPa Electricity Sealed lead-acid battery 24 V, 4 Ah Battery No.
-
Page 37: Labels On Battery And Battery Charger
Output 28.6 V 1.2 A- yellow The identification label states the product and serial data 27.6V thereafter - green number and the manufacturing country. ARJO battery intended for this charger NDA0100 Battery label Class II Insulation class Environmental danger. Not for disposal... -
Page 38: Labels On The Lift
Max 2min ON and 18 min OFF NDA0100 Product no. of the battery 24V 4Ah Read the operation instructions Recycleable. before use. Sales repre- Contact your local ARJO sentative how to recycle the device according to European Directive 2002/96/EG (WEEE) - Page 39 SE=Sweden E=Eslöv Serial number SEE0102001 Product no CDB81XX Serial no SEE0102001 Made by Arjo in Eslov, Sweden 010115 Safety label Example of identification label Data label 0086 MADE BY ARJO HOSPITAL EQUIPMENT AB ESLÖV, SWEDEN Example of Approval label...
-
Page 40: Accessories
Accessories Electronic scale Power Drive Safety belt Battery and battery charger Disinfectant / Cleaner ARJO DISINFECTANT/CLEANER... - Page 41 ARJO Hospital Equipment AB, PO Box 61, Verkstadsvägen 5, SE-241 21 Eslöv, Sweden...
- Page 42 MD 87841 ISO 13485 If your country is not listed here, please contact your local distributor or: ARJO INTERNATIONAL AB, Box 61, S-241 21 ESLÖV, SWEDEN ...with people in mind. Tel: +46 413 645 00; Fax: +46 413 645 63;...
