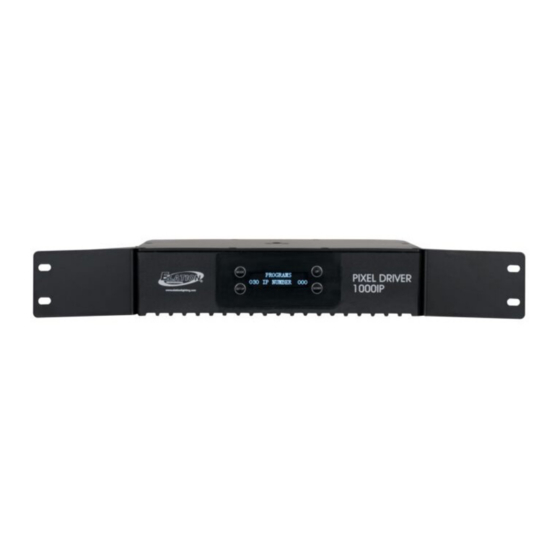

PIXEL DRIVER 1000IP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXEL DRIVER 1000IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation PIXEL DRIVER 1000IP

Summary of Contents for Elation PIXEL DRIVER 1000IP

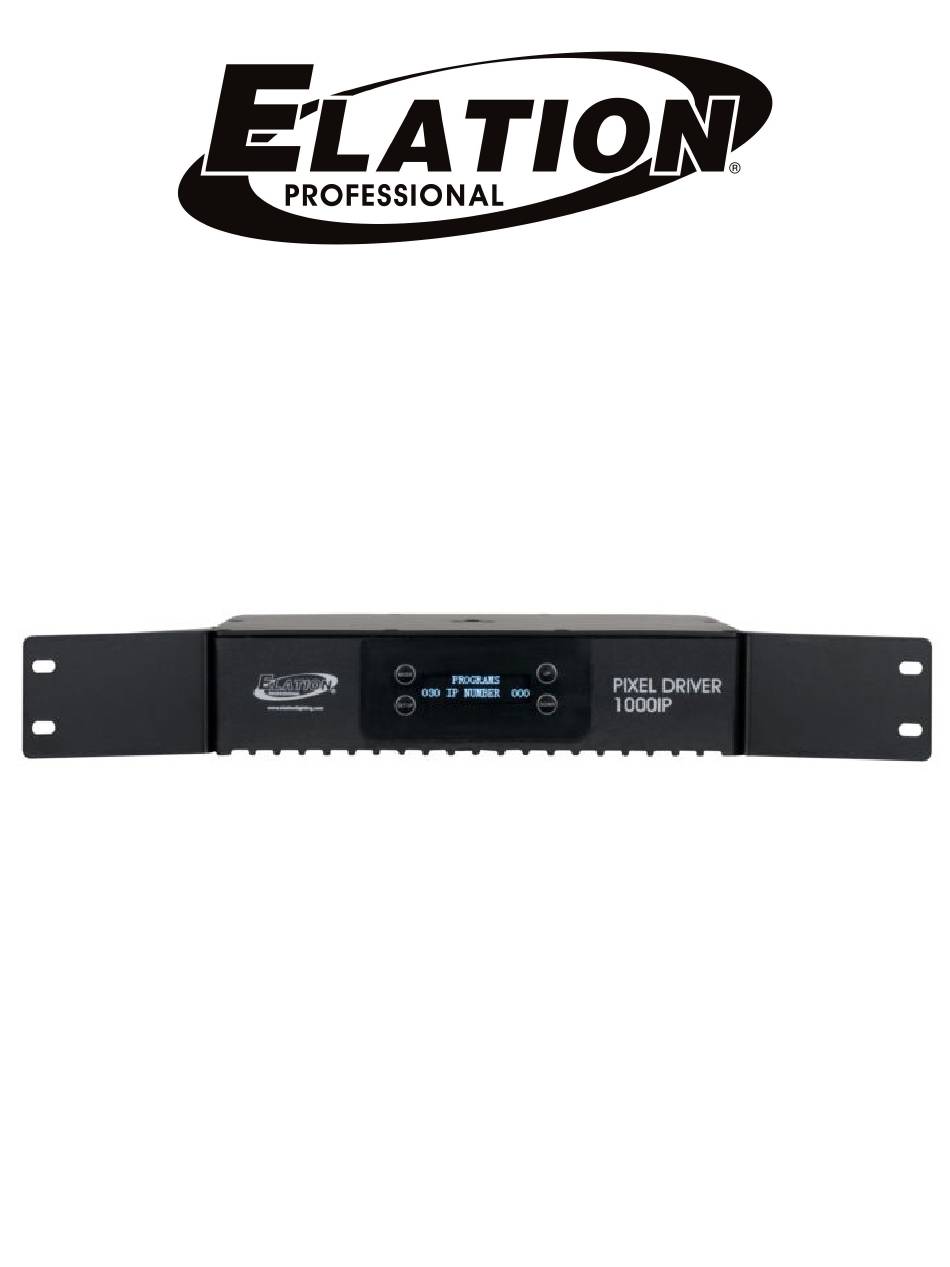

  • Page 1 PIXEL DRIVER 1000IP User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Driver Output Limitations RGB Pixel Control Modes Control Panel System Menu Dimensional Drawings Specifications...

  • Page 4: General Information

    4-pin Data Cable (x1) Rack Mount Brackets w/ Hardware (x2) IP65 Power Cable Connector Kit (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre- paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not respon- sible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 SAFETY GUIDELINES For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device may have to be returned for service •...

  • Page 8: Overview

    OVERVIEW 1. Mode Button 8. Safety Cable Attachment 2. Display Screen 9. Power In 3. Up Button 10. Power Out 4. Setup Button 11. LED Out 5. Down Button 12. Net Data In 6. Underside Mounting Point 13. Net Data Out 7.

  • Page 9: Installation

    INSTALLATION FLAMMABLE MATERIAL WARNING! Keep drive a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! The driver MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
  • Page 10 INSTALLATION RACK MOUNTING This device can be rack mounted using the removable mounting brackets located on each side of the device. Make sure to use mounting hardware that fits the mounting holes on the device as well as the rack itself. Use all four (4) points on the mounting brackets to ensure that the device is mount- ed securely.
  • Page 11 INSTALLATION CLAMP MOUNTING This device features a mounting clamp attachment point in the middle of both the top face and the bottom face, as well as a built-in safety cable attachment point in the corner of the device near the Power In port (see the illustration below).
  • Page 12 INSTALLATION MULTIPLE DRIVERS Up to five (5) Pixel Driver 1000IP devices may be daisy-chained directly together and linked to a single controller. See the image below for reference. Do NOT daisy-chain more than five (5) de- vices directly together. If more than five (5) devices are required, a one-gigabit ethernet switch may be used to expand the size of the network.

  • Page 13: Driver Output Limitations

    DRIVER OUTPUT LIMITATIONS There is a limitation to how many pixels can be controlled by each driver unit, which in turn deter- mines the maximum number of lighting fixtures that can be controlled by a single output or driver. KLING-NET MAX PIXELS PER DRIVER = 1000 TOTAL TOTAL...

  • Page 14: Rgb Pixel Control Modes

    RGB PIXEL CONTROL MODES This feature gives the user the ability to adjust the RGB pixel control mode of the device. Individual pixels may be controlled independently for finer control over the resolution of the device’s light- ing display. Alternately, multiple individual pixels may be grouped together under a common set of control channels in order to reduce the number of required control channels.
  • Page 15 RGB PIXEL CONTROL MODES Available pixel control modess: Pixel Bar 30IP Pixel Bar 60IP Pixel Bar 120IP 30x1 60x1 120x1 15x2 30x2 60x2 10x3 20x3 40x3 15x4 30x4 12x5 24x5 3x10 10x6 20x6 2x15 6x10 15x8 5x12 12x10 4x15 10x12 3x20 8x15 2x30...

  • Page 16: Control Panel

    CONTROL PANEL The device includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made (see image below). - The MODE button is used to cycle through main menu options, or to return to the previous menu. - The SETUP button is used to select an option in either the main menu or the sub-menu of any main menu item, and to cycle through the sub-menu options.

  • Page 17: System Menu

    Select the number of Artnet Pixel Bar units that the x x x IP Numbe x x x driver will control Artnet TBD* LED Bulb Numbe x x x *LED Bulb and LED Tape settings are intended for use with upcoming Elation Products.
  • Page 18 Bar that will be con- Pixel Bar x x x IP trolled by the driver Pixel Bar Setup Programs TBD* LED Bulb Programs TBD* LED Tape *LED Bulb and LED Tape settings are intended for use with upcoming Elation Products.
  • Page 19 Normal digital display SETUP OPTIONS Display: STD orientation Display Setup Options: Inverted digital display Display: REV orientation Setup Options: Restore unit to factory System Reset SysReset settings *LED Bulb and LED Tape settings are intended for use with upcoming Elation Products.
  • Page 20 SYSTEM MENU Pixel Bar IP series Drive: Pixel Bar OUTPUT TYPE Output Type Set LED Bulb Drive: LED Bulb LED Tape Drive: LED Tape...

  • Page 21: Dimensional Drawings

    DIMENSIONAL DRAWINGS Dimensions may not be drawn to scale.

  • Page 22: Specifications

    SPECIFICATIONS CONTROL / CONNECTIONS Manual RGB Mode Internal Programs Art-NET | sACN | Kling-NET Protocols 2 RJ45 Ethernet Ports 1 4pin Power/Data Output SIZE / WEIGHT Length: 19” (483mm) * With Rack Ears Width: 7.88” (200mm) Height: 2.72” (69mm) Weight: 8 lbs. (3.6kg) ELECTRICAL AC Input 100-240V - 50/60HZ, 2.2A DC Output 24V, 8.4A...
  • Page 24 SKU#: PIX301 UPC#: 810008261897...
