Summary of Contents for Elation PIXEL DRIVER 4000

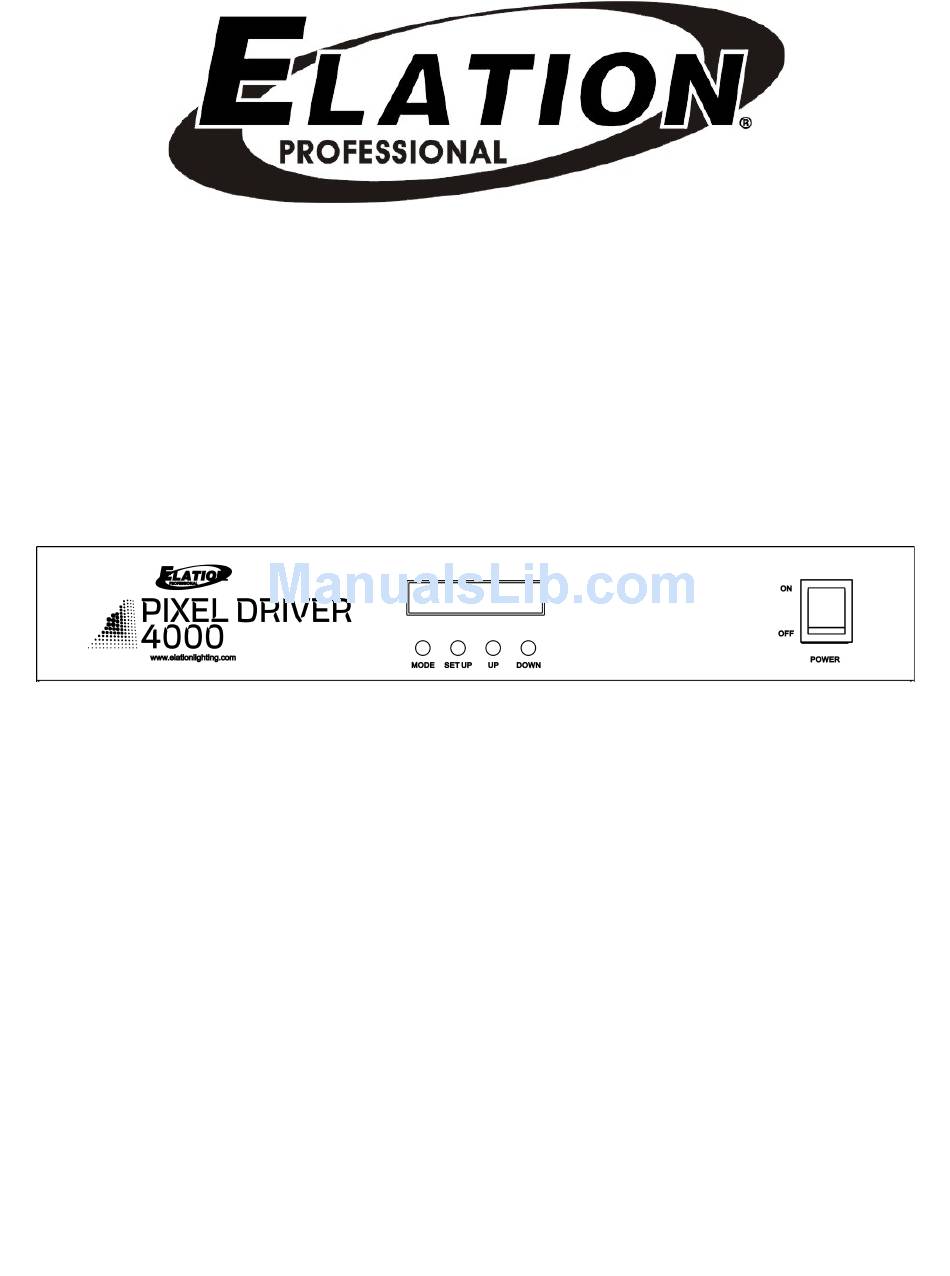

- Page 1 PIXEL DRIVER 4000™ user manual...
- Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N Due to additional product features and/or enhancements, an updated version of this document may be available online.
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Device Overview Installation Connections and Cables System Configuration System Menu Technical Specifications Optional Accessories www.elationlighting.com... -
Page 4: General Information
Please recycle whenever possible. CUSTOMER SUPPORT Elation Professional provides a customer support line to provide set up help and answer any set up or operation questions. You may also visit us on the web at www.elationlighting.com for any comments or suggestions. -
Page 5: Limited Warranty (Usa Only)
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. - Page 6 This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
-
Page 7: Safety Guidelines
S A F E T Y G U I D E L I N E S DO NOT shake device, avoid brute force when installing and/or operating device. DO NOT operate device if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the device securely with ease. -
Page 8: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this device, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 9: Device Overview
5. 10A Fuse 6. Safety Cable Attachment Loop 7. RJ45 Ethernet In/Out Ports (Kling-NET, Art-NET/sACN) 8. Output Ports 1-4 (10A Fuse each) INCLUDED ITEMS PIXEL DRIVER 4000 19” Rack Mount Kit powerCON Power Cable 3m (9.8 ft) 4pin 16AWG Power/Data Cable www.elationlighting.com... -
Page 10: Installation
A qualified electrician should be used for all electrical connections and/or installations. PIXEL DRIVER 400 INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE PIXEL DRIVER 4000 TO RAIN AND MOISTURE! DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! Device MUST be installed following all local, national, and country commercial electrical and construction codes and regulations. - Page 11 Improper installation can result in bodily injury. INSTALLATION LOCATION PLANNING Use careful planning to select the installation location of the PIXEL DRIVER 4000 unit(s). The maximum distance from the driver to the first pixel bar can NOT exceed 50 feet (18m).
-
Page 12: Connections And Cables
CLK (clock pin) PIN #4 (-) Power CABLES ELATION P BAR IP 4pin 16AWG power/data cables are available in various lengths. See Optional Accessories for details. MAXIMUM CABLE DISTANCES – 16AWG The following maximum cable distances apply when using 16AWG cables. -
Page 13: System Configuration
S Y S T E M C O N F I G U R A T I O N LINKING Maximum number pixels/bars each PIXEL DRIVER 4000 supports is listed in charts below. Multiple combinations of PIXEL BAR IP models can be linked (daisy-chained) together to a single driver port, providing the maximum number of pixels/bars is NOT exceeded. - Page 14 Click link for more information about IGMP. https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol Up to 5 PIXEL DRIVER 4000 units can be connected per ethernet switch port and up to 10 total ethernet switch ports can be used in a system. www.elationlighting.com...
-
Page 15: System Menu
S Y S T E M M E N U Supports Software Versions: ≥ 1.0 Features are subject to change without any prior written notice. MODE button SET UP button UP/DOWN buttons DESCRIPTION RED: 000-255 Manually adjust RED LED Intensity GREEN: 000-255 Manually adjust GREEN LED Intensity... - Page 16 S Y S T E M M E N U Supports Software Versions: ≥ 1.0 Features are subject to change without any prior written notice. MODE button SET UP button UP/DOWN buttons DESCRIPTION sACN OUT1 Set DMX Universe of OUTPUT #1 U00001-64000 UNIVERSE SETUP sACN OUT1...
- Page 17 S Y S T E M M E N U Supports Software Versions: ≥ 1.0 Features are subject to change without any prior written notice. MODE button SET UP button UP/DOWN buttons DESCRIPTION Enable or Disable Kling-NET/Art-Net KLINGNET: ENABLE/DISABLE Auto Detection Mode KLINGNET OUT1 Set Pixel Bar Model - OUTPUT #1 PIXEL BAR XXXIP...
-
Page 18: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S CONTROL / CONNECTIONS Manual RGB Mode Internal Programs Art-NET | sACN | Kling-NET (2) RJ45 Ethernet Ports (4) 4pin Power/Data Outputs SIZE / WEIGHT Length: 16.7”... -
Page 19: Optional Accessories
PIX200 PIXEL BAR 30IP PIX225 PIXEL BAR 60IP PIX253 PIXEL BAR 120IP PIX277 PIXEL DRIVER 4000 PIX300 P BAR IP 0.6m (2ft) 16AWG Cable PIX313 P BAR IP 1m (3ft) 16AWG Cable PIX326 P BAR IP 1.5m (5ft) 16AWG Cable...
