EN
30

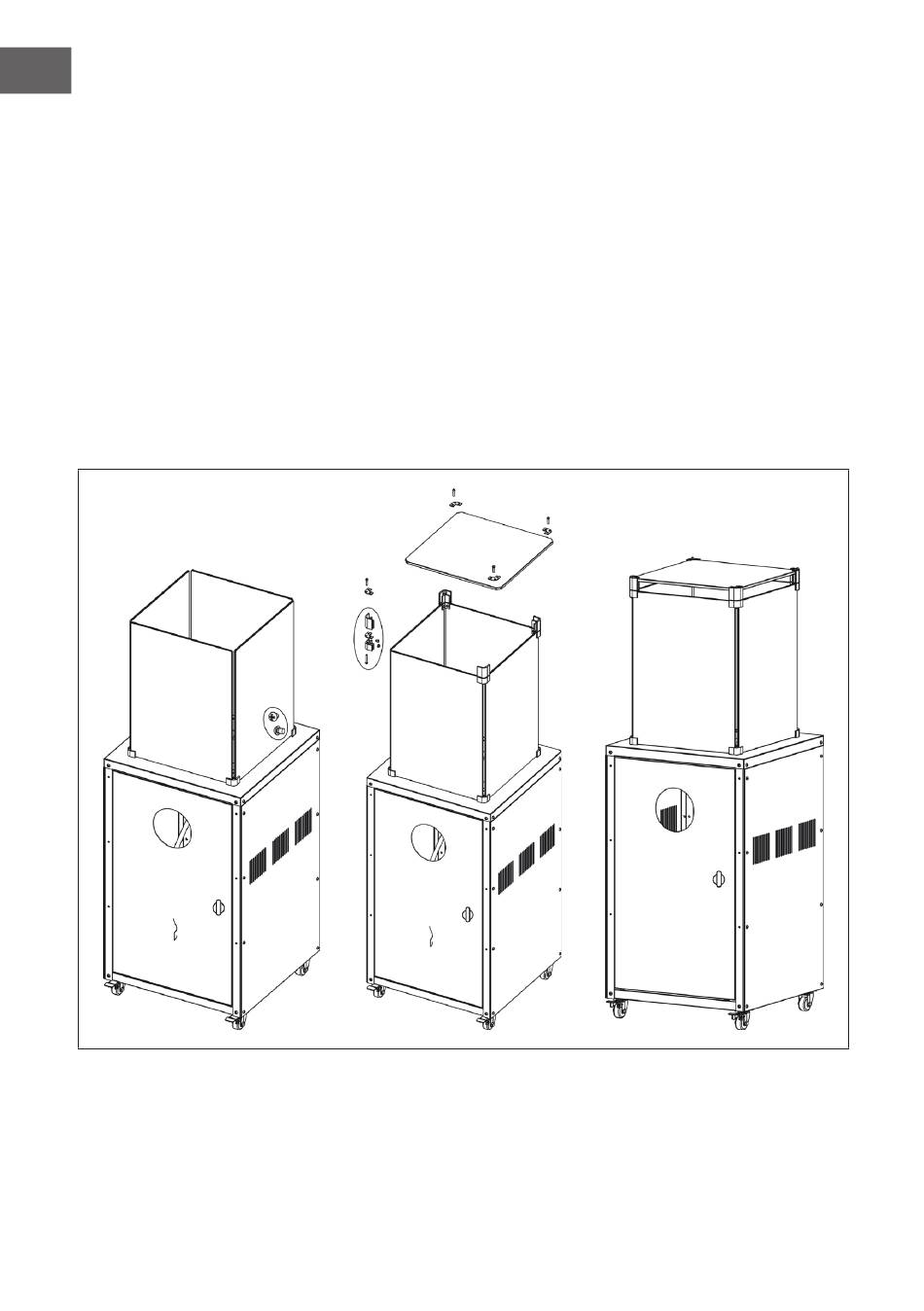

Step 2:
•
Loose 8 pieces M5 x 6 screws from edge protectors B (3), then fix 4 pieces
side-face glass windows (4) on the edge protectors B (3) using these
8 pieces M5 x 6 screws carefully.
Step 3:
•
Loose 8 pieces M5 x 6 screws from edge protectors B (3), then fix 4 pieces
edge protectors (2/3) on the top corner between each glass window using
these 8 pieces M5 x 6 screws.
Step 4:
•
Fix the top-face glass window (1) carefully by using 4 pieces frame caps
(1-2) and 4 pieces M5 x 20 screws (1-1).
