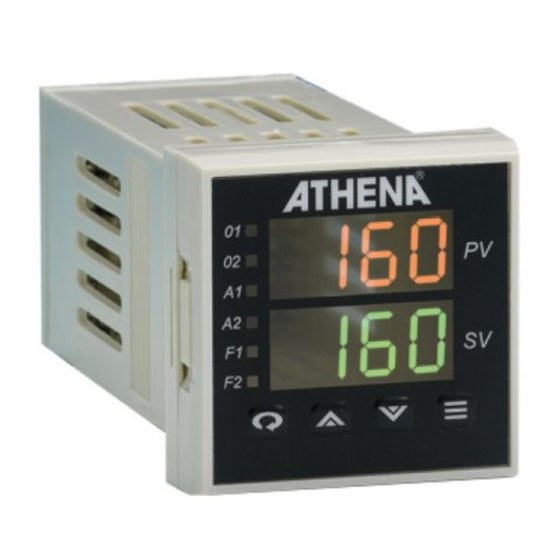

Athena 16 Series Operation Manual

Temperature/process controller
Hide thumbs Also See for 16 Series:
Table of Contents

Advertisement

Quick Links

16
Series
Temperature/Process Controller
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for Athena 16 Series

Summary of Contents for Athena 16 Series

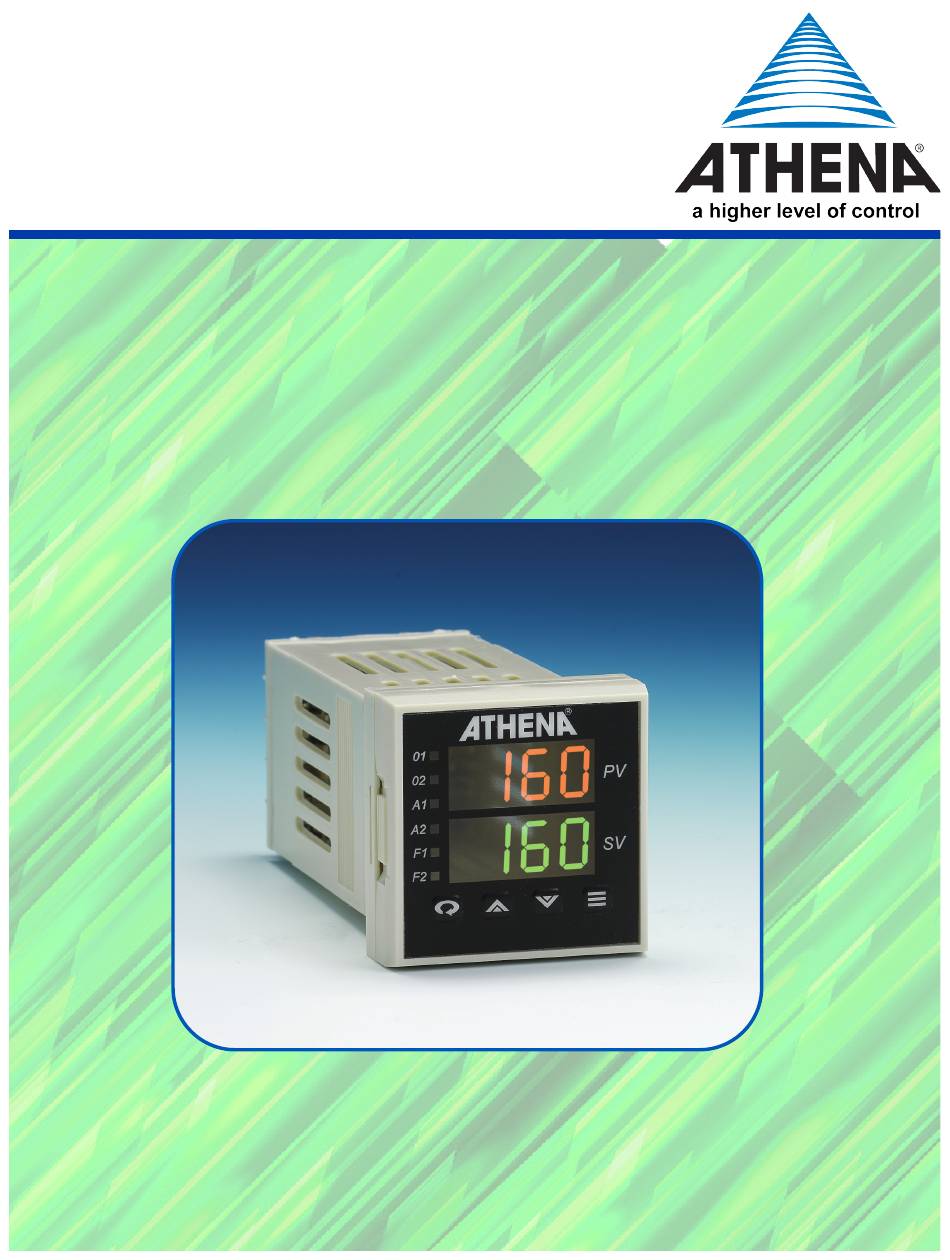

  • Page 1 Series Temperature/Process Controller Operation Manual...
  • Page 2 Introduction Congratulations on your purchase of an Athena ® Series 16 Single-Loop Controller. It is designed for ease of use and reliability wherever accurate closed-loop control is required. Your Series 16 has been configured according to your ordering specifications as either a universal process controller or a dedicated temperature controller.

  • Page 3: Table Of Contents

    Table of Contents Installation Mounting Wiring Operation Notes on Outputs Parameter Menu Organization Notes on Alarms Tuning Special Functions Auto/Manual Remote Setpoint Select Process Variable Retransmission Heater Break Alarm Transducer Excitation Digital Communications Error Codes Technical Specifications Ordering Code Information Recalibration Procedure Glossary FAQs...

  • Page 4: Installation

    Installation Measurements between centerlines of panel cutouts are the minimum recommended. Unpacking and Inspection 1. Inspect shipping carton for obvious signs of mishandling. 2. After removing the controller from the shipping carton, inspect it carefully for damage. Never attempt to install and use a damaged unit.
  • Page 5 Sensor Input Make sure that you are using the appropriate thermocouple and extension wire. Connect the negative lead Connections (generally colored red in ISA-type thermocouples) to contact #9; connect the positive lead to contact #10. Extension wires must be the same polarity as the thermocouple. Figure 4.

  • Page 6: Wiring

    Voltage Inputs: Connect the positive voltage input to contact #10; the negative input to contact #8. mV/ Current Inputs: Connect the positive current input to contact #10; the negative input to #9. Power Wiring The Series 16 power supply accepts 100 to 250 Vac and 100 to 330 Vdc line power without any switch settings or polarity considerations.

  • Page 7: Operation

    Athena Series 16 Universal Controller The Series 16 is a full-function, autotuning PID controller, calibrated and pre-configured for your application Operation requirements, according to the ordering code specified, either as a temperature or linear process controller. (See page 39 for specifications and ordering code).
  • Page 8 Power On Operation When power is first applied to the Series 16, both displays and all LED indicators are momentarily illuminated. The Process Value (PV) window then displays [ -At- ] or [ -Ap- ] and the Setpoint Value (SV) window displays an initialization code, e.g., [ tf06 ].

  • Page 9: Parameter Menu Organization

    Menu Level Descriptions Menu “05” (Configuration Setup) This is the menu level used for specifying initial configuration parameters before the controller is placed in Operation Run mode. Because the Series 16’s initial configuration affects other menu levels, it is important to set all required parameters in this menu first before accessing other menu levels.
  • Page 10 Menu 0 Menu 1 Menu 2 Menu 3 Menu 4 Menu 5 Operation Key Lock Ac.Cd Ac.Cd Ac.Cd Ac.Cd Ac.Cd Setpoint Parameters are set Id.no * Gn.o1 ALr1 SnSr for when the controller is being bAUd * Gr.02 ALr2 used for either temperature rAtE CY.t1...
  • Page 11 MENU "05" Parameter Display Parameter Available Selections Descriptions Sensor Type - Type K thermocouple SnSr - Type J thermocouple How Do I Get Here? - Type N thermocouple 1. Press for 1 - Type R thermocouple second until menu level number - Type T thermocouple appears.
  • Page 12 MENU "04" Parameter Display Parameter Available Selections Descriptions Device ID number Id.no (remote communications) Comm details - 300 baud, odd parity, 7 data bits, 2 stop bits How Do I Get Here? bAUd 3 . 0 . 7 - 600 baud, odd parity, 7 data bits, 2 stop bits 6 .
  • Page 13 MENU "03" Parameter Display Parameter Available Selections Descriptions Alarm 1 Preset Dependent on sensor range ALr1 Alarm 2 Preset Dependent on sensor range ALr2 How Do I Get Here? Cycle Time Output 1 0 to120 - seconds CY.t1 1. Press for 1 Cycle Time Output 2 second until menu...
  • Page 14 MENU "02" Parameter Display Parameter Available Selections Descriptions Gain Output 1 (PID heat - value may exceed 400 during autotuning Gn.o1 gain) How Do I Get Here? Gain Ratio Output 2 (PID Gr.o2 cool gain ratio) 1. Press for 1 Heat Hysteresis 01 to100 - degrees...

  • Page 15: Notes On Alarms

    Notes on Alarms Either [ ] or [ ] in menu level “05” (but not both) may be configured as an alarm [ ] if OUT 1 OUT 2 Operation your Series 16 was ordered with a “B”, “S” or “T” type of output module. (With “Y” modules, an alarm may be configured only on [ ]) When one of the two available Outputs is configured as an alarm, the other Output may be used for control .

  • Page 16: Tuning

    Introduction The Series 16 is an “on demand” autotuning controller that automatically sets PID parameter values Tuning (Proportional Band, Reset and Rate) before the process reaches setpoint. A damping setting (menu level Procedures “02”) MUST be selected for autotuning to take place. The controller may also be tuned manually. Autotuning the Series 16 Temperature Controller For best results in 1) With the power off and the process at ambient, apply power and immediately put the controller in...
  • Page 17 Manual Tuning Procedure - Temperature Controller (Zeigler-Nichols PID Method) Tuning This tuning method may be used if the spread between ambient temperature and process operating Procedures temperature is small. For best results, the use of a recording device is suggested when tuning with this method.

  • Page 18: Auto/Manual

    Tuning Manual Tuning Procedure - Process Controller (Zeigler-Nichols PID Method) A chart recorder to monitor the process variable is required. The controller must be properly scaled and Procedures filtering set as instructed previously. 1) Apply power and place the controller in Standby by holding the Mode key for four seconds.

  • Page 19: Remote Setpoint Select

    Special Remote Setpoint Select Functions If your Series 16 controller was ordered with this option, you may select either of two setpoints for your process. The second setpoint can be enabled only by an external switch or signal, according to your ordering specifications.

  • Page 20: Process Variable Retransmission

    Special Functions Process Variable Retransmission If your Series 16 controller was ordered with this option, you may retransmit the signal representing the process variable for analysis or storage to an external device that accepts analog input, such as a chart recorder, datalogger, or process control computer.

  • Page 21: Heater Break Alarm

    Special Functions Heater Break Alarm (Series 16 Temperature Controller) The heater break alarm option detects failures in the load or power handler and provides an alarm output. It uses an external current transformer to monitor the load current. If the load current falls below a set current value, the alarm output is activated.

  • Page 22: Transducer Excitation

    Transducer Excitation Special The transducer excitation voltage option is used to produce a constant dc voltage of 10, 12 or 15 Vdc out to Functions an external device, eliminating the need for an additional external power supply. Refer to the ordering code if you do not know which voltage output was specified.

  • Page 23: Digital Communications

    RS232 This method allows bidirectional data transfer via a three-conductor cable consisting of signal ground, Digital receive input and transmit output. It is recommended for communication distances less than fifty feet Communications between the computer terminal and the instrument. Note: Multiple instruments cannot be connected to the same port.
  • Page 24 Communications Parameter List (Temperature Controller) Digital Parameter No. Description Display Minimum Maximum Communications Process Value Sensor dependent nnnn Setpoint Low Limit High Limit nnnn Access Code Ac.Cd Gain Output 1 Gn.o1 Gain Ratio 2 Gr.02 Rate rAtE Reset 3600 rSEt Heat Hysteresis H.HYS Cool Hysteresis...
  • Page 25 Interface Examples Digital This section offers a very basic description of the protocol for communication between an Series 16 controller and a computer ( referred to below as “the host”). For a more complete description and details on Communications the communication protocols, please refer to Communications Manual. Message strings may be of two types —...
  • Page 26 Digital Communications This section is solely intended as a very basic overview. Please refer to the Athena Communications Manual for more detailed information. Figure 19. Sample Communications Commands Communications Notes Caution: Wherever possible, avoid using the “Enter” command and use “Modify”...

  • Page 27: Error Codes

    Error Codes Display Indicated Problem Corrective Action Open sensor Inspect and correct for a bad sensor; inspect and correct Err.H wiring continuity between sensor and controller. Reversed Sensor Inspect and correct the polarity of the sensor. Additionally, Err.L check the selection of the sensor type in the Input menu If an A/D error Return to factory...

  • Page 28: Technical Specifications

    Operating Limits Technical Ambient Temperature 32°F to 131°F (0°C to 55°C) Specifications Relative Humidity Tolerance 90%, Non-Condensing Power 115 to 230 V +/- 10%, 50/60 Hz; 115 to 300 Vdc +/- 10% (auto-polarity) Power Consumption Less than 6 VA Performance Accuracy ±0.20% of Full Scale, (±0.10% Typical), ±1 Digit Setpoint Resolution...
  • Page 29 Dual SSR, Normally Closed (Option id 22). Relay, Normally Open (Option id 23) Communications RS-232 with\Athena+ Protocol (Option id 30) Communication, RS-485 Athena+ Protocol with Contact/Digital Input RS-485, No Switch (Option id 31) Switch Closed (Option id 36) Switch Open (Option id 37)

  • Page 30: Ordering Code Information

    100 ohm RTD -199.0 to 450.0° F Communication, RS-485 Transducer Excitation 100 ohm RTD -100.0 to 225.0° C Athena+ Protocol w/Contact/ 50 = 10 Vdc 1000 ohm RTD -328 to 1562° F Digital Input 51 = 12 Vdc 1000 ohm RTD -200 to 850°...

  • Page 31: Recalibration Procedure

    Cal Lo 0° C 32° F 100Ω Cal Hi 768° C 1414° F 366Ω RT.D Mid-range 328° C 622.4° F 222Ω Only qualified individuals utilizing the appropriate calibration equipment should attempt recalibration of the controller. For assistance, contact your Athena representative.

  • Page 32: Glossary

    Alarm Delay - the time delay between the detection of the alarm condition and the initiation and indication of the output action. Glossary Alarm Inhibit - prevents low setpoint alarm activation during cold startup applications. Autotuning - “Autotuning” or “self-tuning” simplifies process control by determining the tuning parameters based on an automated analysis of the controlled process’s behavior.
  • Page 33 Lowest Reading - records the lowest process value read by the controller. May be reset to zero by using the Raise or Lower arrow keys. Lower Setpoint Limit - prohibits users from adjusting the setpoint lower than the selected value. Manual Reset - an adjustment that moves the Proportional Band up or down by a fixed percentage so that more or less power is applied at setpoint.

  • Page 34: Faqs

    Before you call, please look at this section to see if your question is covered here. If you do call for technical FAQs assistance, be ready to supply the following information: • complete model number of controller • symptoms of the problem •...

  • Page 35: Configured Parameter Reference Chart

    nformaTion in a lace Configured Parameters Reference Data Model Number ______________________________ Serial Number _______________________________ Zone Location _______________________________ Firmware Version No. _________________________ (Displayed when the controller is powered up after all the segments on both lines of the display have been tested.) Please keep this information handy –...

  • Page 36: Warranty/Repair Information

    Proprietary information of Athena Controls, Inc. is furnished for customer use only. No other use is authorized without the written permission of Athena Controls, Inc.

  • Page 37: Quick Setup Instructions

    Experienced users, already familiar with mounting and wiring the Series 16 may use these condensed Quick Setup instructions to autotune the controller and get started quickly. Instructions These quick setup instructions are not meant as a substitute for reading the full instruction manual.
  • Page 38 Athena Controls, Inc. Plymouth Meeting, PA +1 (610) 828 2490 AthenaControls.com sales@athenacontrols.com 1/22/2020 DESCRIPTION REVISION DATE Model Legacy 16 Operation Manual TITLE 900M502U01 DATE SCALE CHECKED DRAWN...
