Summary of Contents for HURTLE HUKS86B

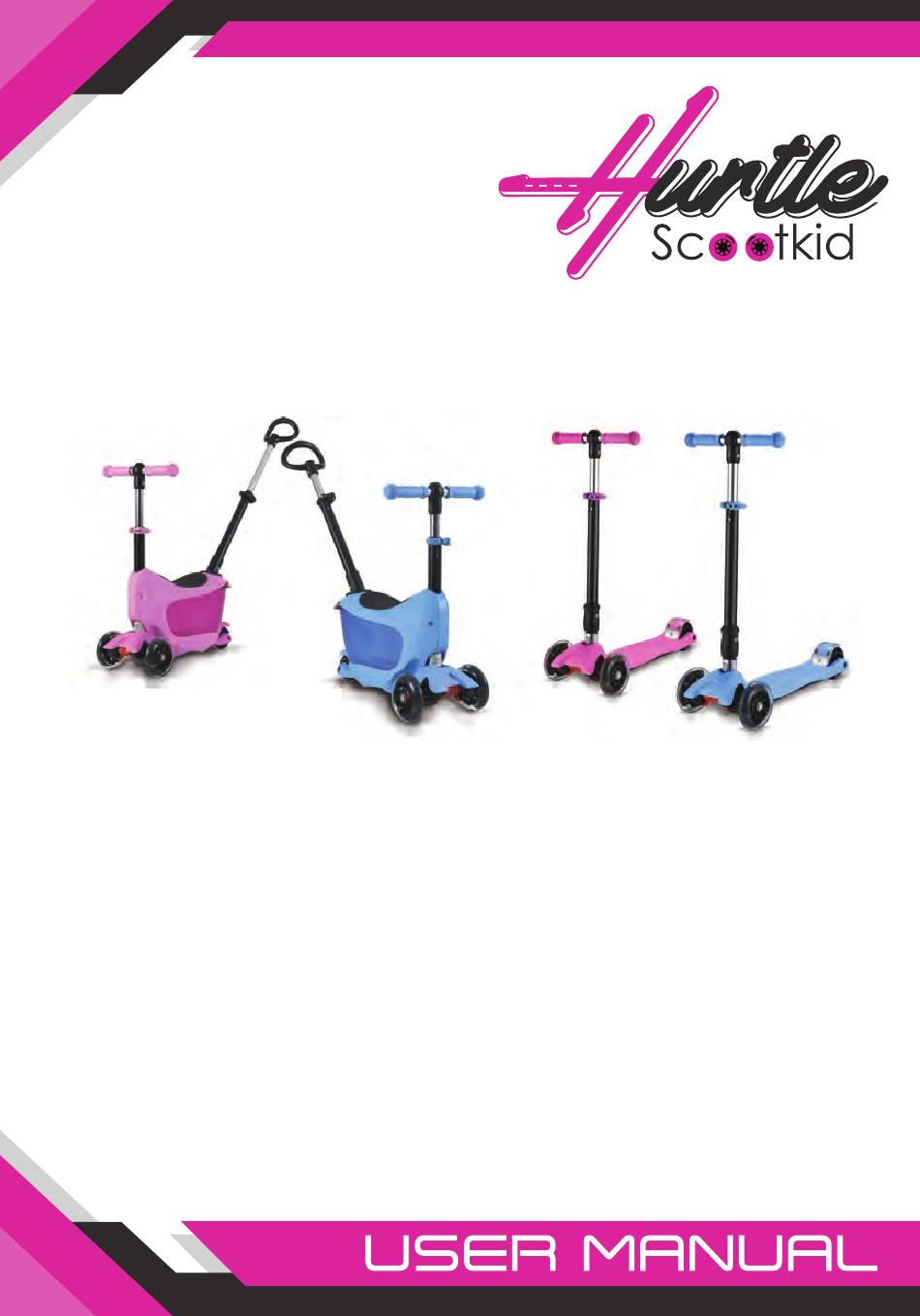

- Page 1 • • HUKS86B HUKS93R HUFS88B HUFSP98 HUKS86B - HUKS93R ScootKid3-Wheel Kids Scooter HUFS88B / HUFSP98 ScootKid 4-Wheel Kids Scooter Child & Toddler Toy Scooter with Built-in LED Wheel Lights...
- Page 2 Wear protective gear when riding Adult supervision for assembly and use GENERAL We can rest assured that you have acquired a high quality product and also we o er you an excellent after-sales service. Before you convince yourself of the unique driving experience o ered by your new scooter, please read the attached instructions carefully.
-
Page 3: Operating Safety Instructions
OPERATING SAFETY INSTRUCTIONS • Child should practice rst to gain control of the scooter. We recommend that you practice your scooter on a tra c-free car park or on open asphalt play areas. • Ensure that your child always wears a helmet, wrist, elbow and knee pads, as well as shoes with rubber soles. -
Page 4: Play Instructions
• HUFS88B / HUFSP98: Ages 5-12 Years HUKS86B / HUKS93R: Ages 1-5 Years • Always take care not to risk injuring ngers when folding and unfolding scooter. • Explain to your child the risks of using the scooter as how to use it. Supervise your child while they are using the scooter. - Page 5 Rear Brake Sliding Sleeve Rear PU ALU Folding Wheel System Chassis Lower Mudguard Front PU Wheel Lean to Steer Mechanism HUKS86B / HUKS93R: Ages 1-5 Years Handle Grip Non-Welding Adjustable T-Bar Stronger Plastic Collar Clamp Steering Rod EVA Seat Unique Drawer/Container...
- Page 6 Front Covering Seat Housing Drawer/Container Sliding Sleeve Long Allen Screw Fold and unfold (Uninstalled sliding sleeve) Unfold: Put long Allen key into the hole of the Steering rod and location pin. Pull long Allen key upward to unfold the scooter, the ow is shown in Figure A and B, unfolded Scooter as shown in Figure C.
- Page 7 (Method 1) RECOMMENDED Seat and drawer installation Put seat housing into Insert the front covering into the steering rod. seat housing. Use the Allen key to Done as image shown x rmly with the screw. Seat and drawer installation (Method 2-1) Remove and install collar clamp and T-Bar Open the lever of the collar Loosen the screw with...
- Page 8 (Method 2-2) Seat and drawer installation Insert the front covering into Put the complete Seat Done as image shown seat housing and use the into Steering Rod. Allen key to x rmly with the screw. Press down the seat, nish Put the drawer into the Put T-bar into the Steering as shown in Figure above.
-
Page 9: Maintenance Instructions
(Method 1) RECOMMENDED Seat and drawer installation Unfold: Pull sliding sleeve upward to unfold the scooter, as shown in Figure A and B, complete unfolding Scooter as shown in Figure C. Fold: Pull sliding sleeve upward to fold the scooter, as shown in Figure D and E, complete folding scooter as shown in Figure F. - Page 10 Change Brake 1. Firstly Loosen the 6 screws(A) , please refer to the changing deck. 2. Remove deck and loosen the screws on the brake (B). 3. Replace the brake and work back from 2 to 1. Change Steering Spring 1.
-
Page 11: Safety Tips
SAFETY TIPS The scooter is a new fun piece of product which is safe when used carefully and correctly. However, as with any sporting product, a small risk cannot be excluded and we recommend that you protect hand joints, elbows and knees from bumps and grazes. - Page 12 HUFS88B / HUFSP98 ScootKid 4-Wheel Kids Scooter Child & Toddler Toy Scooter with Built-in LED Wheel Lights, Portable Folding Style (Ages 5-12 Years) Features: • Mini Kick Scooter Fun • 4-Wheel Tricycle ‘Trike’ Style • Stand & Cruise Kick Scooter Design •...
- Page 13 HUKS86B / HUKS93R ScootKid3-Wheel Kids Scooter Child & Toddler Toy Scooter with Built-in LED Wheel Lights, Storage Box Comfort Seat, AdultPush-Bar Handle (Ages 1-5 Years) Features: • Mini Kick Scooter Fun • 3-Wheel Tricycle ‘Trike’ Style • Sit & Cruise Kick Scooter Design •...
- Page 14 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
