- Page 2 Dear customer, Thank you for choosing the Hurtle Scootkid Scooter! You have received a quality product, backed by our excellent customer support. Before riding your new scooter, please review the attached instructions carefully. Store them in a safe place so you can refer back to them as needed.
- Page 3 Wear protective gear when riding. Adult supervision for assembly and use. GENERAL We can rest assured that you have acquired a high quality product and also we o er you an excellent after-sales service. Before you convince yourself of the unique driving experience o ered by your new scooter, please read the attached instructions carefully.
-
Page 4: Operating Safety Instructions
WARNING: • Adult required, this product contains small parts while unassembled. • The toy needs to be used with caution, since skill if required to avoid falls or collisions causing injury to the user or third parties. • The wearing of helmets protective equipment for elbows, knees, wrists and palms as well as shoes with at rubber soles is recommended. - Page 5 • Ensure that your child does not ride the scooter in the dark or at night. Only one child may ride on the scooter. • Ensure that your child does not ride down any steep hills. The brake is not designed to decelerate from high downhill speeds.
-
Page 6: Play Instructions

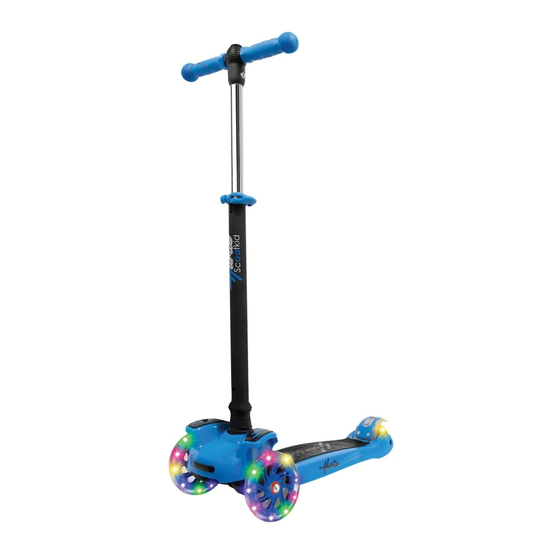

PLAY INSTRUCTIONS Hold on to the ends of the T-Bar or Ring Bar with your hand. You steer the board through the slightest of weight displacements. To get under way, you stand with one leg (the foot approx at 45° angle to the direction of travel) on the board and push yourself o using the other leg. - Page 7 SCOOTER FEATURES Handle Grip Non-Welding Handle/Steering Adjustable T-Bar Scooter Body Stronger Plastic Collar Clamp Handle/Steering Rod TPR Seat TPR Seat Fixing Sleeve Allen Key Non-Slip Deck Rear Brake Fixing Sleeve Rear PU Wheel Chassis Lower Mudguard Front PU Wheel Lean to Steer Mechanism www.PyleUSA.com...
-
Page 8: Scooter Assembly
SCOOTER ASSEMBLY WARNING: Keep the kids in a safe distance while assembling the scooter to avoid accidental injuries. Scooter Hole (H), as shown in Push Red Button (M), Handlebar (T), Fixing Sleeve (S), as shown in Figure B. Figure A. Pull the Fixing Sleeve down- Press Red Push Button (M). - Page 9 SCOOTER DISASSEMBLE WARNING: Keep the kids in a safe distance while disassembling the scooter to avoid accidental injuries. Scooter as shown in Figure A Pull the xing sleeve upward as shown in Figure B & C. Press Red Switch with one hand and using the other hand to pull handlebar to separate the Handlebar and Scooters body as shown in Figure D.
-
Page 10: Seat Assembly
SEAT ASSEMBLY WARNING: Keep the kids in a safe distance while assembling the scooter to avoid accidental injuries. Fix rmly with the screw with one hand. Scooter as shown in Figure A Adjustable seat housing with Fold the seat housing 3 heights to accompany child's development. - Page 11 SEAT DISASSEMBLY FIRST METHOD WARNING: Keep the kids in a safe distance while disassembling the scooter to avoid accidental injuries. Scooter as shown in Figure A. Fold the seat housing up as shown in Figure B. SEAT DISASSEMBLY SECOND METHOD Scooter as shown Press the red button, Loose the screw,...
-
Page 12: Height Adjustment
HEIGHT ADJUSTMENT WARNING: Tighten the Collar Clamp to secure T-Bar after adjustment. Adjust the T-Bar according to childs Loosen the lever of the Collar height. Tighten the Collar Clamp to Clamp as shown in Figure A ensure T-Bar after adjustrnent, as shown in Figure B Second: 730MM as shown in Figure D Lowest: 680MM as shown in... -
Page 13: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Change Wheel The wheels wear down with time and can be damaged if overly used on rough surfaces. The back wheel on which the brake is applied is particularly a ected after several hours of braking. In the interests of safety, they should be checked regularly and changed if necessary. -
Page 14: Safety Tips
Remove or Change collar clamp 1. Loosen the 2 screws (E) and (F) as shown on the picture (arrows). 2. Pull the collar clamp upwards and remove it. 3. Tighten the screws (E) and (F). SAFETY TIPS The scooter is a new fun piece of product which is safe when used carefully and correctly. - Page 15 No person, seller, distributor shall be allowed to modify or to supplement the terms and conditions of this limited warranty. HURFS56 HURFS38R HURFS42P HURFS49Y HURFS69G HURLEX HURLEZ SCOOTKID 3 WHEEL KIDS SCOOTER Child & Toddler Toy Scooter with Built-in LED Wheel Lights, Fold-Out Comfort Seat (Ages 1+) All models:...
- Page 16 FEATURES: • Mini Kick Scooter Fun • 3-Wheel Tricycle ‘Trike’ Style • Sit or Stand Kick Scooter Design • Lightweight, Compact & Portable • Convenient Fold-Out Child Comfort Seat • Multi-Color LED Wheel Lights Illuminate When Rolling • Removable Seat for Standard Scooter Riding •...
-
Page 17: What's In The Box
WHAT’S IN THE BOX: • (1)Scooter • (1) Simple Tools for Assembly TECHNICAL SPECS: • Construction Material: ALU + Nylon + PP + TPR + PU • Wheel Type / Wheel Material: Engineered Polyurethane • Recommended Age: 1 Year and Up •... - Page 18 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: cs@hurtleusa.com...
