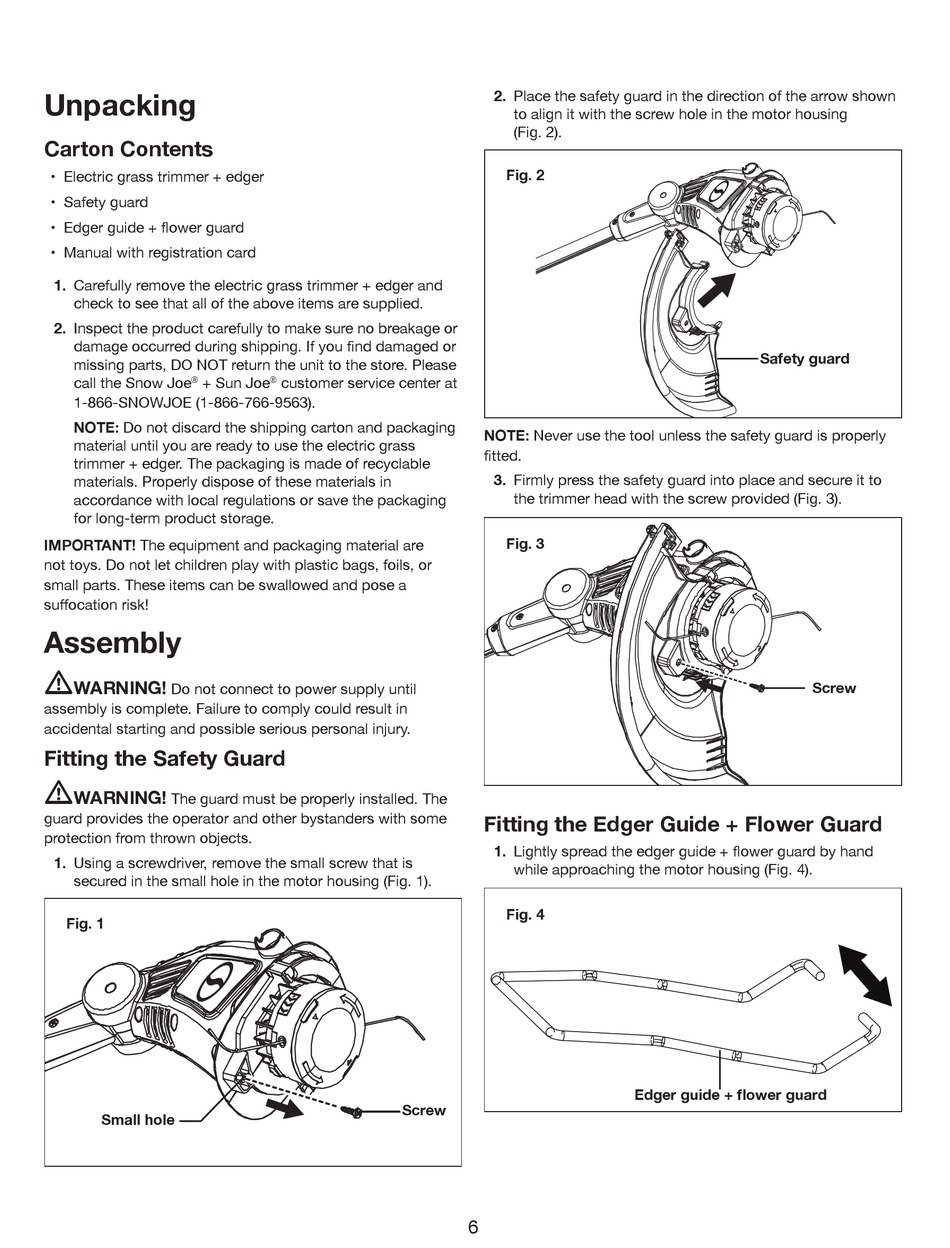

Unpacking

Carton Contents

• Electric grass trimmer + edger
• Safety guard
• Edger guide + flower guard
• Manual with registration card
1. Carefully remove the electric grass trimmer + edger and
check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe + Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the electric grass
trimmer + edger. The packaging is made of recyclable
materials. Properly dispose of these materials in
accordance with local regulations or save the packaging
for long-term product storage.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils, or
small parts. These items can be swallowed and pose a
suffocation risk!
Assembly
m
WARNING!
Do not connect to power supply until
assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.

Fitting the Safety Guard

m
WARNING!
The guard must be properly installed. The
guard provides the operator and other bystanders with some
protection from thrown objects.
1. Using a screwdriver, remove the small screw that is
secured in the small hole in the motor housing (Fig. 1).
Fig. 1
Small hole
customer service center at
®
Screw
2. Place the safety guard in the direction of the arrow shown
to align it with the screw hole in the motor housing
(Fig. 2).
Fig. 2
NOTE: Never use the tool unless the safety guard is properly
fitted.
3. Firmly press the safety guard into place and secure it to
the trimmer head with the screw provided (Fig. 3).
Fig. 3
Fitting the Edger Guide + Flower Guard
1. Lightly spread the edger guide + flower guard by hand
while approaching the motor housing (Fig. 4).
Fig. 4
Edger guide + flower guard
6
Safety guard
Screw
