STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA

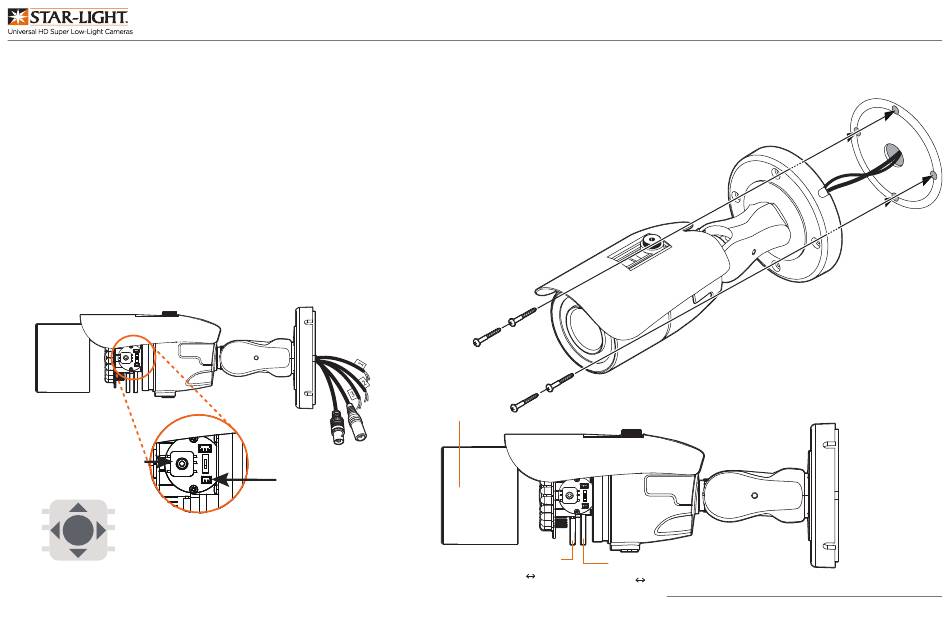

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Remove the camera's dome to access the joystick and OSD
control on the base of the camera.
b. Use the OSD Switch to switch the camera's signal.
• To switch the camera to HD-TVI mode, press OSD joystick to the
left for 5 seconds.
• To switch the camera to HD-Analog mode, press OSD joystick to
the right for 5 seconds.
• To switch the camera to CVBS mode, press OSD joystick
up for 5 seconds.
• To switch the camera to HD- CVI mode, press OSD joystick
down for 5 seconds.
R
U
L
CVBS(960H)
U
Enter
L R
HD-TVI HD-A
D
HD-CVI
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with
the camera to properly mount and secure the camera to the mounting
surface.
2. To adjust the camera's tilt, loosen the screws at the base of the
camera's bracket. The camera's max angles are:
Pan: 0°~ 360°
Tilt: 0°~ 90°
3. To adjust the camera's focus and zoom:
a. Remove the sun-shield and front case from the camera.
b. Unlock the zoom or focus screws by rotating them
counterclockwise.
c. Adjust the zoom and focus screws at the base of the
camera module to achieve a clear image.
d. Tighten the screws and close the front case
by rotating it clockwise.
D
Test video connector for
on-site configuration
Front Case
Front case
Focus Lever
Zoom Lever
Focus lever
Zoom lever
Far ↔ Near
Wide ↔ Tele
Far Near
Wide Tele
