PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ...
Page 3
FEATURES 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image.
Page 4
DIMENSION (mm) & POWER REQUIREMENT POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA Power Wire Maximum Distance COAXIAL CABLE TYPE MAXIMUM DISTANCE Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft RG59/ U 750feet 22 AWG 128ft 513ft 20 AWG 203ft 815ft RG6/U 1,000feet 18 AWG...
INSTALLATION AND ADJUSTMENT Included with DW Bullet Camera: User Manual Mounting Template Two Security L-Key Secondary BNC Cable for a Field Monitor Four (4) Screws and Four (4) Dry Wall Anchors...
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)
Page 9
FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
Page 10
PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default...
Camera TYPE Color / BW B1363TIR SPECIFICATIONS: Mount 3D Bracket Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.

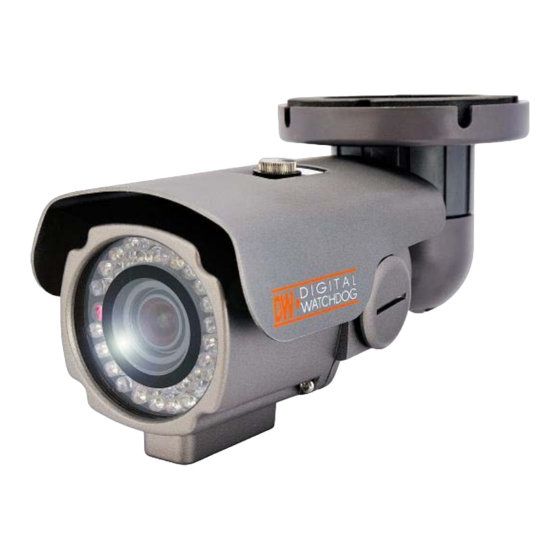

Starlight B1363TIR Bullet Camera User Manual Version #1: Camera without ICON Menu ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 11192010...
CAMERA SETTINGS SETUP [DC] - Brightness (DC Lens is recommended.) LENS Manual. Shutter is available. FLK (Flicker Free) SHUTTER ESC (Electronic Shutter Control) - Brightness Adjustment Manual Adjustment ATW 1800K ~10500K (ATW is recommended). WHITE BALANCE Manual Adjustment AWC (Auto White Balance) BACKLIGHT OFF / LOW / MIDDLE / HIGH NORMAL / HIGH / OFF (When the AGC is Off, DNR is not available.)
Page 15
Model B1363TIR (Day & Night) SPECIFICATIONS: Mount 3D Bracket Image Device 1/3" Super HAD CCD Pixels-Total 811(H) x 508(V) Pixels-Effective 768(H) x 494(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal 15,734Hz Mode Vertical Frequency Internal 59.94Hz Mode Min. Scene F1.5 0.3 Lux [TDN: 0.001 Lux] Illumination...
