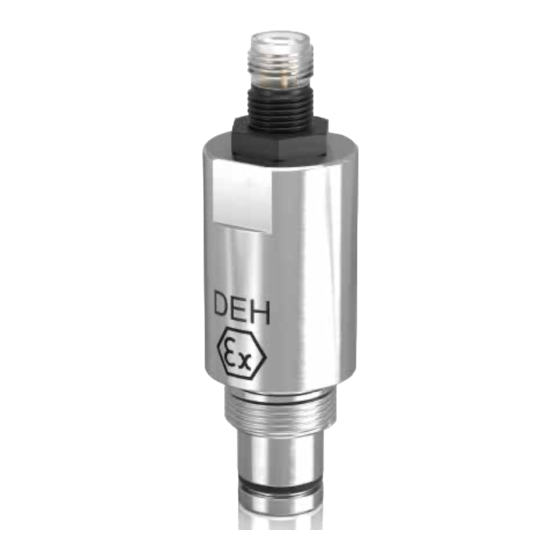

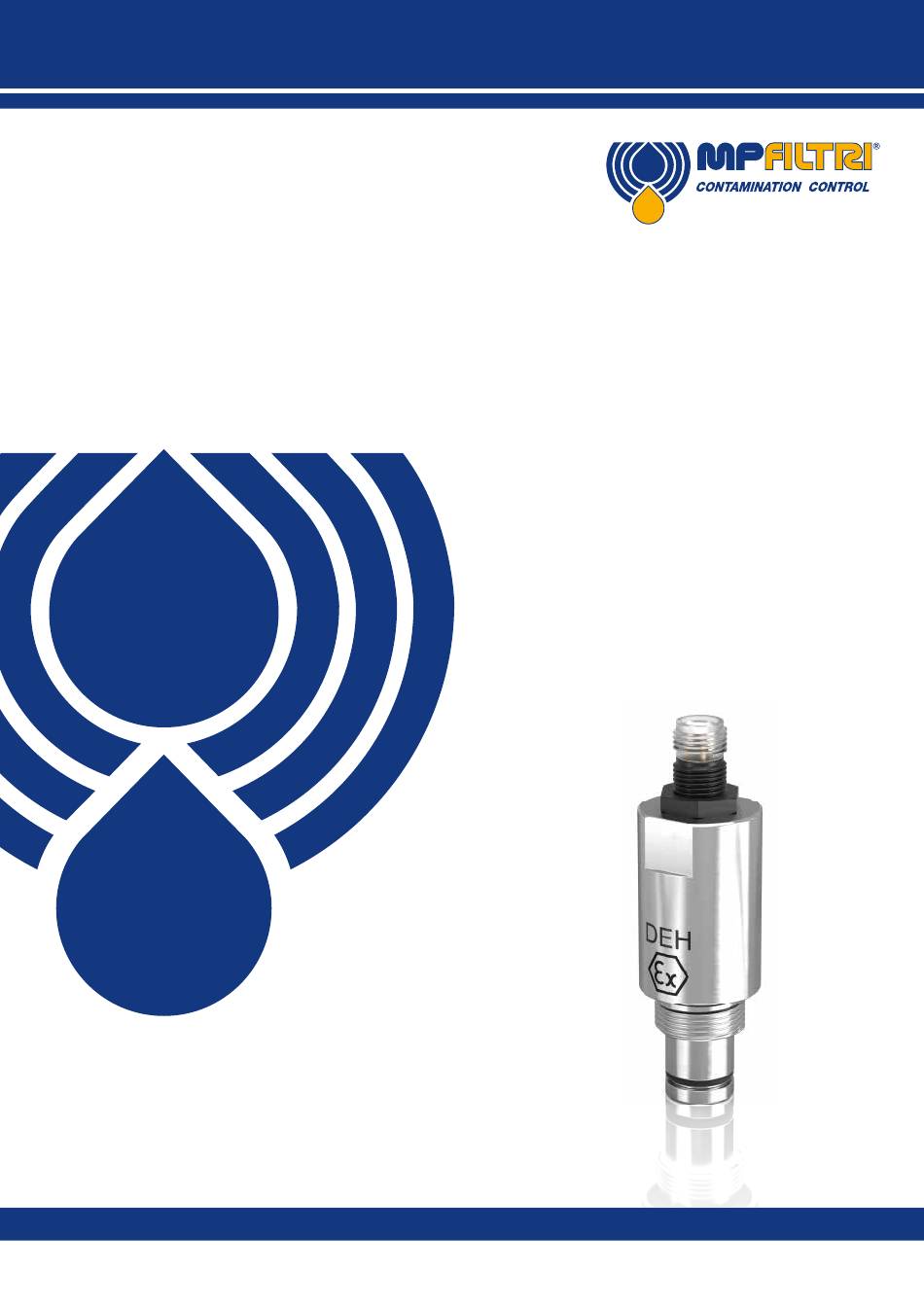

- Page 1 Operators Guide DEH Series Hazardous Area Differential Clogging Indicator Operators Guide...
- Page 2 Operators Guide...
-
Page 3: Product Overview
Suitable for a wide variety of applications from oil, sea and gas to industrial production plants, the indicators have been designed to prevent machinery failures, reduce unplanned downtime, and improve safety. Features & Benefi ts The new DEH series features three different models each with a distinct connection type. • Construction from AISI 316 Stainless steel •... - Page 4 Operators Guide...
- Page 5 • Improves safety Disclaimer As part of our policy of continual improvement, MP Filtri reserves the right to alter the specification without prior notification. Area of Application Hazardous Area Indicators can only be used in the appropriate zone classification. Ex d indicators should only be used in zones 1 and 2 - zones in which potentially explosive atmospheres created by gases, vapours or mists are unlikely to occur in normal operation.
- Page 6 Operators Guide...
-
Page 7: Ec Declaration Of Conformity
IEC 60079 - 11 2012 • UL 1203 • CAN/USA C22.2 No. 25-1966 • CAN/USA C22.2 No. 30-M1986 + 2:1988-11 • ISO 10771-1 Date: July 2020 Signed Phil Keep (Managing Director) on behalf of MP Filtri UK Ltd Operators Guide... -
Page 8: Table Of Contents
Page Product overview EC Declaration of Conformity 1 General warnings and information for the Operator 1.1 General safety warnings 1.2 Operator informations and Warnings 2 Warranty, Limitations and Disclaimers 3 Technical Specification 3.1 General Specification 3.2 Dimensions 3.3 Designation & Ordering code 3.4 Wiring Instructions 3.5 Temperature Range 4 Product Installation and Maintenance... - Page 9 TABLE OF CONTENTS Page 7 Servicing 7.1 General Information 7.2 Torque Values 7.3 Service Measures 7.4 Service Intervals 7.5 Seal Replacement 7.6 Removing the Clogging Indicators 7.7 Installing the Clogging Indicators Operators Guide...
-
Page 10: General Warnings And Information For The Operator
1 General warnings and information for the Operator 1.1 General Safety Warnings Do not operate, maintain or carry out any procedure before reading this manual. Any individual operating the unit shall wear the following Personal Protective Equipment: - Protective eyewear - Safety shoes - Gloves - Overalls (or other suitable protective clothing) - Page 11 GENERAL WARNINGS To allow rapid identification of the employees who must read this manual, definitions have been used with the following meaning: This is any individual whose task is to use the machine for production purposes. The operator is aware of all the measures taken by the machine manufacturer in order to eliminate any source OPERATOR of injury risk in the workplace and takes into account the operational constraints.
-
Page 12: Operator Informations And Warnings
1.2 Operator Information and Warnings • This pressure unit must only be operated in conjunction with the appropriate machine or system. • The pressure unit must only be used in strict accordance with the requirements of the operating instructions of the machine or system. •... - Page 13 GENERAL WARNINGS Operators Guide...
-
Page 14: Warranty, Limitations And Disclaimers
How to obtain service? To obtain service under the terms of this warranty, the customer is required to notify MP Filtri before the expiration of the warranty period and to return the item in accordance with MP Filtri product return policy. Any product returned for warranty repair must be accompanied by a full fault report specifying the symptoms and the conditions under which the fault occurs. - Page 15 The product is damaged in transit and a contributory cause is inadequate packaging. It is the customer’s responsibility to ensure that the packaging used to return equipment to MP Filtri is the same, or has equivalent protective qualities, to that used to ship the product to the customer in the first instance.
-
Page 16: Technical Specification
Seal material Various Temperature range See Section 3.5 -20 °C to + 100 °C (T4) Pressure setting 5 bar and 7 bar DEH SERIES - 5 METER CABLE INDICATOR Ex ia M20 PROPERTIES Housing material 316 Stainless steel Body shape Cylindrical Connection type M20 x 1.5 - 3 core polyrad cable supplied with 5 metres... - Page 17 TECHNICAL SPECIFICATION DEH SERIES - 5 METER CABLE INDICATOR Ex d 1/2” NPT / UL Class I Div 1 PROPERTIES Housing material 316 Stainless steel Body shape Cylindrical Connection type 1/2” NPT - 3 core polyrad cable supplied with 5 metres Temperature range -60 °C to +120 °C - ATEC, IECEx, TRCU, INMETRO...
-
Page 18: Dimensions
3.2 Dimensions DEH SERIES - 5 METER DEH SERIES - 5 METER DEH SERIES - 5 METER CABLE INDICATOR CABLE INDICATOR CABLE M12 INDICATOR Ex ia M20 Ex d 1/2” NPT Ex ia RESIN SWITCH M20 x 1.5 1/2” NPT 28 mm O.D. -
Page 19: Wiring Instructions
TECHNICAL SPECIFICATION 3.4 Wiring diagrams Wiring instructions are available in section 4.3 3.5 Temperature Range The maximum permissible operating temperature of the indicator is: T6 = 70°C for Exd. 80°C for Exia. T4 = 120°C for Exd, 125°C for Exia, 100°C for UL. If MFQ seals are used on the indicator, the lower temperature threshold can be dropped to -40ºC. -
Page 20: Product Installation And Maintenance
4.1 Correct Usage The electrical indicator is specifically designed for use with MP Filtri hydraulic pressure and in line filters, the indicator monitors differential pressure across the filter element. The indicators are made up of a certificated switch assembly in a type approved enclosure with a pressure connection that acts on a piston and spring assembly to operate a switch, the movement of this piston is governed by the deferential pressure across the element. -
Page 21: Wiring Instructions
DEH SERIES - 5 METER CABLE INDICATOR EX ia M20 Black White DEH SERIES - 5 METER CABLE INDICATOR EX d 1/2” NPT Black White Green DEH SERIES - 5 METER CABLE M12 INDICATOR EX ia RESIN SWITCH Brown Blue Black Operators Guide... -
Page 22: Suitable Operating Fluids
4.4 Suitable Operating Fluids For conductive filtration fluids, the conductivity must be greater than 10-10 S/m. The operating fluids used must be temperature resistant within the limits of the application. The sealing materials used must be resistant in respect of the operating fluids used. -
Page 23: System Requirements
PRODUCT INSTALLATION 4.7 System requirements Ex ia The electrical circuit in the hazardous area must be capable of withstanding an ac test voltage of 500v rms to earth or frame of the apparatus for one minute. The power source must be certified by an EEC approved body to Exia or Exib, whichever is applicable. -
Page 24: Certification
6. Reference Certification IS (Intrinsically Safe) Clogging Indicators are certified as “Simple Apparatus” and are suitable for use in IS circuits when supplied through a certified barrier. Please observe operating temperature of indicator assembly- the usable range is lower than the certification range of the electrical enclosure CAUTION 6.1 ATEX... -
Page 25: Ul/Csa
PRODUCT INSTALLATION 6.3 UL/CSA Ex d Certifi cate Number E364212 Manufacturing Standards UL1203 5th Edition and CSA C22.2 No. 30 & No.25 Temp Range -60°C to +100°C Rating Class I Div 1 Groups A, B, C, & D Class I Div 1 Groups A, B, C, & D Class II Div 1 Groups E, F, &... - Page 26 7. Servicing 7.1 General Information Servicing and maintenance work should be carried out periodically. The operational safety, longevity, and suitability for use of the indicator all depend on regular and careful maintenance. 7.2 Torque Values Indicator Body to Cavity Indicator Pressure Rating Torque Rating 420 bar 100 N∙m + 10 N∙m...
- Page 27 If the clogging indicator responds during a cold start only, it is possible that the element does not need to be changed yet. CAUTION Once the indicator is fitted, please refer to the appropriate operators guide/manual for the MP Filtri Stainless Steel Filter. Operators Guide...
- Page 28 The data and information contained in this publication are provided only for the purpose of information. MP Filtri reserves the right to make changes to the models and versions of the products described at any time, both for technical and commercial reasons.
- Page 30 Pessano con Bornago Milano - Italy +39 02 957031 sales@mpfiltri.it BRANCH OFFICES ITALFILTRI LLC MP Filtri India Pvt. Ltd. Moscow - Russia Bangalore - India +7 (495) 220 94 60 +91 80 4147 7444 / +91 80 4146 1444 mpfiltrirussia@yahoo.com sales@mpfiltri.co.in...
