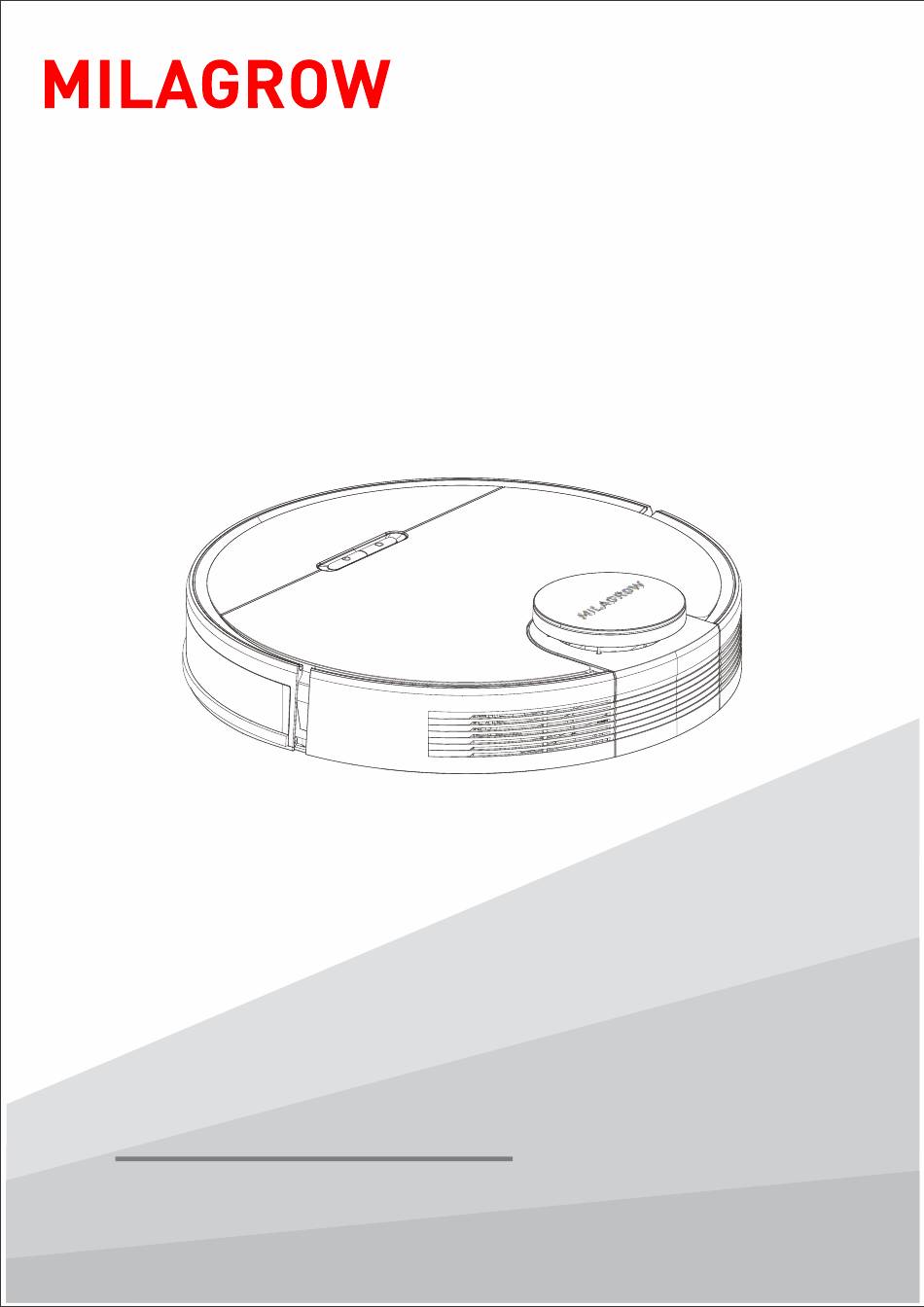

- Page 1 iMap 10.0 Robotic Vacuum Cleaner User Manual Thank you for purchasing this Robot. Please read the user guide carefully before use.
-
Page 2: Table Of Contents
10.0 Thank you for purchasing the Milagrow iMap 10.0 Intelligent Robotic Vacuum Cleaner. We hope you will enjoy it! If you have any questions about the product during use, please call our service Number 9953476189 or email customercare@milagrow.in Table of Contents 1. -
Page 3: Safety Instructions
The user shall not replace the batteries privately. original batteries sold by Milagrow are to be used Prevent clothing or any part of your body (hair, fingers, etc.) from getting caught in the brush or wheel of the vacuum cleaner. Failure to do so may result in personal injury. -
Page 4: About Child Safety
iMap 10.0 Caution This product can only be Prevent the suction of Arrange scattered wires Remove fragile objects used indoors. water, oil or other liquids, on the floor before use before use. which may damage the for fear of affecting vacuum cleaner. -
Page 5: About The Batteries
10.0 1.4 About the batteries 1.Only the batteries provided by the Milagrow are applicable to the product. 2.The batteries should be removed when the product is discarded. 3.If you need to replace the battery of the host machine, please contact our after-sales service department. -
Page 6: Robot Overview
iMap 10.0 2. Product Overview 2.1 Robot and its accessories Robot Recharge button • Press to return for charging. Press again to pause • Press and hold for 3 seconds to start Spot Cleaning Sweep/on/off button • Press and hold for 3 seconds to turn on or off (if it's not being charged) •... -
Page 7: Robot And Dust Box
iMap 10.0 2.2 Robot and dust box Dust box and water tank Wi-Fi indicator: Blinking slowly in white: Wait for connection Blinking fast in white: Being connected to Wi-Fi Normally on in white: Wi-Fi connected System reset button Button for taking out dust box and water tank Water inlet Water inlet cap Combination of water tank... -
Page 8: Robot And Its Sensors
iMap 10.0 2.3 Robot and its sensors Collision bumper Along-wall sensor Pressure sensor Lidar module Anti-drop sensor Charging electrode Side brush Caster Rolling brush Rolling brush cover Caster Water outlet 2.4 Mop module Buckle Water outlet Buckle Washable Stick a mopping Slot Removal button mopping cloth... -
Page 9: Charging Dock
iMap 10.0 2.5 Charging dock Charging dock indicator Normally on in white: The charging dock has been connected to a power supply (when the robot is not charging on the charging dock) White light off: The robot is correctly connected with the charging dock Status indicator Charging electrode Power cord take-up bin... - Page 10 iMap 10.0 2. Based on your personal needs, decide whether to install a waterproof pad. After installation, connect the adapter to the wall socket and keep the power Waterproof pad (optional) 3. Place the charging dock on a flat hard ground perpendicular to a wall and keep it clear of obstacles within 1.5 meters in front of it and within 0.5 meters on its left and right.
- Page 11 iMap 10.0 Note: * You may not be able to start the robot when the battery is low. Please fully charge it and try again. * To ensure the service life of the battery, please charge and discharge at least once every six months.
- Page 13 iMap 10.0...
-
Page 14: Select Suction Intensity
iMap 10.0 3’ C. Area-specific Sweep (only in-app operation supported) * Select Zone in the app and set a sweep area. The robot will sweep this area only and return to the charging dock after sweep. Note: * Area-specific Sweep can only be started after a map is created. D. -
Page 15: Use Of Mop Module
iMap 10.0 4.4 Use of mop module ① Install the charging dock on the waterproof pad (optional). ② Take out the water tank and add water. ③ Wet your mopping cloth before mopping, install the mopping cloth on its holder, and then install the holder to the robot bottom. (In order to ensure mopping results, the robot obstacle-crossing performance will be reduced after the mopping cloth is put in.) ④... - Page 16 iMap 10.0...
-
Page 17: Map Management
10.0 4.5 Map management RT R Map your rooms in real time with Milagrow Real Time Terrain Recognition Technology RT R * Real-time mapping helps you easily understand the sweep route and environment. After sweep, a floor plan of your rooms will be generated. Maps will be updated in real time during each sweep to ensure normal navigation. -
Page 18: Maintenance
iMap 10.0 5. Maintenance 5.1 Cleaning the robot dust box and water tank A. Open the robot top cover and remove the combination of dust box and water tank. Remove the filter module. B. Empty the dust box. Put the dust box against a dustbin, tap the box to knock off excess dirt. - Page 19 iMap 10.0 D. Press the release button of dust box to separate the dust box from the water tank. E. Flush the water tank, dust box and filter module thoroughly with water as necessary (Note: Filters shall not be cleaned with hot water or detergent).
-
Page 20: Clean The Main Brush
iMap 10.0 G. Reassemble the air-dried water tank, dust box and filter module, and install them back into the machine. 5.2 Clean the main brush A. As shown in the following figure, press down the buckle to take out the protective cover, and take out the rolling brush upwards. -
Page 21: Clean Casters
iMap 10.0 5.4 Clean casters Hair or dust particles tend to be entangled around casters. Clean the them regularly or as needed. A. Pull up casters to take them out. B. Clean any hair or sundries entangled around casters or in any caster chamber. -
Page 22: Basic Parameters
0.45L Watertank 0.5L Working time 200 minutes Milagrow reserves the right to make any technical or design changes to the product due to continuous product improvement needs without prior information. The right of final interpretation belongs to our company. ■ Names and contents of harmful substances in the product... -
Page 23: Common Faults
iMap 10.0 7.Common Faults 7.1 Voice prompts When the robot fails, the red indicator on the robot will blink and relevant voice prompts will be heard. Follow the voice prompts to resolve your problem. Voice Prompts Solution The collision bumper is stuck. Please tap repeatedly to Error 1: Collision bumper remove foreign matters. - Page 24 iMap 10.0 Voice Prompts Solution Error 12: The right along- The right along-wall sensor is blocked. Please wipe it. wall sensor is blocked. Please wipe it. Error 13: The machine is tilted. Please put the The machine is tilted during startup. Please put the machine on the horizontal machine on the horizontal ground to start.
- Page 25 iMap 10.0 Voice Prompts Solution Please open the battery compartment, check whether the battery is properly connected, and try to restart the robot. Error S1: Battery abnormal. Please consult the The battery temperature is too high or too low. Please wait for the battery temperature to be normal (0℃~40℃...
-
Page 26: Troubleshooting
iMap 10.0 7.2 Troubleshooting When any abnormality occurs to the robot in operation, the power indicator will blink fast in red and voice prompt will be provided. Please consult the following table for troubleshooting. Fault Solution Make sure the robot is connected to power supply. Cannot start the robot Make sure the battery is fully charged. -
Page 27: Faults In Wi-Fi Connection
iMap 10.0 Fault Solution Clean the rolling brush. The rolling brush does Check whether the rolling brush and the brush cover are not rotate installed correctly. Abnormal action or sweep Carefully clean the sensor with dry cloth. route of the machine Restart the machine. - Page 28 iMap 10.0 Note: * Before setting up Wi-Fi, ensure that the machine and your Wi-Fi network meet the following requirements. Wi-Fi setup requirements: A. Machine: * Machine fully charged. * Wi-Fi status indicator white and flashing slowly. B. Wi-Fi network: * Use the correct wireless network password.
-
Page 29: Warranty Card Ii
iMap 10.0 Warranty Card II User Name Address Tel. Postal code Product model Purchase date Invoice number Warranty period Product warranty description: 1. From the date of the user’s purchase of this product, the warranty period is one year for the host machine, and six months for the adapter, rechargeable batteries and other accessories.
