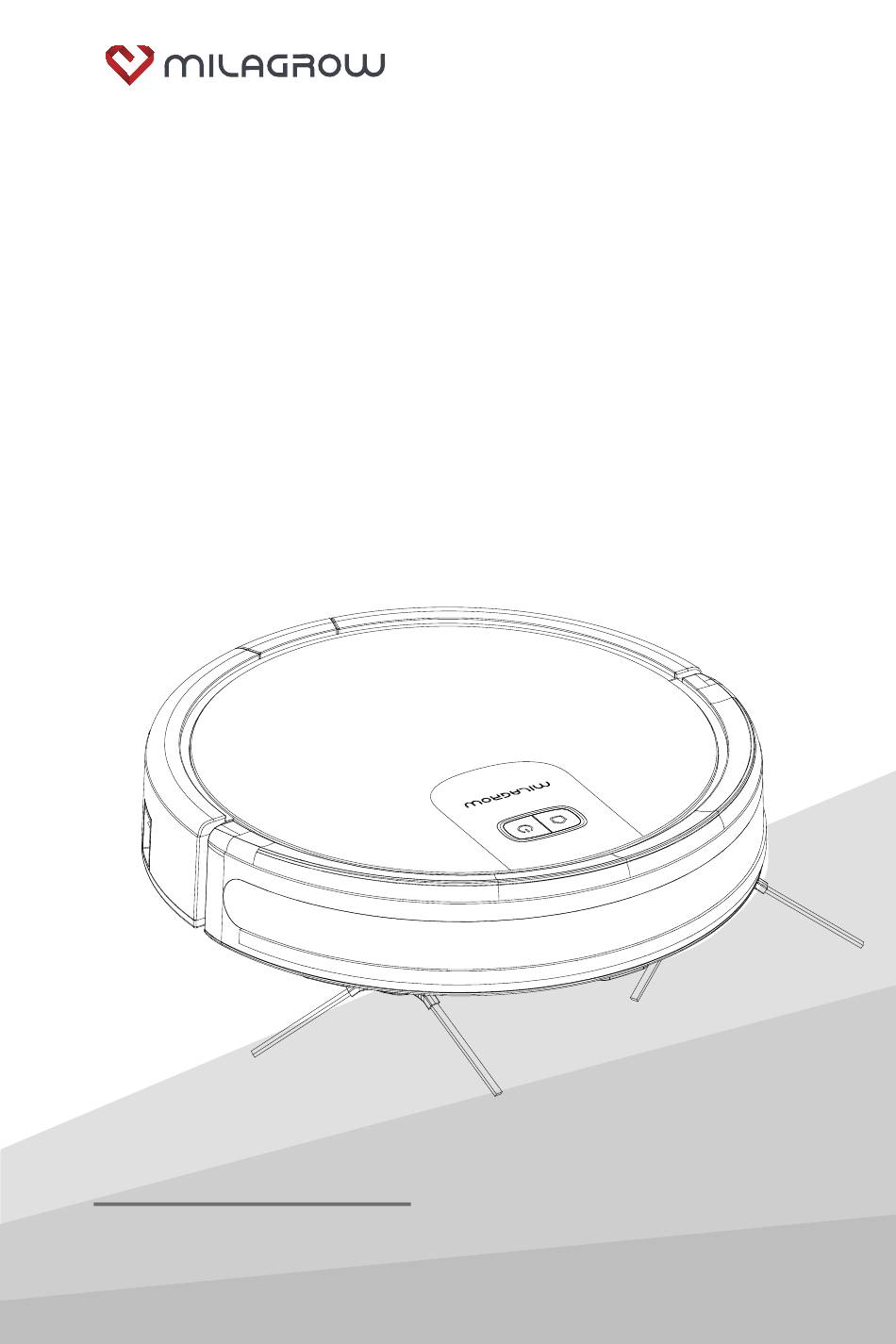

- Page 1 BlackCat 21/RedHawk 21 Robotic Vacuum Cleaner User Manual Thank you for purchasing this product. Please read the user guide carefully before use. A0 Sep 14 2020...
-
Page 2: Table Of Contents
BlackCat 21/RedHawk 21 Thank you for purchasing the BlackCat 21/RedHawk 21 Robotic Vacuum Cleaner. We hope you will enjoy it! If you have any questions about the product during use, please call our service number 9953476189 or e-mail customercare@milagrow.in Table of Contents 1. -
Page 3: Safety Instructions
BlackCat 21/RedHawk 21 1. Safety Instructions 1.1 Instructions for use Please pay attention to the following basic safety precautions before using the product: * Read the user manual carefully and follow the instructions in the user annual when using the product. -
Page 4: About Child Safety
BlackCat 21/RedHawk 21 Caution This product can only be Prevent the suction of Arrange scattered wires Remove fragile objects used indoors. water, oil or other liquids, on the floor before use before use. which may damage the for fear of affecting vacuum cleaner. -
Page 5: About The Batteries
BlackCat 21/RedHawk 21 1.4 About the batteries 1.Only the batteries provided by the manufacturer are applicable to the product. 2.The batteries shall be removed when the product is discarded. 3.If you need to replace the battery of the host machine, please contact our after-sales service department. -
Page 6: Product Composition
BlackCat 21/RedHawk 21 2. Product Composition 2.1 Host machine and accessories of the product Host machine×1 Charging dock×1 Power adapter×1 Edgewise sweep × 2 Cleaning brush×1 Filter combination×1 BlackCat 21/RedHawk 21 Robotic Vacuum Cleaner User Manual Mop ×1 Water tank ×1 Thank you for purchasing this product. -
Page 7: Names Of Parts
BlackCat 21/RedHawk 21 2.2 Names of parts Front view of the machine Dust box Front cover Control key Front shell Signal window Bottom view of the machine Charging pole pieces Floor inspection device Front wheel Side brush Left wheel Right wheel... -
Page 8: Product Installation
BlackCat 21/RedHawk 21 3. Product Installation 3.1 Charging dock installation High voltage! Please dry your hands before operation for fear of electrical shock! Power adapter jack Charging terminal 1. Place the charging dock on a flat surface that is perpendicular to the wall. There shall be no obstacles within 3 meters in front and 1 meter on the left and right. -
Page 9: Product Use
BlackCat 21/RedHawk 21 4. Product Use 4.1 Use of the host machine 4.1.1 Diagrams of control keys Control Keys Power key Recharge key 4.1.2 Working mode: 4.1.2.1 Manual mode 1. Make sure that the batteries of the 1. Make sure that the batteries of the 2. - Page 10 BlackCat 21/RedHawk 21 4.1.3 Operation guide f or key indicating light State Display Operation 1. Hav e a long pressing of the key f or 3 seconds, and release it Of f Light of f when a beep is heard.
-
Page 11: Charging Method
BlackCat 21/RedHawk 21 4.2 Charging method 4.2.1 Manual charging: 4.2.1 High voltage! Please dry your hands before operation for fear of electrical shock! 1. Use the charging dock for charging: 2. Charging by APP control: First connect the power adapter with the charging Connect APP and robot, then press "charge"... - Page 12 BlackCat 21/RedHawk 21 4. 4 Use of Wet Mop Assembly 1. Lift the water tank cap up (the end with an arrow) and turn left or right, add water and place the cap back; 2. As illustrated, insert the front pocket of wet mop into the buckle at the front of water tank;...
- Page 13 BlackCat 21/RedHawk 21 4.4.1 Installation of water tank: 1. Turn the machine upside down to the bottom, and match the buckle of water tank with the snap-on position on the machine; 2. After the machine is placed normally, operate it normally for sweep.
- Page 14 BlackCat 21/RedHawk 21 4.5 Use of Magnetic boundary strip Attention pls！Always put the magnetic boundary strip FLAT on the ground to make it effective.Cut off the extra length when need. Magnetic boundary strips Use the Magnetic Boundary strips to quickly and easily create “no-go zones”...
-
Page 15: Product Maintenance
BlackCat 21/RedHawk 21 5. Product Maintenance Tip: Please clean and maintain the vacuum cleaner regularly according to the use conditions. 5.1 Clean the charging pole pieces Charging pole pieces 1. Please turn off the power switch or unplug the power cord first. - Page 16 BlackCat 21/RedHawk 21 5.2.2 Clean the dust box 1. Open the dust box cover and pour out the dust. 2. As shown above, use a cleaning brush to clean Advice: Clean the dust box every three days at first for the new machine, and clean it once a week subsequently.
-
Page 17: Clean The Middle Sweeper
BlackCat 21/RedHawk 21 5.3 Clean the middle sweeper 5.3.1 Remove the middle sweeper 1. As shown in the figure, push the lock lever to 2. Grab the middle sweeping brush and lift it up. the middle, and lift it up. -
Page 18: Clean The Side Brush
BlackCat 21/RedHawk 21 5.4 Clean the side brush 1. Use a screwdriver to remove 2. Remove the side brush and the screws from the side brush. clear away the hair and other rubbish on the side brush. Then clear away the entanglements in the slot of the side brush. -
Page 19: Troubleshooting
BlackCat 21/RedHawk 21 6. Troubleshooting Fault indication by Fault name Fault description Solution light flashing The red light flashes The left wheel does not rotate, Please check whether the left wheel twice, and 1 beep can be Left wheel fault as the left wheel is overloaded. -
Page 20: Technical Parameters
BlackCat 21/RedHawk 21 7. Technical Parameters Functional parameters of the host machine Functional parameters of accessories Power adapter Operating voltage 14.4 V Rated power 24 W Output Voltage Battery Lithium battery Output Current 600mA Charging dock Battery capacity 2600mAh Charging Time... - Page 21 BlackCat 21/RedHawk 21 ■ Names and contents of harmful substances in the product Harmful Substances Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Component Name chromium biphenyl diphenyl ethers (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) Shell component 〇 〇 〇 〇...
- Page 22 BlackCat 21/RedHawk 21 Warranty Card II User name Address Tel. Postal code Product model Purchase date Invoice number Warranty period Product warranty description: 1. From the date of the user’s purchase of this product, the warranty period is one year for the host machine, and six months for the adapter, rechargeable batteries and other accessories.
