2. Control modes

2.1. Controlling the sound unit by the 12-position encoder

The most comfortable way of controlling the sound unit is using the socalled "12-position
encoder". It consists of a 12 position rotary switch in combination with a push button. The
desired sound is selected by the rotary switch and is triggered by the push button.
The encoder must be mounted in your transmitter and must be connected at a unused proportional
channel.
The encoder must be ordered separately!
After installation you should test the encoder by a common servo at the according receiver
channel. Keep the encoder push button pressed and move the rotary switch through all positions.
The attached serve must move to a new position at each rotary switch position. The total
movement of the servo should be about the same as at the normal joystick channels set to 100%.
The receiver encoder channel must be connected to
The installation of the encoder in your transmitter is on your own risk
Proper functionality is not guaranteed at ALL transmitter brands / types
Rotary switch for
sound selection
Soundmodule TBS Micro V2.0
Prop3
trigger switch

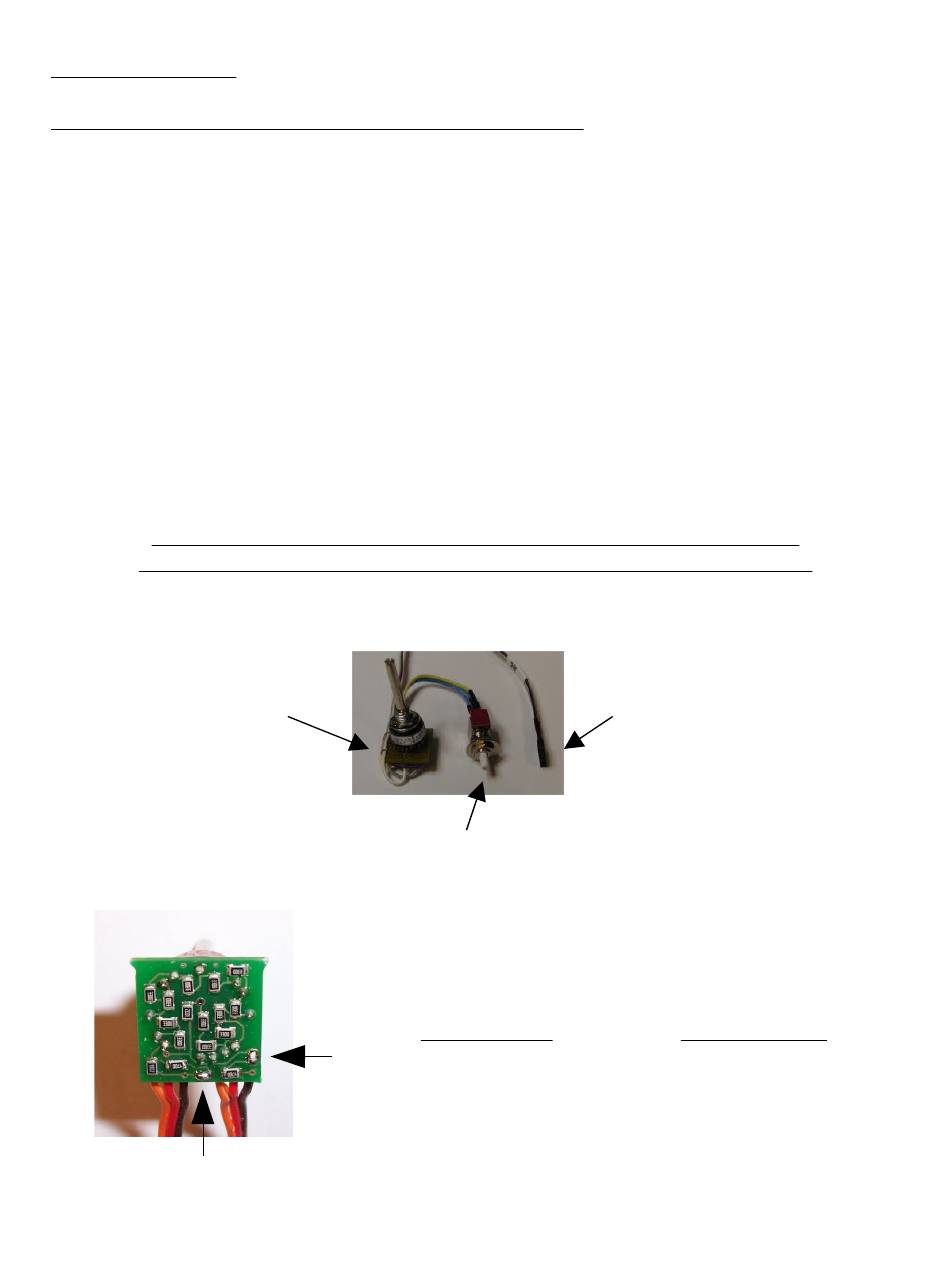

The total resistance of the encoder can be
adjusted to your TX by two solder bridges at
the rear side of the encoder pcb:
BOTH bridges
open
KOhm
closed
KOhm
of the TBS Micro.
Connect to an
unused channel.
Total resistance
app. 22
app. 5
