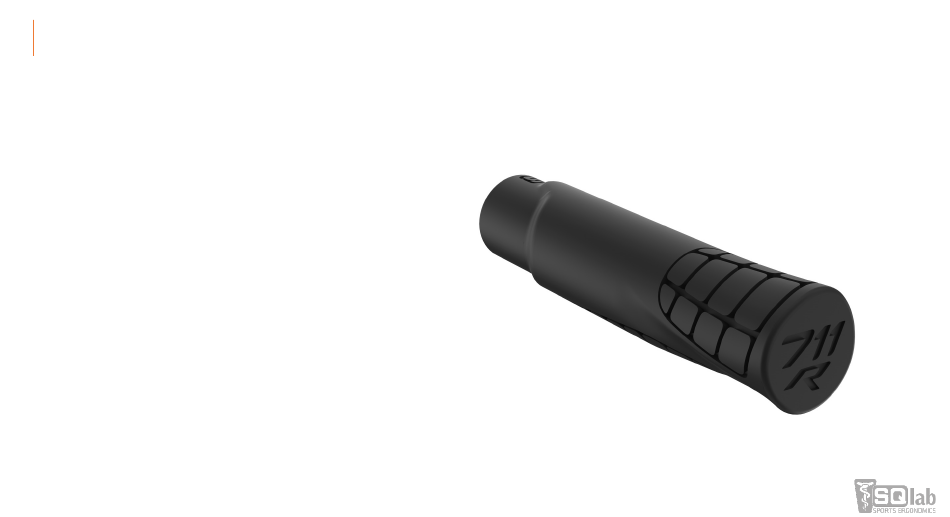

711 R Assembly Instruction

The 711 R is the lightest ergonomic grip on the market (59g). This is

made possible by dispensing with the clamp and the inner sleeve.

The rubber material must therefore be so tight that slipping is no

longer possible and no moisture can penetrate. This also explains

why the 711 R grip is completely closed, making installation a little

more complicated than with our existing grips. With a few tips and

tricks, however, this is easily done by anyone.

What's needed?

A clean handlebar mounted on the bike with enough space

to the Innerbarends® or the brake (at least length of the

grip), a brake cleaner, a pair of rubber gloves, safety glasses

(bike goggles are sufficient), a needle and the 711 R grip.

Need help?

Do you have a question about the 711 R and is the answer not in the manual?

Page 1 711 R Assembly Instruction The 711 R is the lightest ergonomic grip on the market (59g). This is made possible by dispensing with the clamp and the inner sleeve. The rubber material must therefore be so tight that slipping is no longer possible and no moisture can penetrate.
Page 2 Edge of the hand. Check the general 711 R position, as turning the 711 R when mounted is only possible for a few seconds. You should also note that the left handlebar grip is on the left side of the handlebars and the right handlebar grip is on the right side of the handlebars.
Page 3 Step: The Assembly Step: The Alignment Put on gloves and safety goggles and spray sufficient brake If you have successfully mounted the first grip, repeat this cleaner into the grip and onto the handlebars. Caution! for the second grip. But now press on the outside of the 711 Please follow the instructions for use of the brake cleaner R handle during assembly so that no overpressure occurs.
Page 4 Step: If Required Step Sometimes an overpressure can form on the outside of the Wait about 10 minutes until the brake cleaner has grip, causing the grip to bulge outwards. This occurs evaporated. because the air cannot escape through the closed grip. You must get rid of this pressure! To do this, take a thin needle and prick the middle of the outside of the grip, thus allowing the air to escape.
