4. Installation of the Digital Multi Control panel
To install your DMC you will need:
1) One UTP (Unshielded Twisted Pair) cable with two RJ45 connectors (to connect to a Multi or
Quattro) available in 5, 10, 15, 20, 25 and 30 meters.
2) When the Generator support functionality (see paragraph 3.1) of the DMC is used you will also
need two wires for connecting the DMC to the transfer switch. This connection can be made by
using 2 wires of 0.25 – 1.0mm².
Refer to the transfer switch manual for more information.
3) There are no special requirements to build in the Digital Multi Control Panel
4.1 Bus cable
To connect the DMC to a Multi or Quattro use a standard straight UTP cable with RJ45
connectors.
Note: In case of a non VE.Bus parallel system connect the DMC to the master Multi.

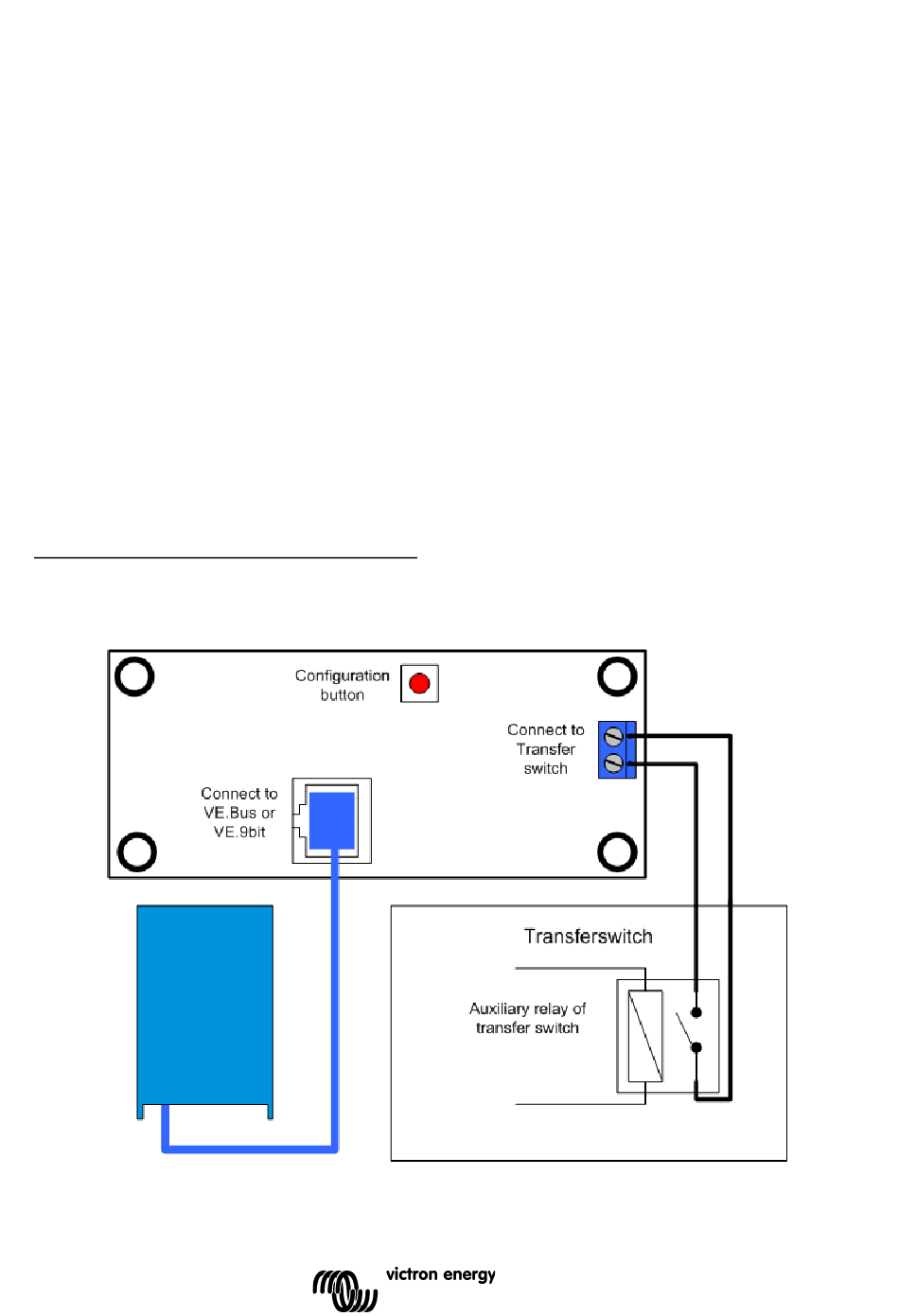

4.2 Transfer switch wiring
Only when an external transfer switch is used one has to connect a switch to the screw connector
on the back of the DMC. When the switch is open the current limit is controlled by the knob on the
front of the DMC. When the switch is closed the DMC sends the preset generator current limit to
the connected devices. This switch is normally controlled by your shore/generator transfer switch.
