6. Configuring the Digital Multi Control panel
This chapter describes the configuration parameters and procedure.
6.1 Procedure
During configuration 6 parameters can be set. The configuration procedure is straight forward.
- To enter the configuration mode press the button on the back of the DMC until the bottom
LED in the left column starts flashing, indicating that the first parameter can be changed.
- To change the value of a parameter, turn the knob until the displayed value is as required.
- Press the button to advance to the next parameter.

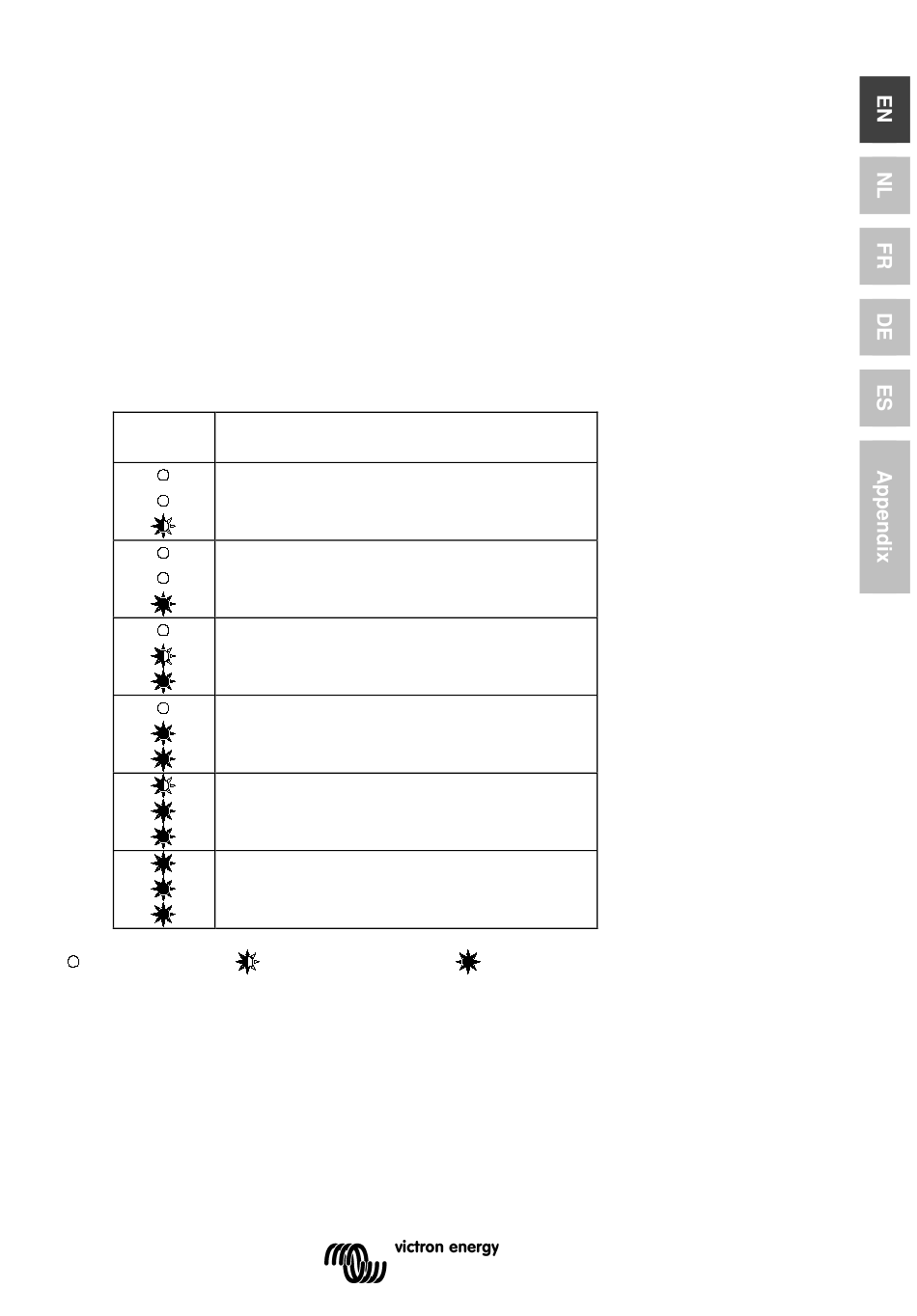

The lower three LEDs in the left column on the DMC indicate which parameter is being
adjusted according to the table below:
LED
Selected parameter
indication
Scaling factor. default:0, range:0-9
(this parameter is ignored when using
VE.Bus devices)
Generator current limit in Amps.
default:16, range:0..198
Upper shore limit for AC input 1 in Amps.
default:254, range:0..254
Upper shore limit for AC input 2 in Amps.
default:254, range:0..254
Upper shore limit for AC input 3 in Amps.
default:254, range:0..254
Upper shore limit for AC input 4 in Amps.
default:254, range:0..254
means LED is off,
Notes:
- The connected Multis or Quattro's switch to "Inverter only" when the configuration button is
pressed and during configuration mode.
- Pressing the button when the last parameter of the table is selected will end configuration mode
and activate all parameters. So even if only one parameter needs to be adjusted you have step
through all parameters to exit the configuration mode.
means LED is blinking,
means LED is on
9
