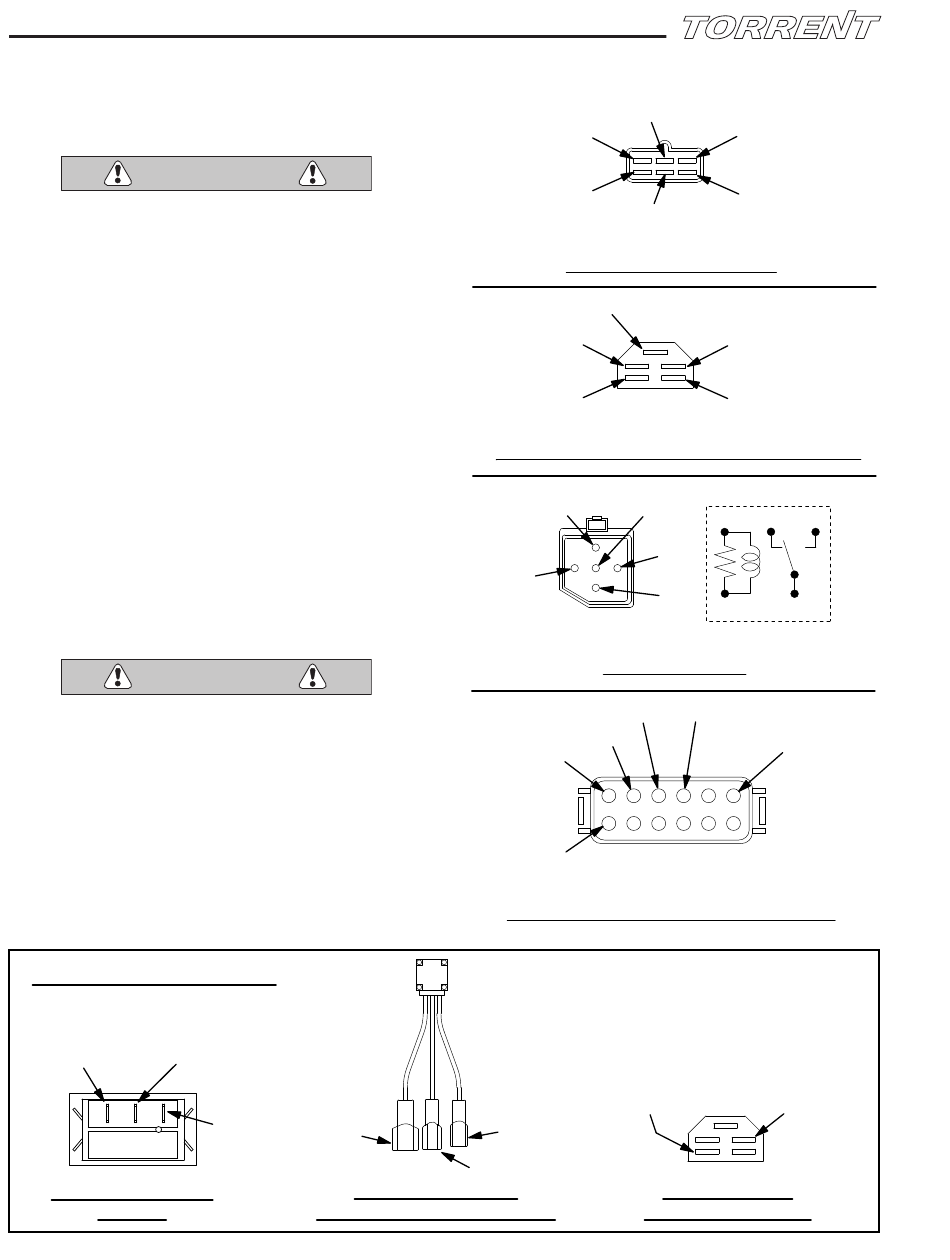

Electrical System Schematic; Connector To Engine; Connector To Engine Ignition Switch; Relay Sockets - TURFCO Torrent Operators Manual & Parts Lists

Towed debris blower

Hide thumbs

Table Of Contents

Table of Contents

Before servicing the electrical system, check the

following:

WARNING

TO AVOID SERIOUS INJURY

And To Avoid Damage To The Blower Electrical

Components,

DISCONNECT THE BATTERY CABLES Before

Servicing the Electrical System.

● Ensure that the battery is fully charged and

supplying the proper voltage (12 Volt DC negative

[-] ground). The problem may be a weak battery.

● Check the polarity at the battery. Red wire is positive

(+), black wire is ground (-).

● Check the condition of the battery cables. Check

the ground point on the engine for loose or corroded

wire.

● Check the fuses in the control tower. Proper fuses

are 15 AMP and 25 AMP, type ATO/ATC. Also check

the 30 AMP fuse in the engine wiring harness.

● Check the condition of the batteries in the handheld

remote. Check that the remote is in contact

(associated) with the receiver.

WARNING

TO AVOID SERIOUS INJURY

Read and Understand the Safety Warnings

Supplied By the Truck Battery Manufacturer

and Printed On the Battery.

WEAR SAFETY GOGGLES. Batteries Contain Acid

Which Can Cause Sever Burns To the Eyes and

the Skin. Batteries Emit Explosive Gases, Avoid

Sparks and Open Flames.

AUXILIARY CONTROL PANEL

BLUE

YELLOW

WIRES

NOZZLE ROTATION

SWITCH
